Rear Bumper Reinforcement: Service and Repair

Rear bumper rail

Operation number: 86131-3

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the bumper Refer to: Cover bumper rear Service and Repair

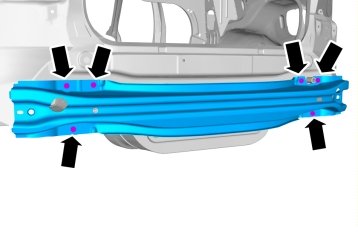

Torque: M10, 50 Nm

Installation

To install, reverse the removal procedure.

Follow the instructions regarding corrosion protection Refer to: Rustproofing
