Radio, Stereo, and Compact Disc: Service and Repair

Satellite radio





















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Satellite radio

Note! This accessory requires software unique to the car.

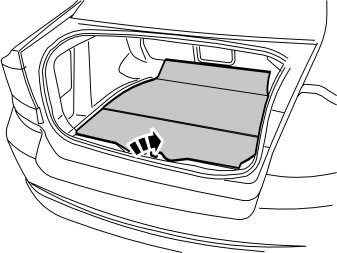

- Lift out the cargo compartment carpet.

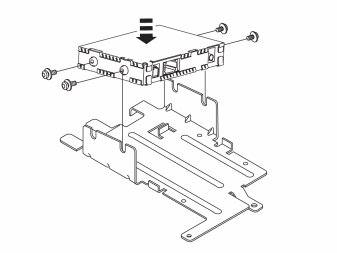

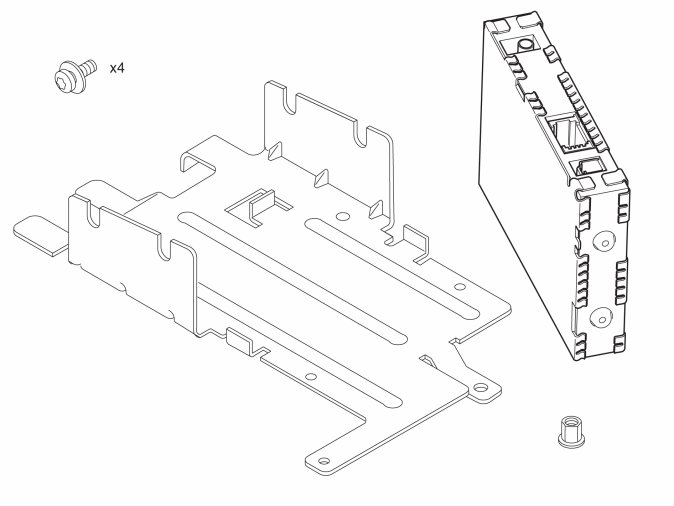

- Install the Sirius unit on the bracket with four screws and washers from the kit.

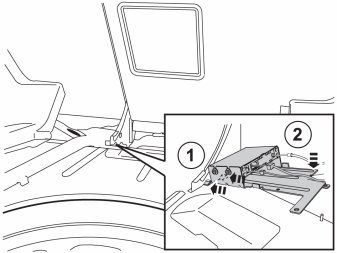

- Insert the two legs of the bracket in the corresponding recesses in the backrest bracket and lower it over the retaining pin in the floor.

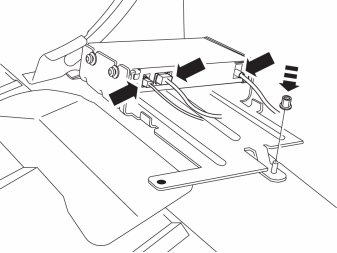

- Secure the bracket using a plastic nut from the kit.
- Plug the connectors of the pre-routed cables into the Sirius unit. The pre-routed cables are located near the bracket.




- Reinstall the cargo compartment carpet.




- Program the software as required. Programming and Relearning
