AUX Service Cable

AUX service cable

Operation number: *

Note! Some variation in the illustrations may occur, but the essential information is always correct.











Removal

Note! Removal steps in this procedure may contain installation details.

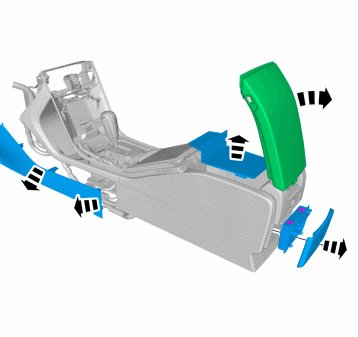

Remove general audio player Refer to: General audio player module General Audio Player Module

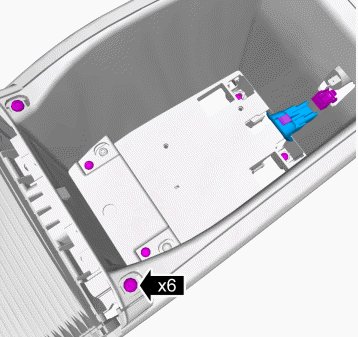

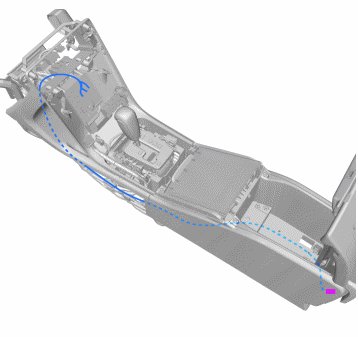

Install the new cable in the AUX-outlet. Then reinstall the AUX-outlet. Secure the existing AUX-cable so that no rattling is generated.

Caution! Make sure that the cable is not trapped or damaged.

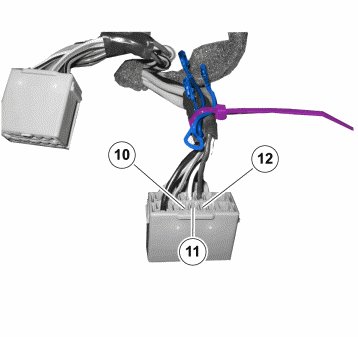

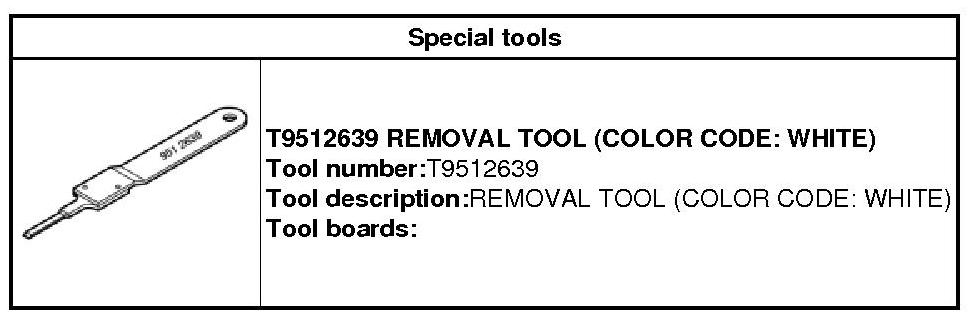

Remove the cables 10, 11, and 12.951 2639 Terminal removal tool 951 2639 Terminal Removal Tool
Install the cables.

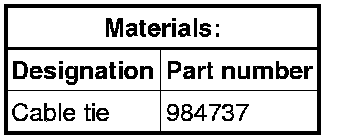

Use: Cable tie, 984737

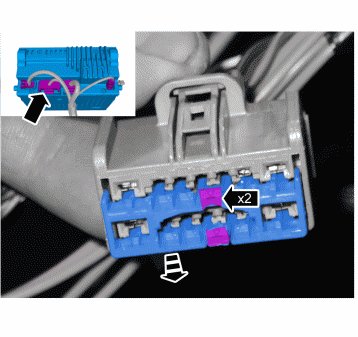

Install the service cable according to markings on the terminals.

Installation

To install, reverse the removal procedure.
