Home >> Volvo >> 2009 >> S80 AWD L6-3.0L Turbo VIN 99 B6304T2 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Rear Vision Camera >> Service and Repair >> Park Assist, Camera >> Part 3

Part 3












Park Assist, camera (Continued)

Steps 70-71 only apply to cars with adapter cable B for the power supply




- Route the long ground lead in the adapter cable to the right-hand side of the rear harness.

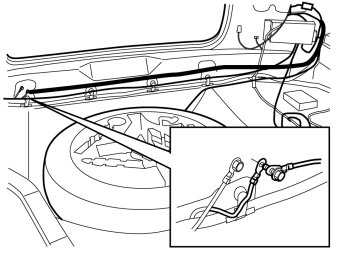

- Connect the cable to the lower of the ground screws and tighten the screw with 10 Nm (7.5 lb.ft.)




- Wash the rear crossmember using isopropanol where the ground lead is to be taped. Wipe dry.

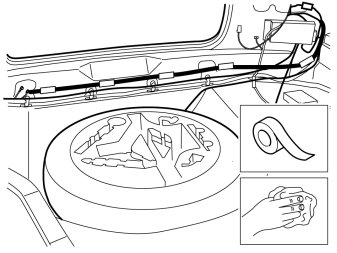

- Secure the cable using a wide piece of silver/fabric tape or similar.

Note! The ground lead must only be taped at the rear crossmember, it must not be secured by the thick cable harness.

Applies to all models

Illustration A

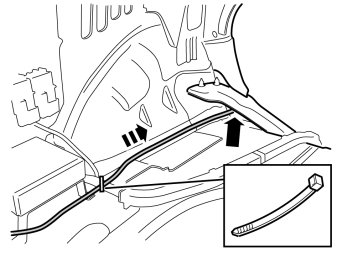

- Route the previously connected cable harness inside the insulation panel at the left-hand rear wheel arch and out through the hole in the body.
- Take a tie strap from the kit and secure the cable at the fuse holder's cable harness.

Illustration B




- Pull out the B post panel at the lower edge until the two clips release.
- Continue to route the cable harness inside the B post panel and forwards in the car. Route the cable harness along the left-hand side, in front of the floor and insulation panels, up to the front edge of the door opening.

Illustration C




- Route the cable harness inside the floor and insulation panels, up on the A post slightly, and then at an angle upwards, in through the lower hole behind the end panel, towards the dashboard. Route the cable harness to the location for the screen in the dashboard.
- Place the cable harness so that it does not come into contact with sharp edges or moving parts under the dashboard.





Applies to right-hand drive cars
- Take a piece of wire and insert it by the air ducts through the hole for the screen. Pull it out to the left, above the glove compartment and out through the left-hand end of the dashboard.
- Tape the connector on the cable to the screen by the wire.
- Pull the cable up to the location for the screen and out through the hole in the dashboard.

Illustration A





Applies to all models
- Tape the cable using foam or insulation tape for example, at the point where the cable lies against the edge. This is to protect it against rubbing.
- Take a tie strap from the kit and secure the cable in the hole on the end as illustrated.

Illustration B





Applies to left-hand drive cars
- Take two tie straps from the kit and clamp the cable at the existing cable harnesses inside the dashboard as illustrated.





Applies to all models
- Take the screen with bracket.
- Connect the connector (1) on the pre-routed cable to the left-hand socket on the screen.
- Reinstall the connector (2) for the existing cable in the right-hand socket on the screen.
- Reinstall the bracket with the screen and tighten using the six screws.




- Reinstall the loudspeaker grille.

Finishing work

Steps 77-78 apply to left-hand drive cars




- Connect and reinstall the combined instrument panel.

Illustration A




- Reinstall the panel with the steering column cover's rubber seal and press the eight clips into place.

Illustration B




- Press the panel in front of the steering column cover.

Applies to all models




- Reinstall the lower panel of the B post panel.




- Reinstall the A post's lower panel.




- Reinstall the rubber strip in the door opening.




- Reinstall the front door's sill trim panel.




- Reinstall the dashboard end.




- Connect the cargo compartment lighting connector.

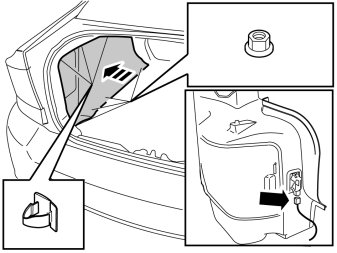

- Reinstall the side panel in the cargo compartment.
- Reinstall the four plastic nuts at the lower edge and the three clips at the upper edge.
- Repeat for the other side.

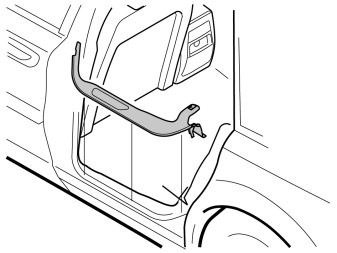

- Reinstall the sill trim panel in the door opening for the left-hand rear door.

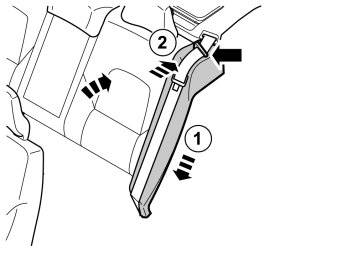

- Reinstall the side bolster by first hooking it at the lower mounting, and then pressing it in at the upper edge until it locks securely.
- Insert the seatbelt in the guide on the side bolster.
- Fold up the backrest.

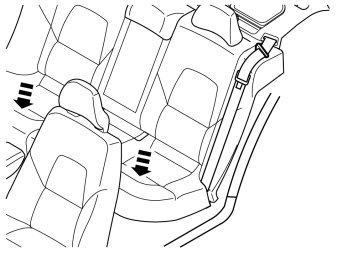

- Connect the connectors for seat heating underneath, on both sides.
- Press the seat cushion into place.




- Reinstall the sill trim panel in the cargo compartment by first pressing it into the clips at the upper edge (1) and then the clips on the inside (2).




- Reinstall the rubber strip in the cargo compartment opening.




- Reinstall the cargo compartment carpet.




- Reconnect the battery negative lead
- Program the software in accordance with the service information in VIDA.

Applies to cars with chassis number 0-47999
Download the software from the DVD (purchased separately):
1. Connect the battery charger if the battery voltage is less than 12V.
2. Turn on the ignition (push and hold the starter button).
3. Start NAVI.
4. Insert the disc in the navigation system's DVD player, after which the installation starts.
5. Press ENTER when asked:
1. "New SW found
current SW: v0855
new SW: v0856
continue"
1. The download takes about 10 minutes and is completed with the following message.
"The disc in the DVD player can not be read. Please check the disc. If this happens again please have the system inspected at your nearest workshop."
2. Reinsert the map disc.
3. Check that the download was successful.
- Press BACK
Select "Settings"
Select "System options"
Select "About"
SW version should be 0856 or later

Note! If the car already has the latest software installed the following text is displayed:"The disc in the DVD player can not be read. Please check the disc. If this happens again please have the system inspected at your nearest workshop."
