Solenoid Back-Up (Reverse) Inhibitor, Replacing

Solenoid back-up (reverse) inhibitor, replacing

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information is always correct.

Preparatory work

Removing the center console

S60
Remove center console. See: Center console, replacing Center Console, Replacing (-2004) or: Center console, replacing Center Console, Replacing (2005-).

V70
Remove center console. See: Center console, replacing Center Console, Replacing (-2004) or: Center console, replacing Center Console, Replacing (2005-).

Removal

Preparations for replacing the solenoid

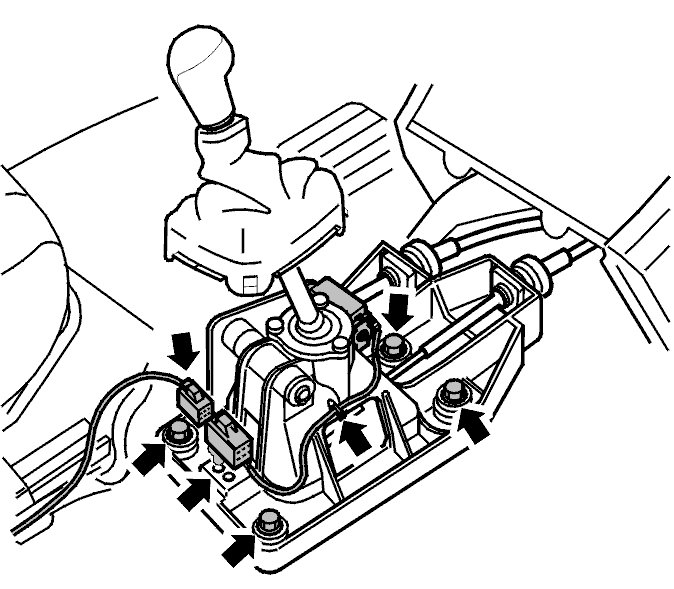

Separate the connector.

Remove:
- the connector (pull it straight up). Transfer the clip
- the clip and the wiring on the left and right-hand sides.
Remove the screws for the gear selector assembly.

Removing the solenoid

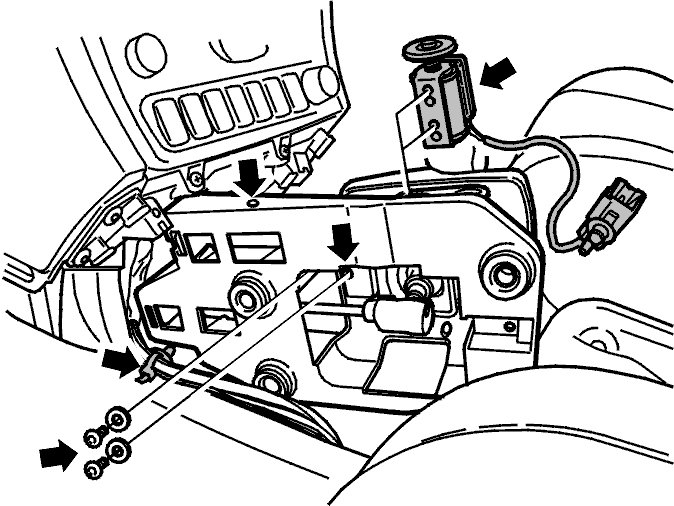

Move the gear selector assembly to the right side.
Slacken off the screws. Remove the solenoid.

Installation

Note! For tightening torques, see applicable specifications.

Installing the solenoid




Install the solenoid. Tighten the screws.

Installing the gear selector assembly





Install:
- the 4 x M8 screws to the gear selector assembly. Tighten
- the clip and the wiring on the left and right-hand sides.
Connect the connector and secure it in the gear selector assembly.

Finishing

Installing the center console
Install the center console. See: Center console, replacing. Center Console, Replacing
