Removal of Rear Side Window

Removal of rear side window

Special tools:
951 2786 Handle 951 2786 Handle

Special tools:
951 2787 Knife blade 26 951 2787 Knife Blade 26

Removal of rear side window
Remove the C/D pillar panel as described in.
Cut out the window.

Note! Use soapy water. This helps cutting.

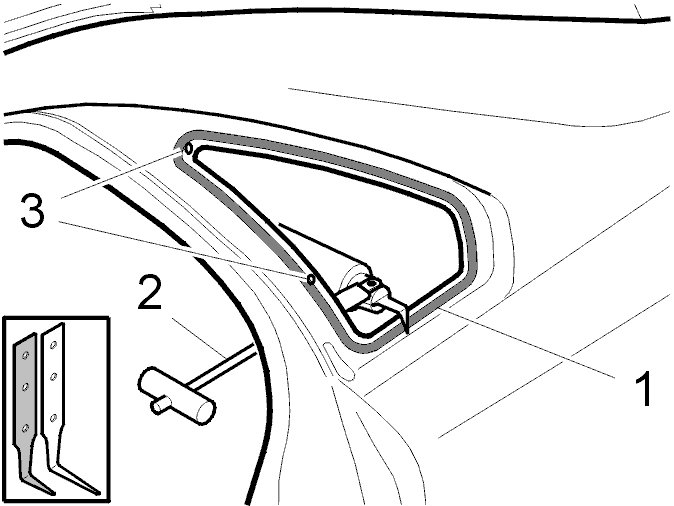

(1) = PUR bead.
(2) = Window knife
(3) = Guide pins.
Cut along the marked edge.
Use short blade.
Take care around the guide pins. Be careful not to damage the paint!
If the window is to be re-used: Remove the PUR bead with a chisel.
For handling PUR on the body flange, see PUR on body flange .
