Electrical Diagrams

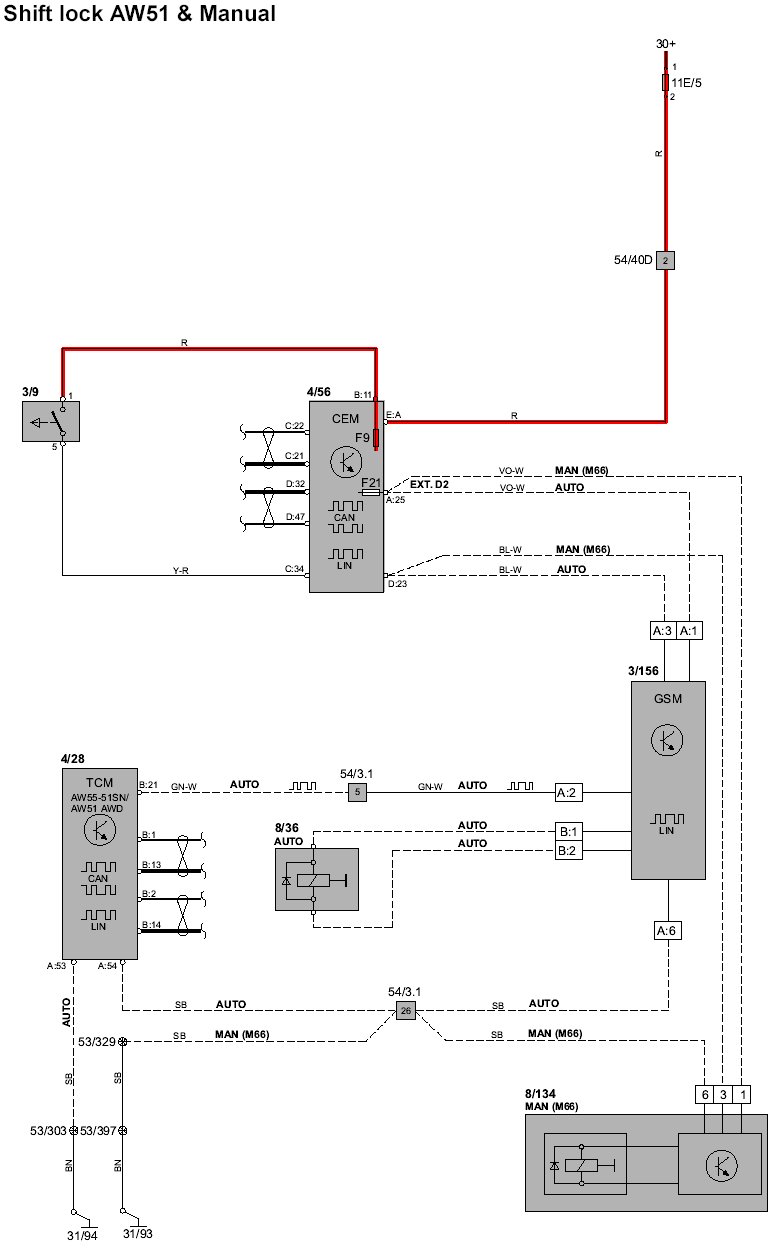

Shift Lock AW51 And Manual

Shift Lock AW51 And Manual:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
