Parking assistance, front
Note! During installation the underlay must be kept at a temperature of at least +15°C (60°F)

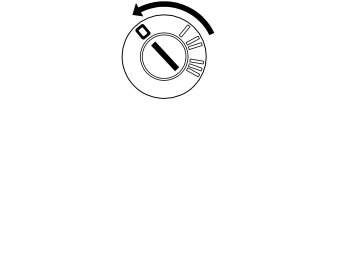

- Turn the ignition key to position 0
- Remove the key from the ignition.
Note! Wait at least one minute before disconnecting the connectors or removing other electrical equipment.
Removing the front bumper

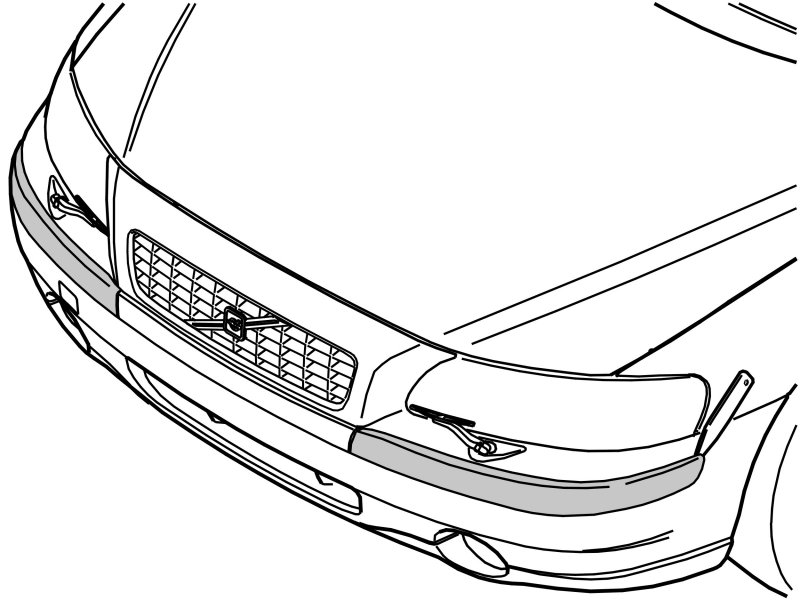

- Remove the trim strip on the right and left-hand sides.

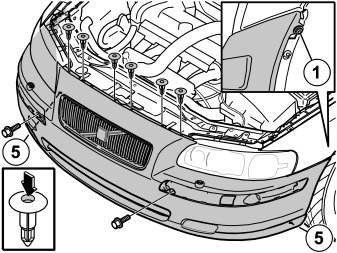

- Remove the two screws (1)
- Remove the front screws
- Press the centre pin on the six clips on the top of the bumper. Remove the clips
- Release the two clips (5) on the underneath of the bumper in the same way
- Remove the headlamp wiper arms. See the instructions in VIDA.
- Pull the bumper forwards whilst pulling both sides outwards until the edges release from the side mountings.
Hint: This operation is easier with two people.

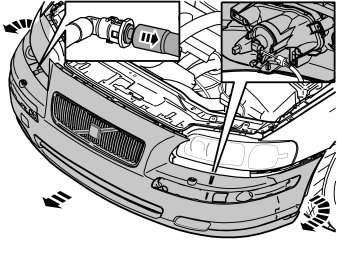

- Disconnect both the connectors for the fog lamp
- Release the quick-release connector for the headlamp washer if applicable.
- Install the backing paper on the bumper.

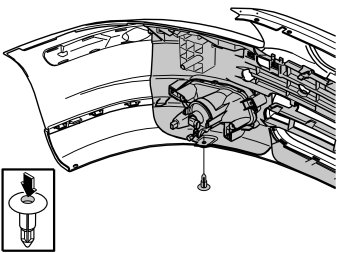

- Remove the two clips on the underneath of the bumper cover
- Remove the clip for the washer hose if applicable
- Unhook the rear section from the bumper cover
- Remove the foam from the bumper cover.
Passenger compartment preparations
Note! Illustrations show a left-hand drive car. Carry out the operation on the left-hand side on right-hand drive cars.

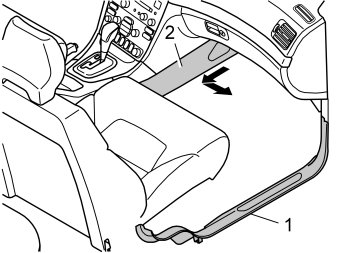

- Remove the sill (1) and right-hand centre console panel (2).

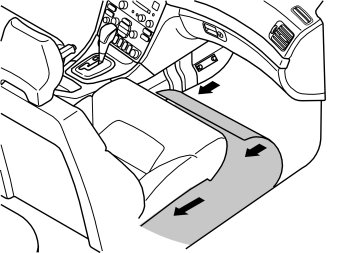

- Detach the floor carpet at the front passenger seat. Push the carpet to one side so that the hole to the engine compartment is visible.
- Remove the seat cushion (1). First pull the front edge of the seat cushion up. Pull the cushion forwards. Then lift the seat cushion out

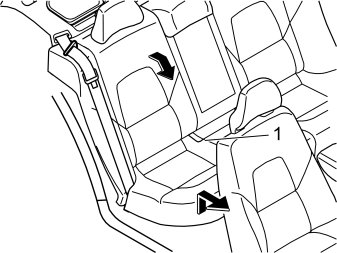

- Fold the right-hand rear backrest forward.
Preparations in the cargo compartment
Note! Right-hand drive cars: Proceed directly to point.

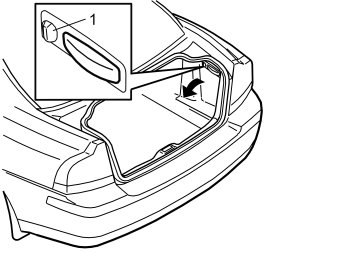

- Remove the cargo compartment carpet at the rear edge. First turn the two knobs (1) 90°.
- Pull up the front of the cargo compartment carpet. Fold the front half back over the rear half of the cargo compartment carpet
- Slide the entire cargo compartment carpet forwards slightly and then turn it
- Lift the carpet out of the car.

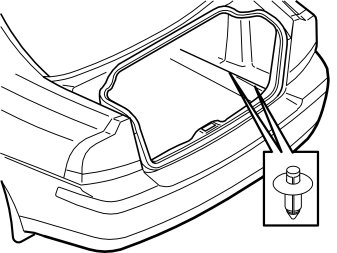

- Press the centre of the clip at the bottom of the folding side panel. Press the clip until a click is heard
- Remove the clips
- Repeat on the other side.
- Turn the handle (1) on the right-hand side through 90°.
- Fold the side panel inwards. Lift the panel out
- Repeat on the other side.
Note! Only remove the left-hand side panel on right-hand drive cars.
Remove:

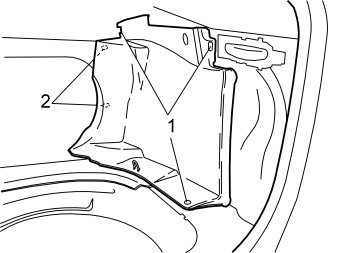

- the clips (1) in the front side panel in the cargo compartment
- the clips (2) at the top of the front edge on the rear side panel by the folding backrest
- the panel.
- Repeat on the other side.
Note! Only remove the front left-hand side panel on right-hand drive cars.
Cable routing
Installing the cable harness from the bumper
Note! Illustrations "Installing the cable harness from the bumper" show a left-hand drive car. Carry out the procedure on the left-hand side of the car on right-hand drive vehicles.
- Take the short cable harness from the kit
- Disconnect the smaller connector from the cable

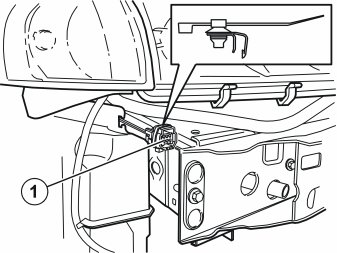

- Secure the watertight connector (1) with the plastic clamp / steel clip from the kit
- Secure the plastic clamp around the connector. Secure the steel clip around the steel edge on the right-hand side of the car.
- Pull the cable end with loose pins into the engine compartment

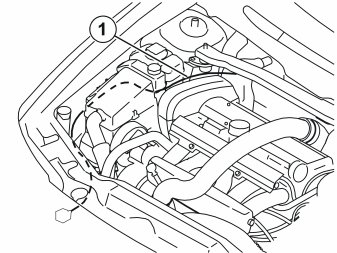

- Route the cable (1) as illustrated. Conceal the cable under the fuse holder and expansion tank
- Ensure that it will not be damaged by heat or wear
- Clamp the cable. Use tie straps from the kit.
Routing the cable to the passenger compartment
- Raise the car
- Remove the plug from the hole into the passenger compartment.
If the car has a rubber grommet without room for more cables
- Replace the existing rubber grommet with the rubber grommet from the kit.
If the car has a rubber grommet with room for more cables
- Cut the end off the spare rubber nipple and route the cable to the passenger compartment
- Thread the rubber grommet on from the kit. Lubricate the cable to facilitate sliding on the rubber grommet. Use soap. Route the cable through the hole. Press the rubber grommet into place
- Ensure that the insulation sheath for the cable is positioned against the lead-in. Secure it using a tie strap.

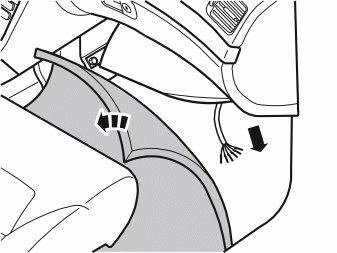

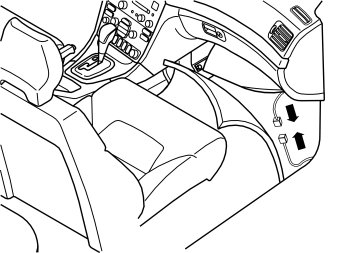

- Push the floor carpet to one side. Pull in the cable.
- Locate the connector that was disconnected earlier
- Release the catch
- Install the cable end pins in the connector.
1. Blue (Blue, BL)
2. Green (Green, GN)
3. Violet (Violet, VO)
4. Yellow (Yellow, Y)
5. White (White, W)
6. Black (Black, SB).
- Press the connector catch back into place.
- Take the long cable from the kit. Connect to the newly prepared connector
- Route the cable to the side of the car and to the rear under the sills along the existing cable trunks. Continue in to the cargo compartment.
Applies to left-hand drive cars
- Route the cable along the rear crossmember and onwards to the parking assistance module (PAM) at the left-hand wheel arch.
Making holes in the bumper

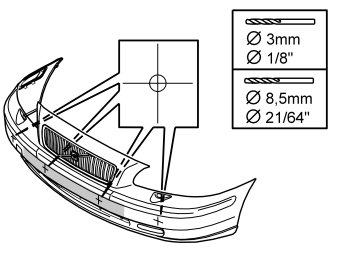

- Pre-drill the holes through the centre of the markings. Use a 3 mm (1/8") diameter drill bit
- Drill out the holes. Use a 8.5 mm (21/64") diameter drill bit.

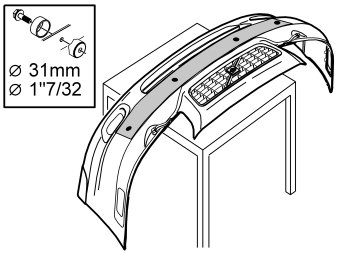

- Make the holes in the bumper casing. Use a 31 mm (17/32") hole tool (P/N 9814069).
Making holes in the rear section

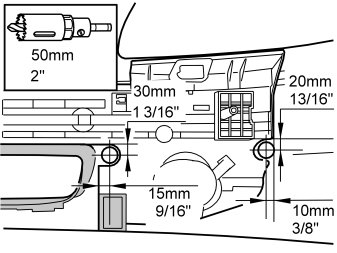

- Mark the rear section for holes. See the illustration. The illustration shows the right-hand side. Make the same measurements on the left-hand side
- Drill through the rear section. Use a 50 mm hole saw.
Installing the sensor holders

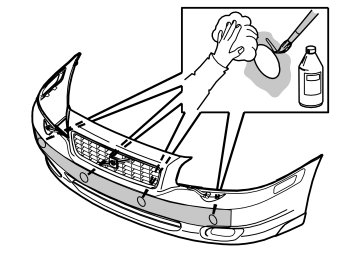

- Wash any dirt and stones off the bumper casing. Use a mild soap solution
- Clean around the drilled holes. Use a wet cloth. Allow to dry
- Apply activator (P/N 8637076) around the holes on the inside of the bumper. Allow to dry.

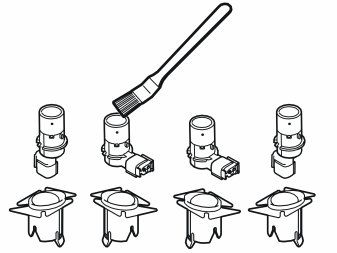

- Clean the mounting surfaces on the sensor holders. Use the wet cloth. Allow to dry
- Apply activator (P/N 8637076) to the cleaned surfaces of the sensor holders. Allow to dry
- Clean the sensor surfaces on the sensor. Use the wet cloth. Allow to dry
- Apply a thin layer of activator over the sensors.
Note! Only paint the parts that are visible after installation.

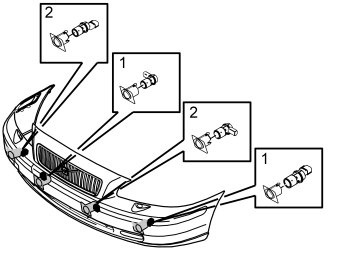

- Check that the markings on the reverse (A) of the sensor holders are correctly positioned
- The holders must be positioned in the following order, from left to right: 1, 2, 1, 2.
Illustration A

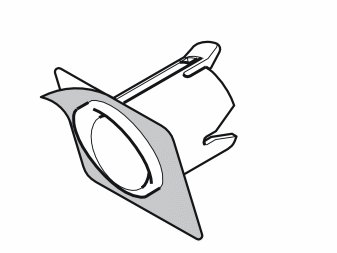

- Remove the protective film from one side of the tape
- Secure the tape on the sensor holder
- Carry out the above procedure on the remaining three sensor holders

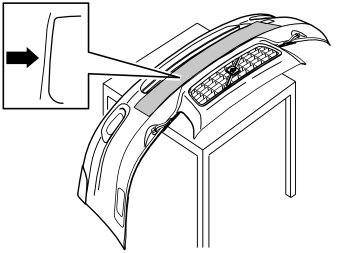

- Cut away a piece of the collar on the holders for the inner sensor where it is turned in towards the centre of the bumper
- Cut away a piece of the collar which is turned downwards on the holders for the outer sensors
- Check the position of the holders. Place the sensors in the holders. The connectors for the inner sensors must be turned outwards.
Note! Check that the sensor holders can be installed before removing the backing tape.
Illustration B
- Remove the protective film from the pieces of tape on the sensor holders
- Install the holders for the sensors. The numbers must be pointing upwards so that they are horizontally in line with the bumper casing. See the illustration.
Note! The tape adheres immediately.
Caution! Incorrect positioning of the sensors may result in partial or complete malfunction.
Installing the sensors and cable harness
Note! Applies to left-hand drive cars. When installing on the right-hand drive cars, the connector on the cable harness must protrude from the left-hand side of the bumper.
- Take the sensors and cable harness from the kit
- Install the two inner sensors in the sensor holders so that they engage securely. The outer sensors are installed from underneath after the bumper is reinstalled on the car

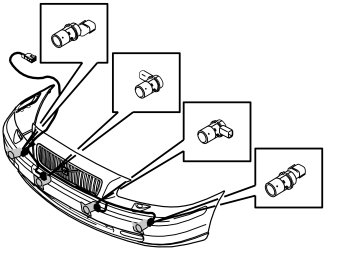

- Connect the cable harness connectors to the sensors. The loose connector for the cable harness must now protrude from the side of the bumper. See the illustration.
Note! A click should be heard when connecting. The noise confirms that the catch has locked.
- The cable harness must be secured along the inside edge of the bumper above the foam. Secure the cable. Use butyl tape. Use activator (P/N 8637076) as an undercoat to increase adhesion.

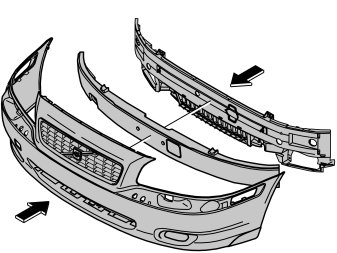

- Reinstall the foam and rear section in the bumper cover
- Reinstall the two clips on the underneath of the bumper cover
- Ensure that all catches secure properly.
Note! Ensure that the activator has dried for at least 10 minutes before the paint is applied.

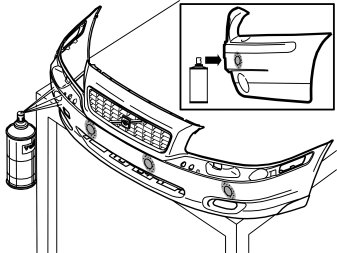

- Spray the sensor holders and the sensors. Use paint with the same colour code as the car. Use a Volvo recommended paint. Apply a maximum of two layers of paint.
Caution! Too many layers of paint may result in partial or complete malfunction.

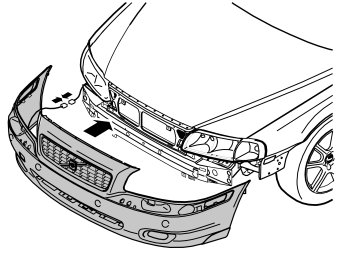

- Hold the bumper up against the car. Connect the connectors for the sensors to the connector secured to the car
- Reinstall the bumper by repeating the instructions in points in reverse order
- Install the outer sensors in the holders. Connect the sensors to the cable harness. See illustration.

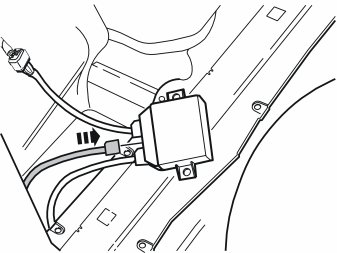

- Connect the pre-routed cable to the spare port in the parking assistance module (PAM)

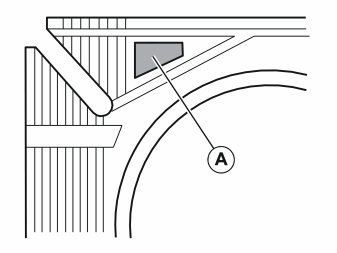

- It is secured by Velcro strips on the left-hand side in the cargo compartment behind the wheel arch.
Note! Ensure that the connector clicks into place and are properly secured.
Finishing work
- Clamp the sensor cable so that it does not chafe or rattle.
Reinstall:
- the sill trim panels, front and rear
- the side panels in the cargo compartment
- the floor carpet and sill moulding in the cargo compartment
- the panel and floor carpet at the front passenger or driver's seat.
- Program the system according to the service information in VIDA.
