Signal Description / Specification

Signal specification

General

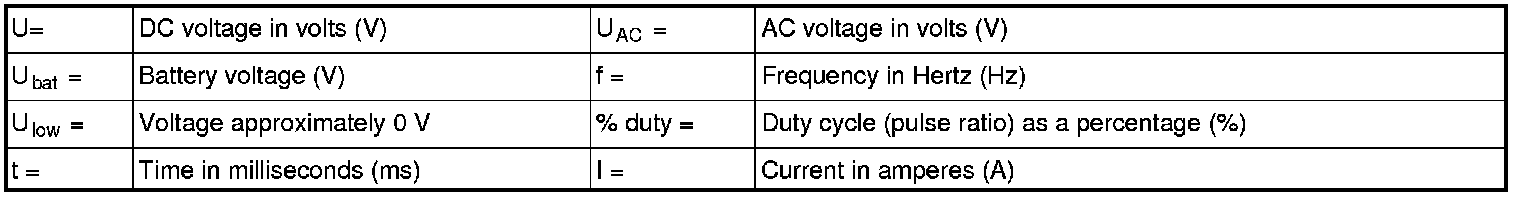

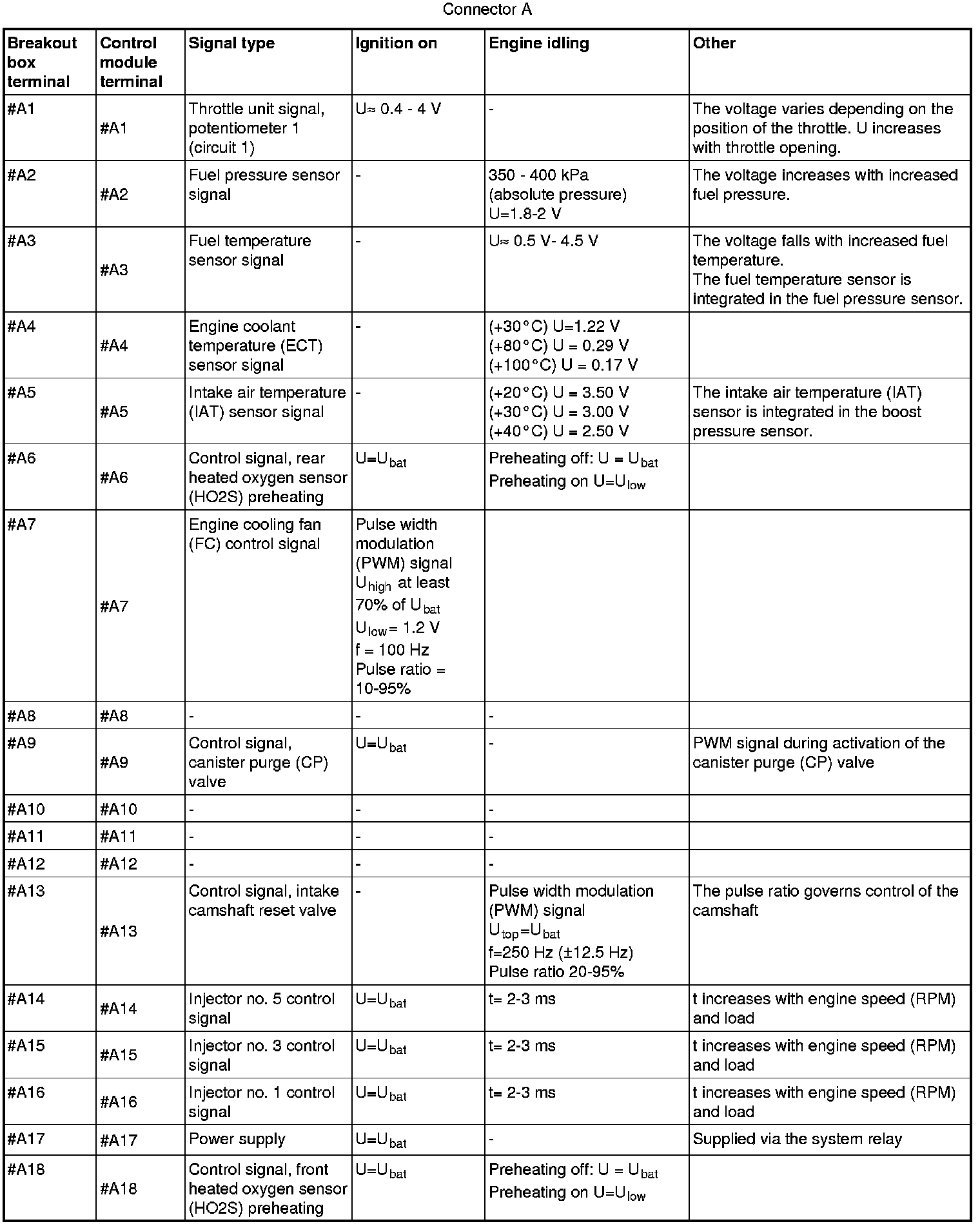

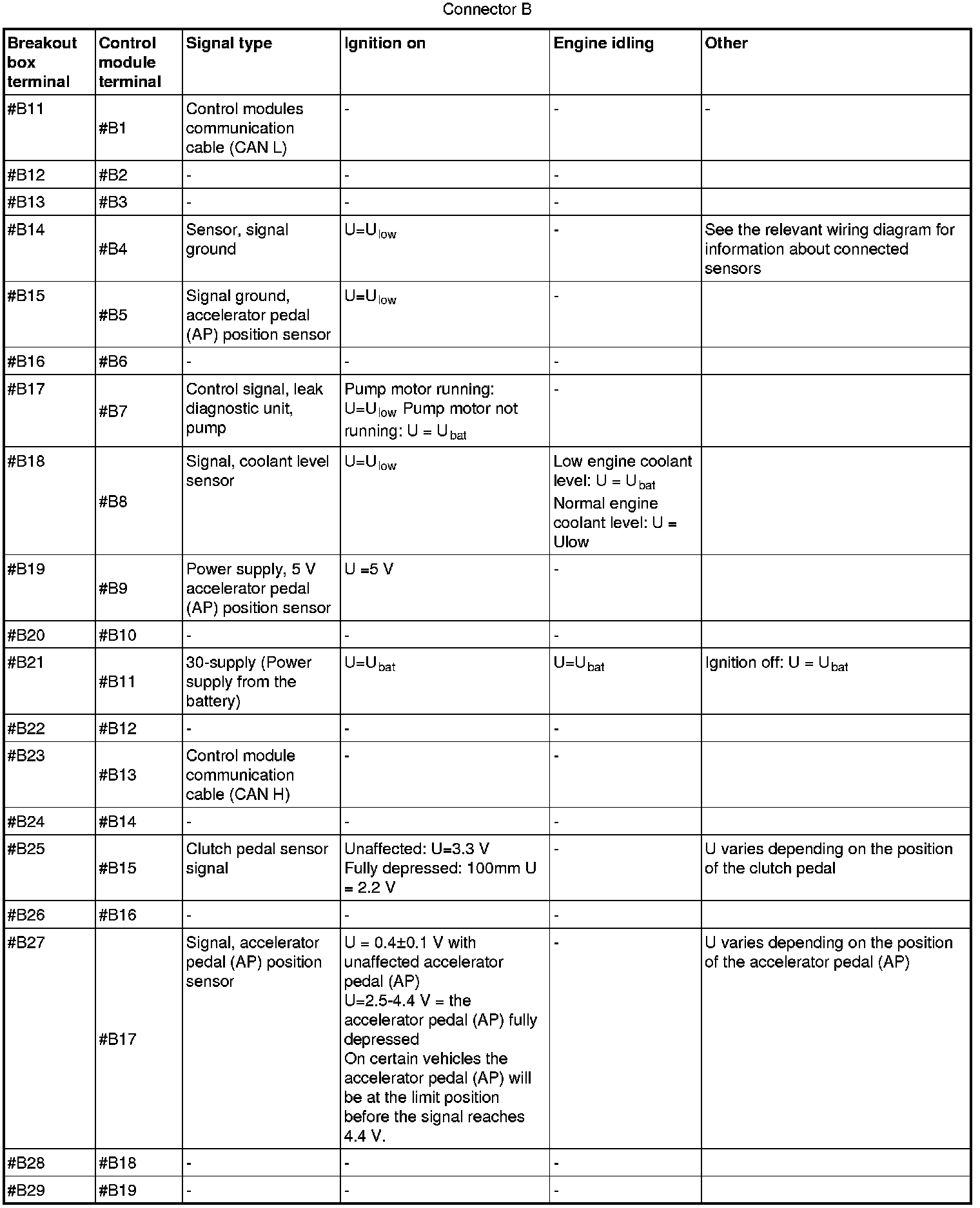

All values given below are between the terminals stated in column 2 (Control module terminal) and breakout box terminal #B3 unless otherwise indicated in column 6 (Miscellaneous). Control module terminals #A1-#A70 correspond to terminals #A1-#B10 on the breakout box, terminals #B1-#B50 correspond to #B11 - #B60 on the breakout box.

Note! It is important to connect the breakout box and check the ground terminals before taking readings.

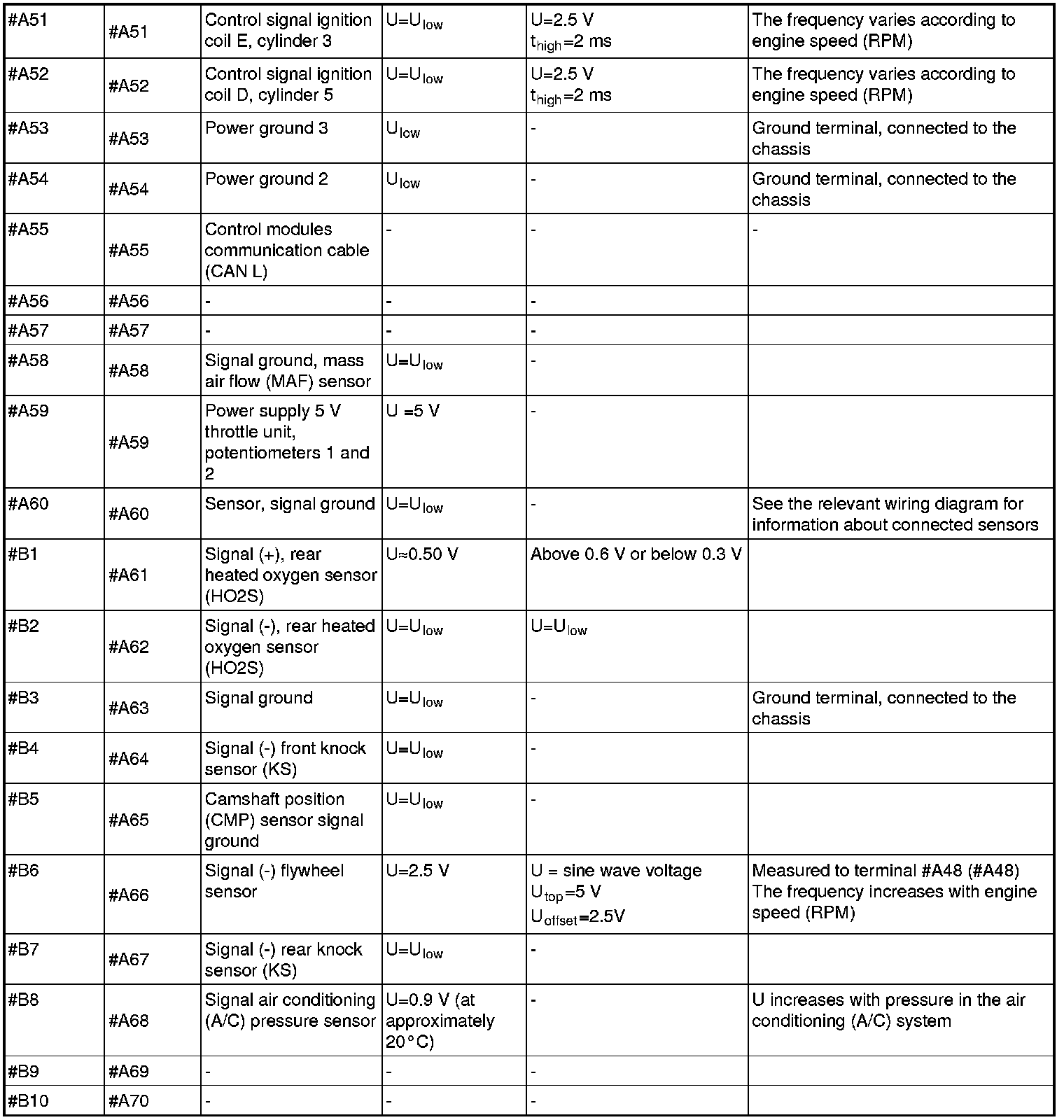

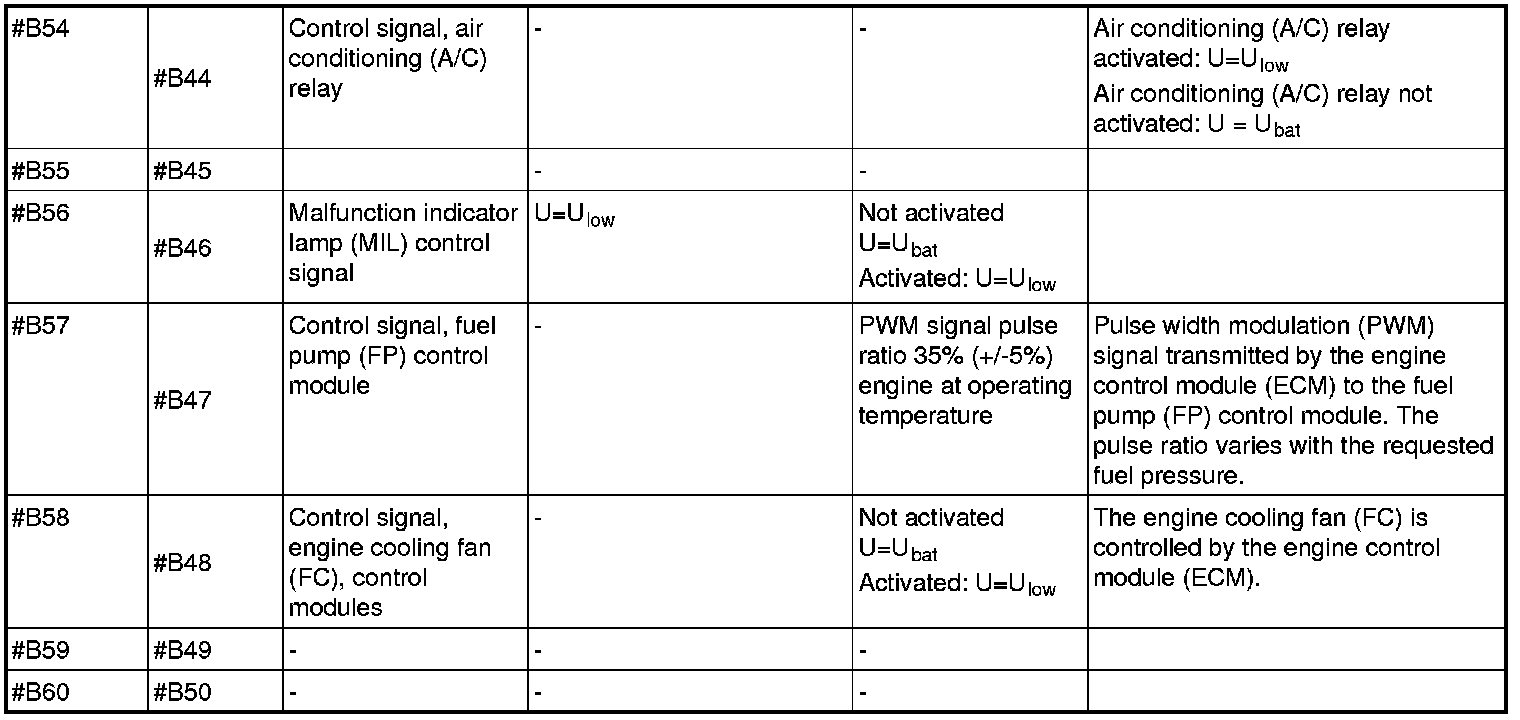

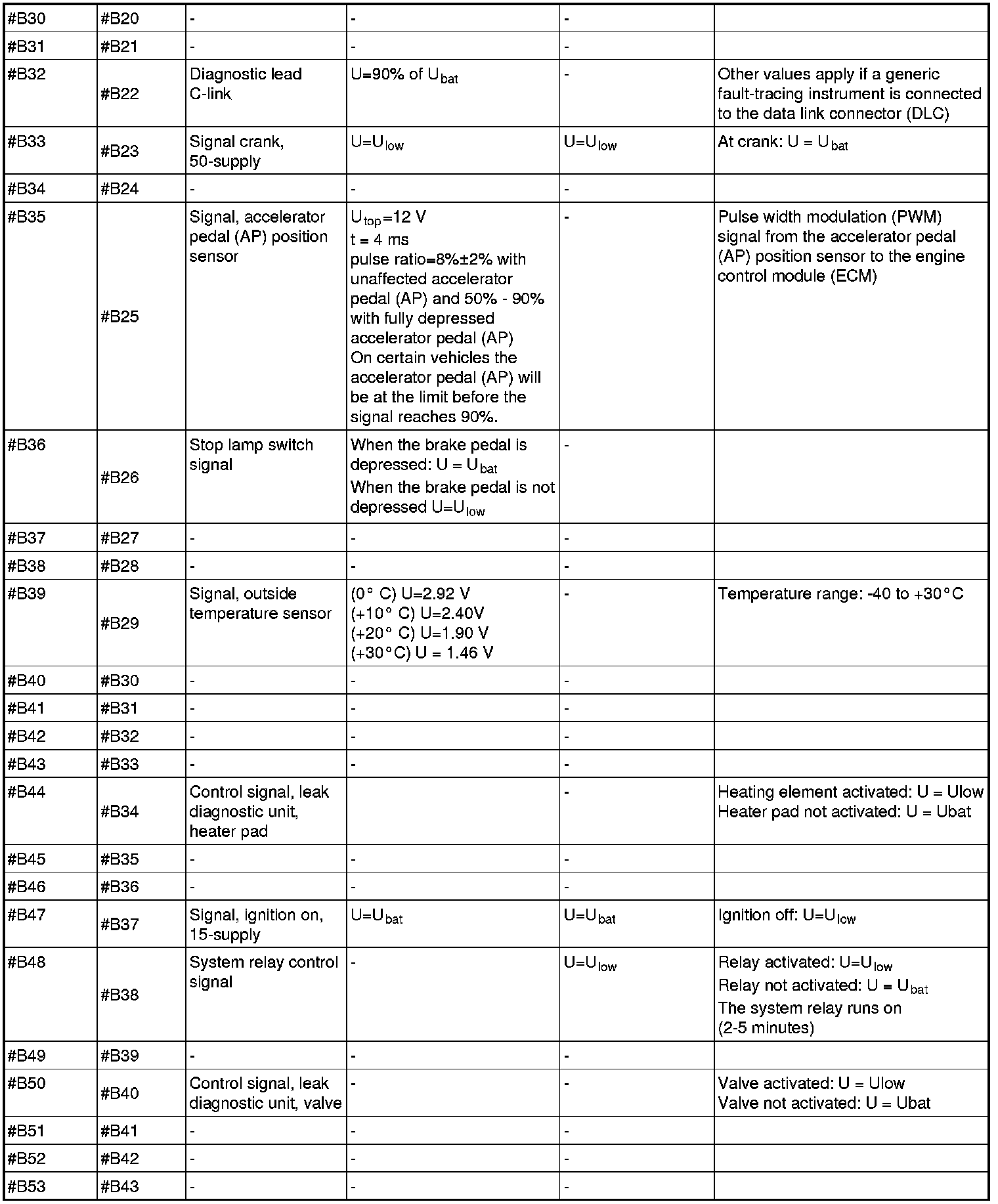

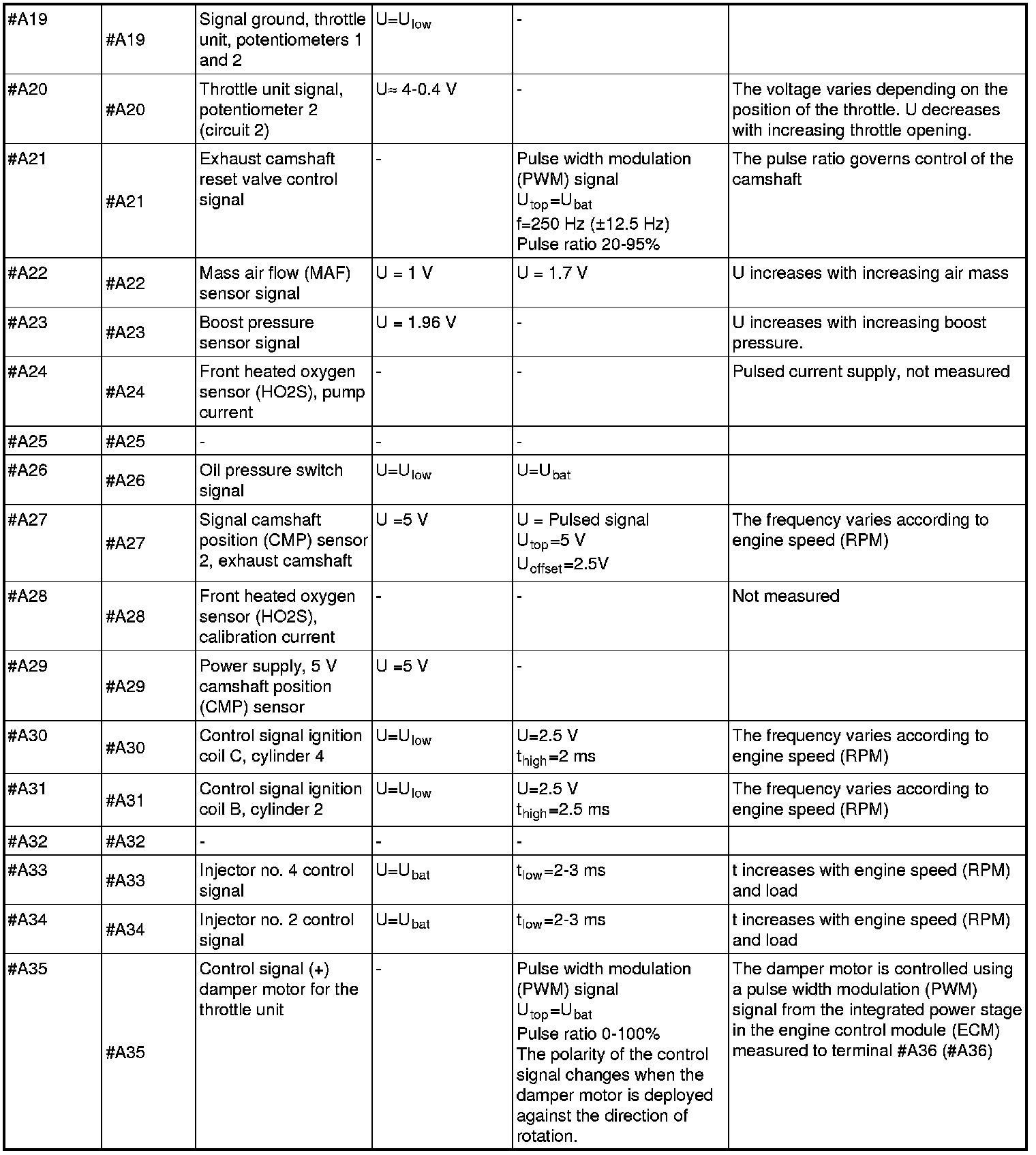

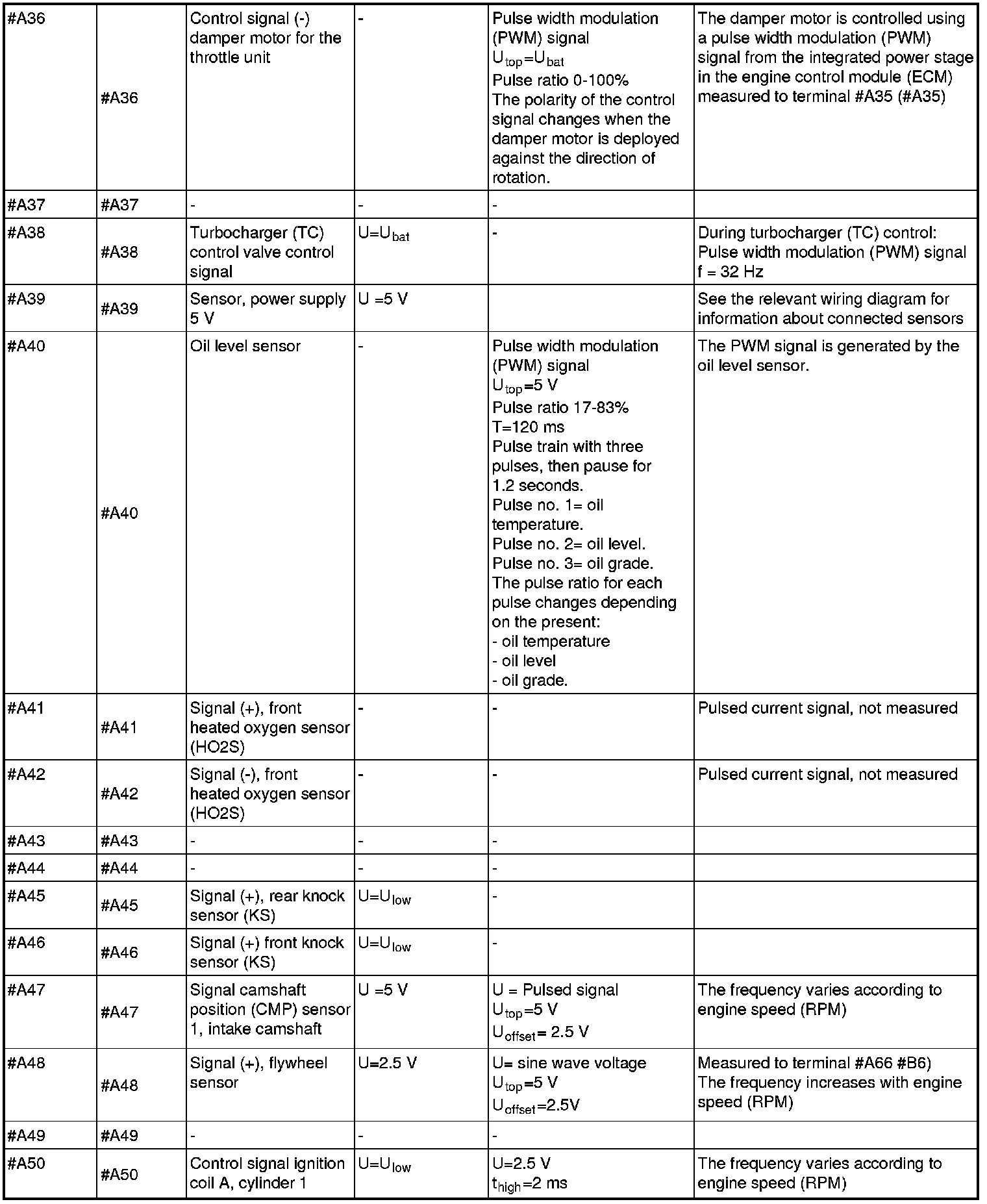

Hint: If the numbering of the connector is different from the numbering on the breakout box, the connector number is given first, terminal #A61, followed by the breakout box number in brackets, (#B1). Example: #A61 (#B1).
