Bulb, Headlamp, Replacing

Bulb headlamp, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Other information

To replace the headlamp/bulb, see Headlamp/bulb, replacing Headlamp/Bulb, Replacing.

Method content

This method consists of:
- replacing
- replacing
- replacing
- replacing
- replacing

Preparatory work

Ignition off




Ignition off.
Switch off the lighting switch.

Location of components




1. Turn signal lamps
2. Parking lamps, applies to vehicles with Bi-Xenon lamps
3. Parking lamps, applies to vehicles equipped with halogen lamps
4. Dipped beam
5. Main beam
6. Sidemarker lamps front.

Bulb headlamp, replacing

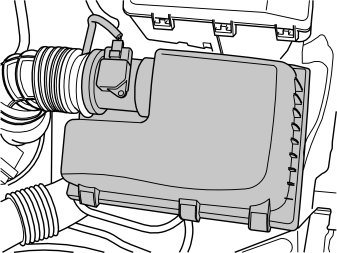

Removing air filter housing




Detach the air cleaner housing from the 3 x clips by pulling straight up and placing to one side.

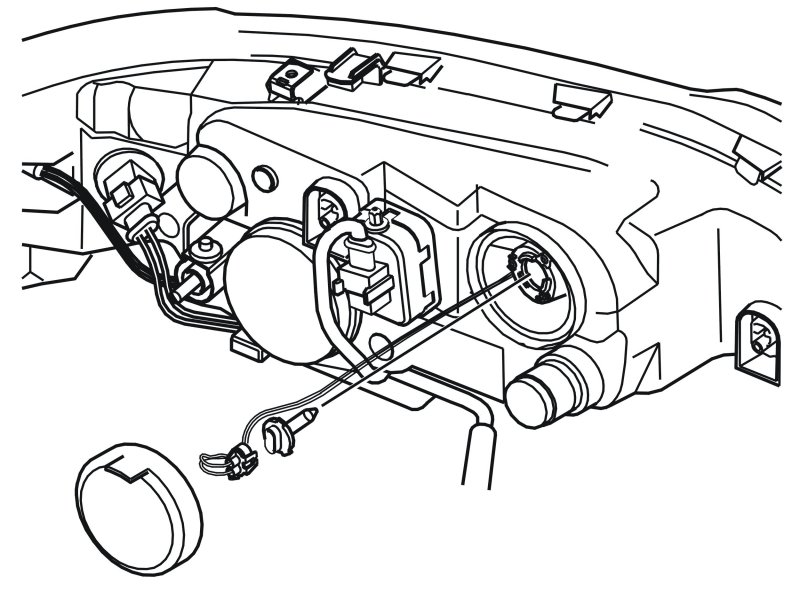

Removing the bulb low beam

Note! For vehicles with Bi-Xenon lamps, see Bi-Xenon lamps, replacing Bi-Xenon Lamps, Replacing.





Remove:
- the cover
- the bulb by turning
- the connector
- the bulb.

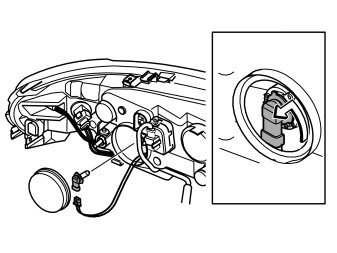

Installing bulb low beam

Hint: Look through the glass of the headlamp to align the lamp.

Install:
- the connector
- the bulb, press and turn
- the cover.

Bulb high beam, replacing

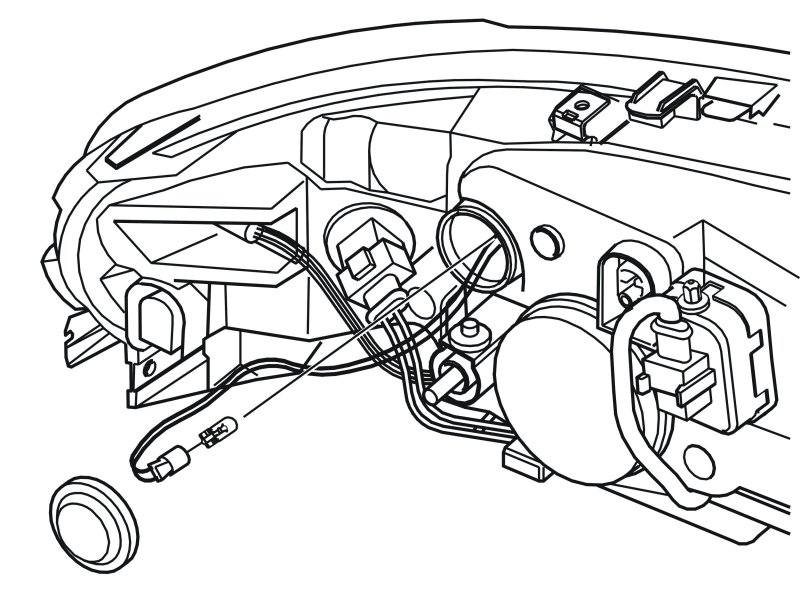

Removing bulb high beam





Remove:
- the cover
- the bulb by pressing and twisting it
- the connector.

Installing the bulb high beam

Install:
- the connector
- the bulb, turn
- the cover.

Bulb parking lamps halogen headlamps, replacing

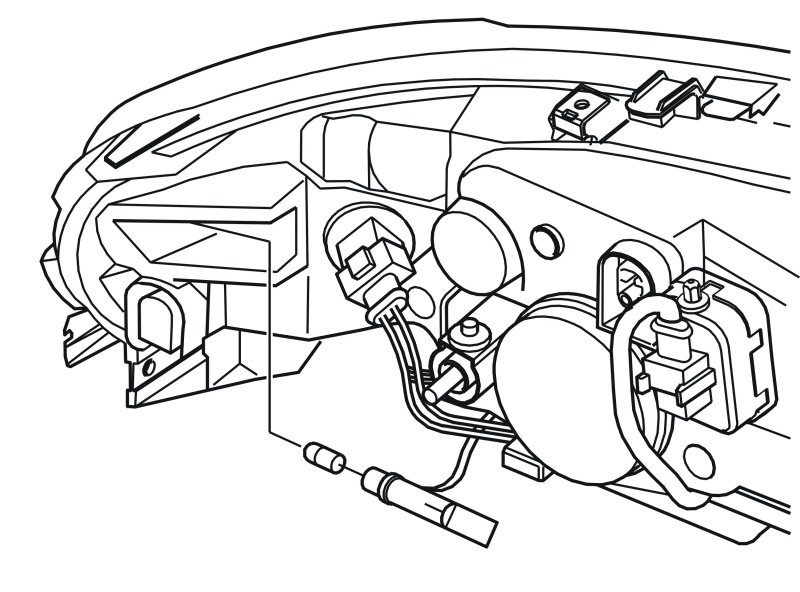

Removing bulb parking lamps halogen headlamps





Hint: Use round-nosed pliers, the bulb holder is difficult to access.

Remove:
- the cover
- the bulb holder by pressing in the catches on the side and pulling
- the bulb.

Installing bulb parking lamps halogen headlamps

Install:
- the bulb
- the bulb holder
- the cover.

Bulb parking lamps B-Xenon headlamps, replacing

Removing bulb parking lamps Bi-Xenon headlamps





Hint: Use round-nosed pliers, the bulb holder is difficult to access.

Remove:
- the cover
- the bulb holder by pressing in the catches on the side and pulling
- the bulb.

Installing bulb parking lamps Bi-Xenon headlamps

Install:
- the bulb
- the bulb holder
- the cover.

Bulb sidemarker lamps/turn signal lamps, replacing

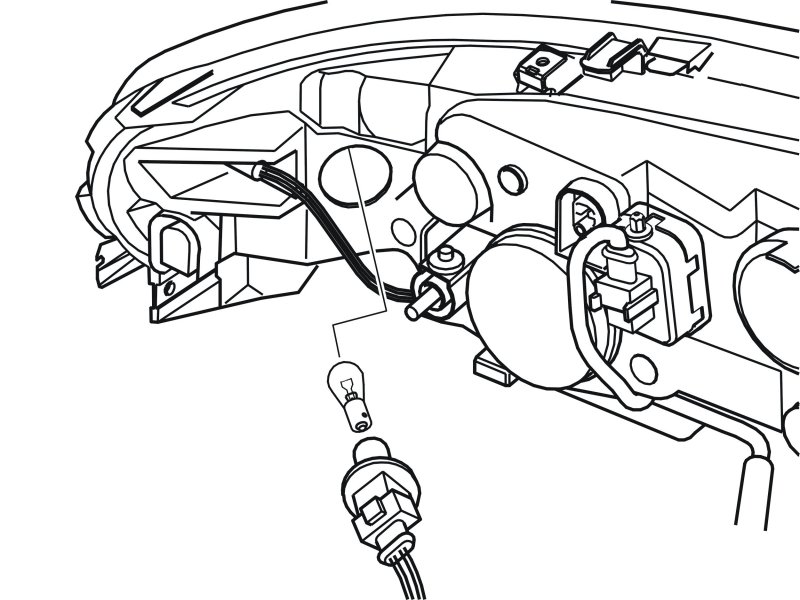

Removing the bulb for side marker lamps/turn signal lamps

Side marker lamps





Note! Applies to the right-hand side only.

Remove the fuel filler pipe.

Remove:
- the bulb holder by pressing and twisting it
- the bulb.

Turn signal lamps





Installing the bulb for side marker lamps/turn signal lamps

Install:
- the bulb
- the bulb holder by pressing and twisting it.

Installing the air cleaner (ACL) housing




Install the air cleaner housing by aligning the clip mountings and pressing in.
Check that the intake pipe is in position. Check that the clips engage the air cleaner housing properly.
