Fog/Driving Lamp Bulb: Service and Repair

Bulb tail lamp / stop lamp / back-up lamp / fog lamp, replacing

Removal

Preparations




- Switch off the ignition
- Reset the lighting switch
- Open the catch for the hatch. Fold down the hatch.

Bulbs

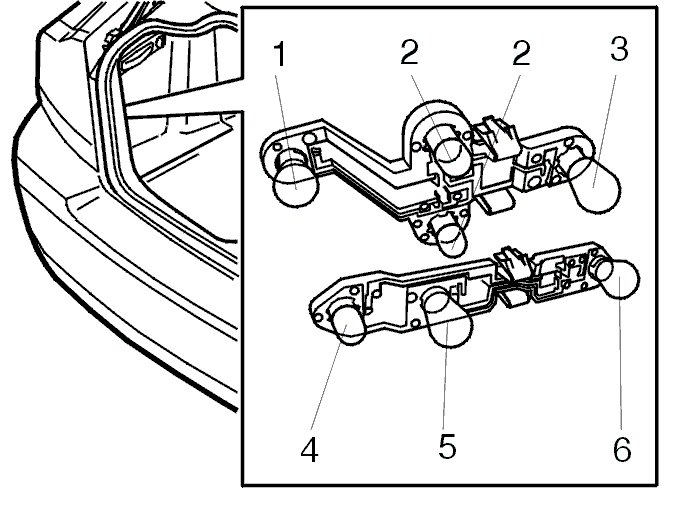

- Press the lamp holder catches towards each other. Withdraw the bulb holder
- Remove the bulb.

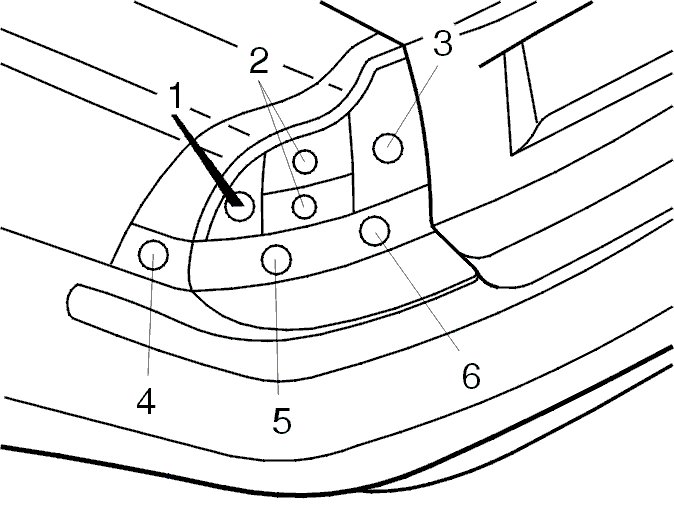

For the location of lamps in the tail lamp, see the illustration.
1. Stop (brake) lamps
2. Parking lamps and position lamps
3. Fog lamps
4. Side marker lamps
5. Turn signal lamps
6. Back-up (reversing) lamps.

Note! There is only a fog tail lamp bulb in one of the tail lamps. In the left tail lamp on left-hand drive cars and in the right on right-hand drive cars.

Installation

Bulbs




- In reverse order
- For the location of the lamps, see Bulbs.
