Home >> Volvo >> 2009 >> S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> System Diagram >> Audio With Internal Amplifier

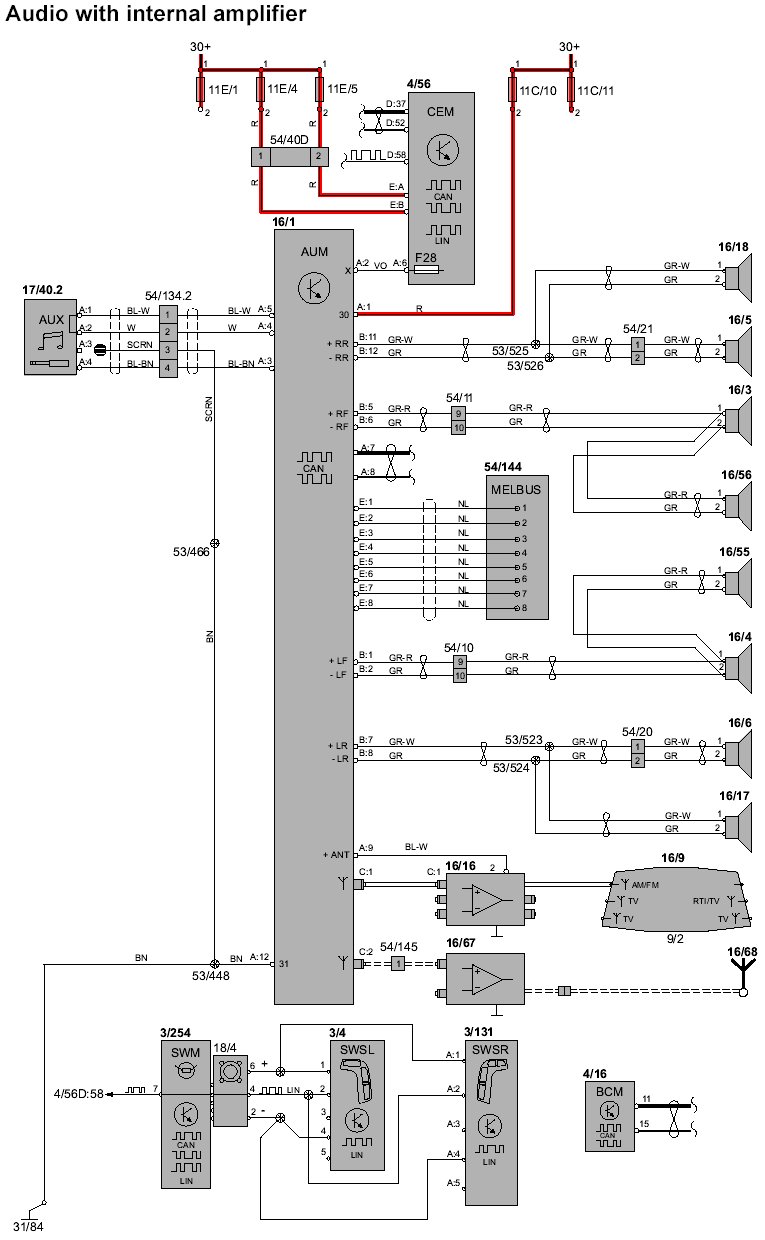

Audio With Internal Amplifier



Audio With Internal Amplifier


Audio With Internal Amplifier:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
pro multis Credits:Operation CHARM About Operation CHARM
