Audio With External Amplifier



Audio With External Amplifier

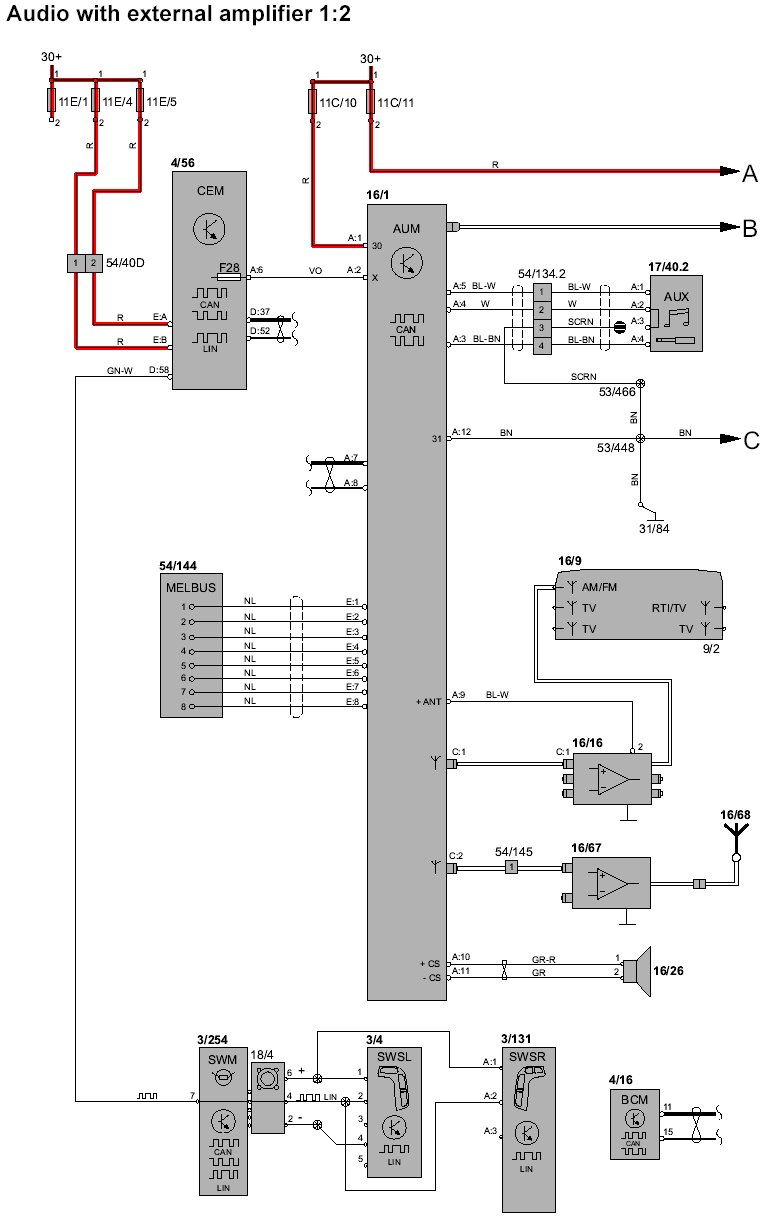

Audio With External Amplifier 1:2:

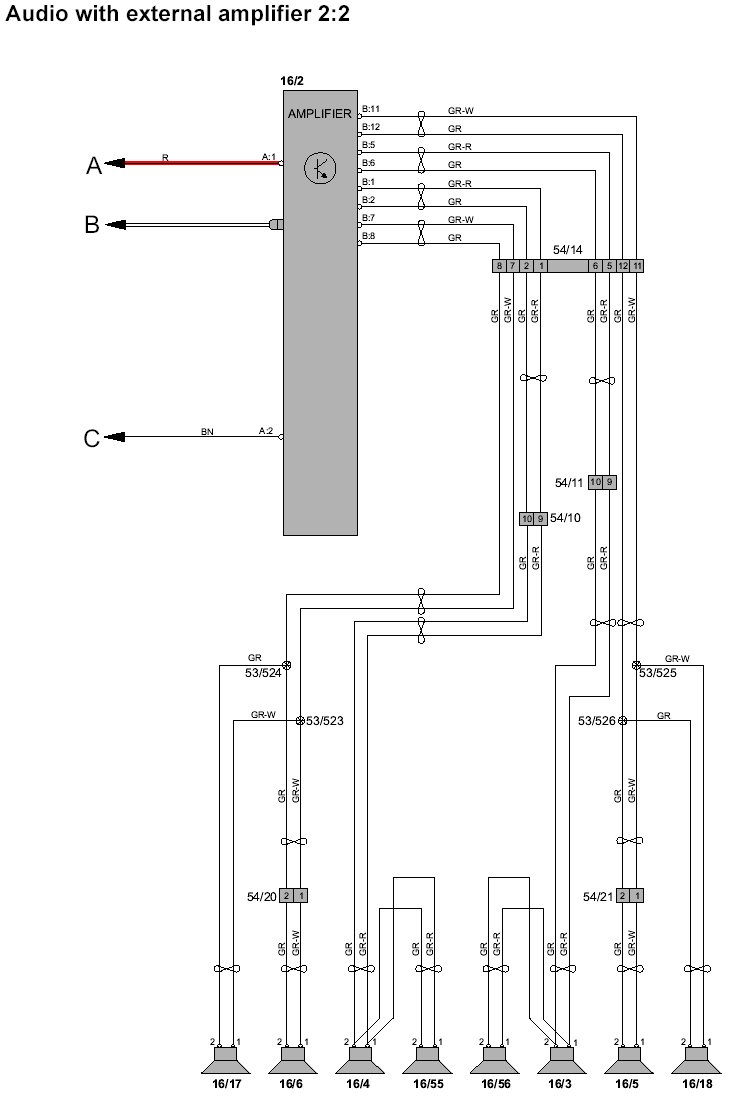

Audio With External Amplifier 2:2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
