Upholstery, Seat Cushion, Replacing

Upholstery Seat Cushion, Replacing

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Removing the front seat

Remove the front seat.

Removal

Removing the seat cushion upholstery

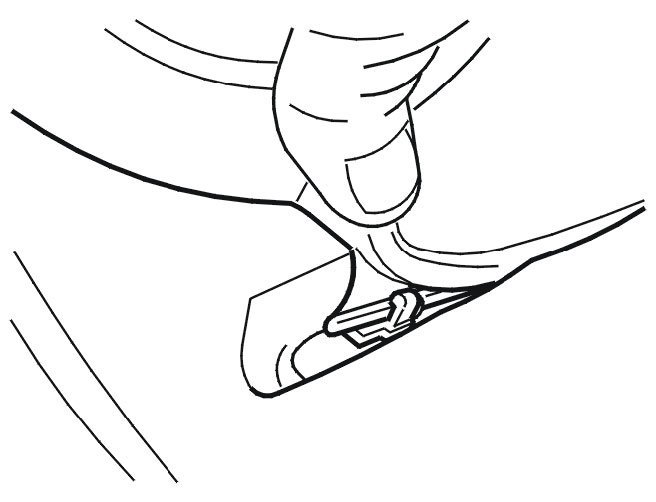

Unhook the upholstery from around the seat frame. Lift up the upholstery.

Unclip the upholstery from the seat cushion.

Installation

Installing seat cushion upholstery

Snap the upholstery into place on the seat cushion. Pull down the upholstery. Hook the upholstery into place around the seat frame.
Install the front seat.

WARNING: If the car is equipped with an occupant weight sensors (OWS), this must always be calibrated if the upholstery has been removed or replaced.
