Locks - Vehicle Speed Automatic Locking Logic
TIE - Technical JournalTitle Automatic locking by vehicle speed, new logic for activating/deactivating
Ref No US13326.2.0 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 3646 Func Desc contact; switch
Status Released
Status Date 2010-12-06
Issue Date 2010-12-02
Reference
Attachment

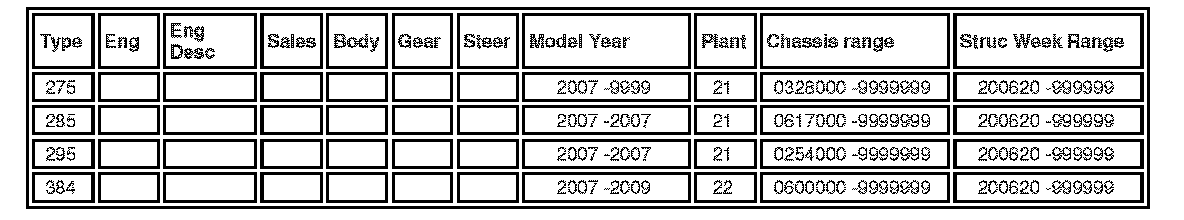

Vehicle Type
CSC
DTC
Text
CSC = Customer Symptom Code
This document supercedes the old one dated 2006-06-19 changes to this document are:
- Format and title changed
If using a printed copy copy of this document, always check for the latest online version.
DESCRIPTION: From MY07 you do not have to download software to activate/deactivate the automatic lock function.
This can be done by the customer via the central locking switch on the driver's side by holding the switch down more than 5 seconds and having the key in position I or II.
If the function is activated the doors lock automatically when vehicle speed exceeds 5MPH (7 km/h) and remain locked until a door is opened from the inside or unlocked using a central locking button.
This is also described in the owner's manual under section: Locks and alarm / automatic locking
SERVICE: The ignition key must be in position I or II press the READ button in the left-hand stalk switch to acknowledge any message in the information display. Hold the central locking switch on the driver's side down more than 5 seconds until you receive a message in the information display "auto lock on/auto lock off"
