Front Bumper Casing, Replacing

Casing

Removing the bumper casing

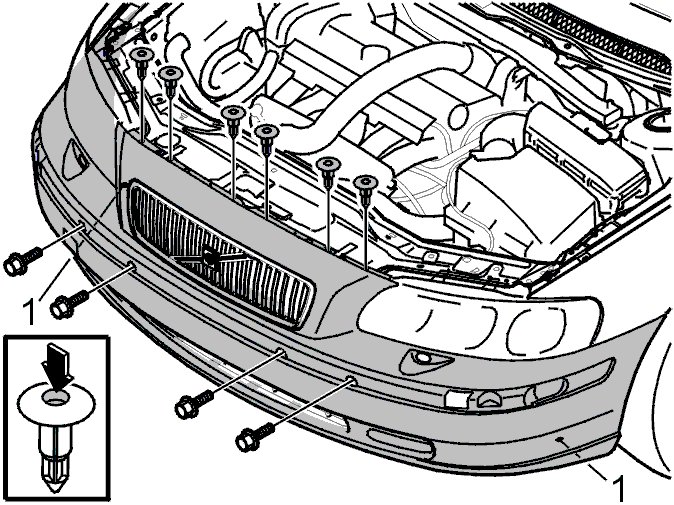

Remove:
- the 2 nuts for the headlamp
- the two screws.
- the two blind rivets (1) according to Removing rivet .
- the six clips.

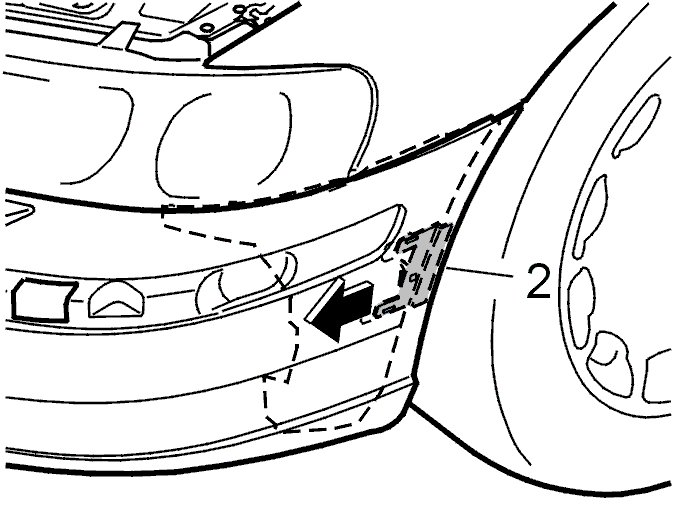

Press down the center section.

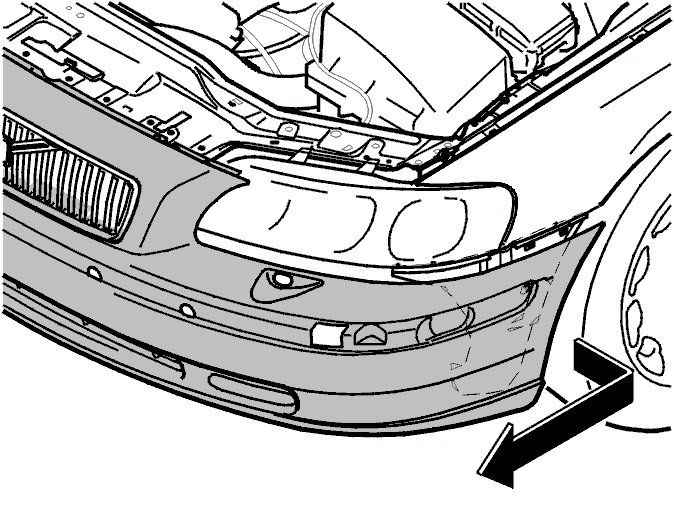

- Remove the bumper.
- Separate the connector for the fog lamp on the left-hand side.
- Remove the casing.





Remove:
- the 2 screws for the slide mounting.
- Remove the bumper.
- Separate the connector on the left-hand side.
- Remove the casing.

Installing the bumper casing

Install:
in reverse order.

Note! Locate the casing in the guide channels.
