Active Headlight (Bi-Xenon(R))

Active Headlight (Bi-Xenon(R))

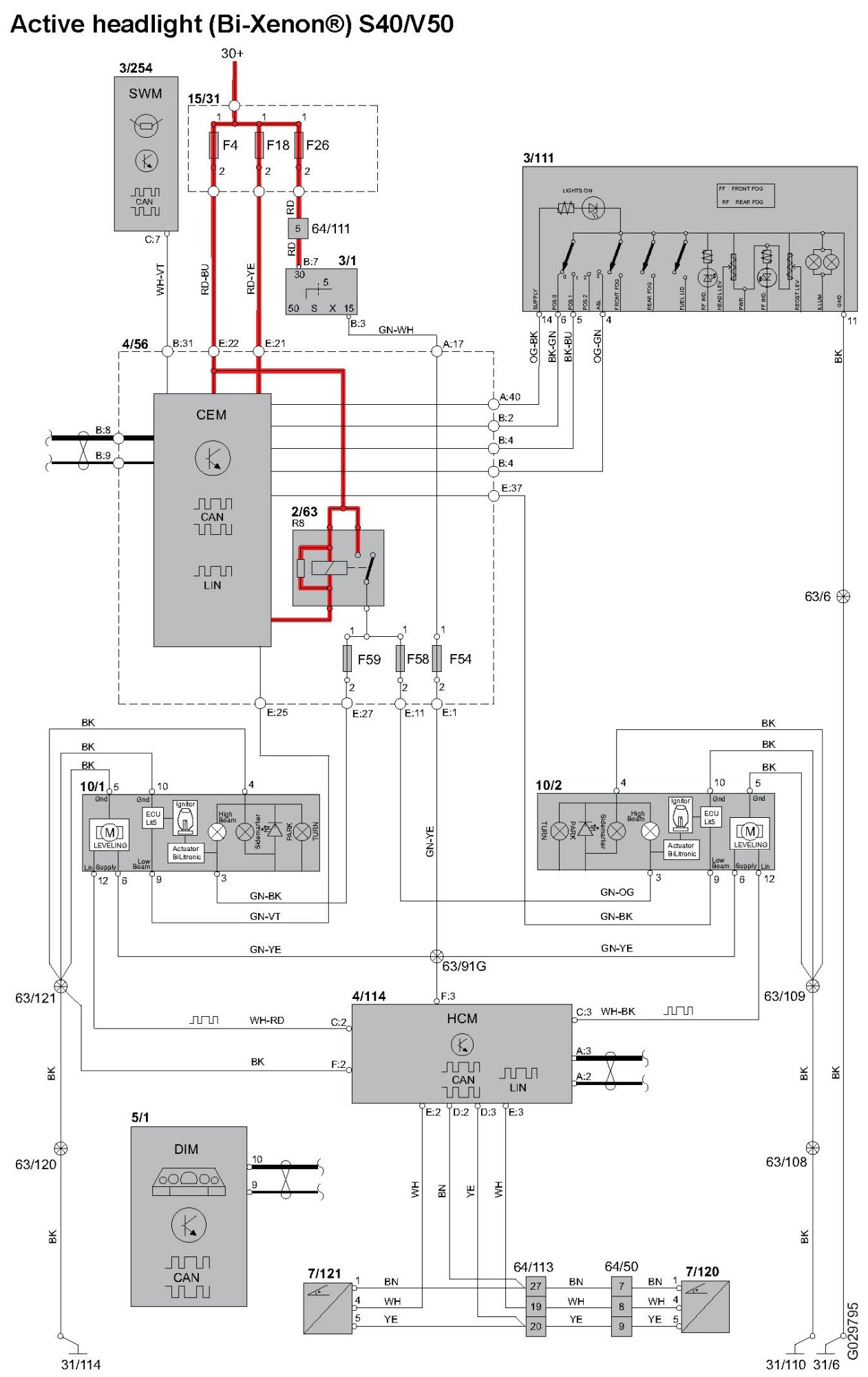

Active Headlight (Bi-Xenon(R)):

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components by Component Number
