Front Seat

Front seat

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.
Disconnect the battery negative lead. See: Battery Disconnecting

Removal

Removing the front seat





Remove:
- the 2 panels located above the front screws for the seat
- the 4 x M10 screws
- the front seat side panel. See: Side panel front seat Side Panel Front Seat
- the end mounting. See: Quick-release connector belt Quick-Release Connector Belt

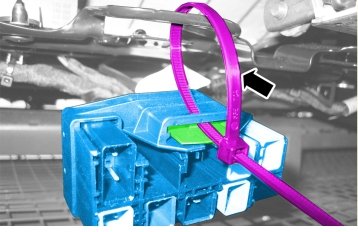

- the screw. Remove the connector under the seat.
Lift out the seat.

Caution! Two people are required for this take to prevent damage to the interior trim or the seat.

Installation

Note! For tightening torques, see Specifications. [1][2]Body and Frame

Caution! Two people are required for this take to prevent damage to the interior trim or the seat.









Install:

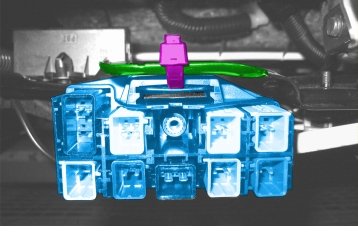

- the connector using the screw
- the 4 x M10 screws
- the 2 panels
- the end mounting. See: Quick-release connector belt Quick-Release Connector Belt
- the side panel as described in Side panel front seat Side Panel Front Seat.

Finishing

Fit the battery's negative cable in accordance with:.
