Protective Tape, C-post

Protective tape, C-post

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

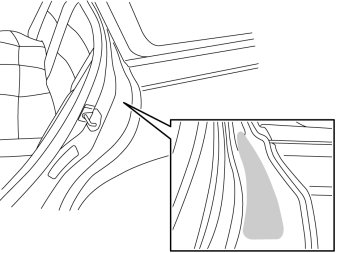

Installing protective tape





Note! When applying the protective tape, the temperature of the underlay must be at least 16 °C (61 ˚F).

Wash clean the surface properly before applying the protective tape.

Installing protective tape, continued

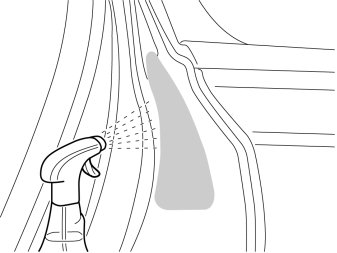

Apply 50/50 isopropanol and water on the area where the protective tape is to be applied.

Installing protective tape, continued

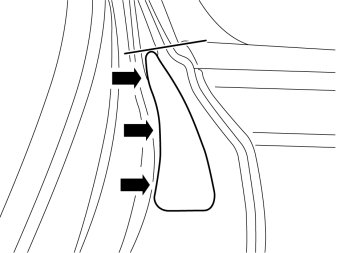

Install the protective tape level with the moldings upper edge of the Q glass and even with the door opening radius, see illustration.

Note! The tape must not go around the radius forward in the vehicle.

Installing protective tape, continued

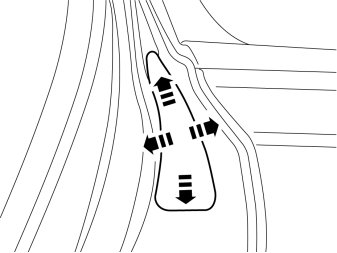

Scrape and press the tape to expel air bubbles or kinks.

Note! The vehicle must not be washed whilst the tape cures, which takes 24 hours.
