Signal Specification, Bluetooth Phone Module (BPM)
Signal Specification, Bluetooth Phone Module (BPM)
Signal Specification, Bluetooth Phone Module (BPM)
Signal Specification
General

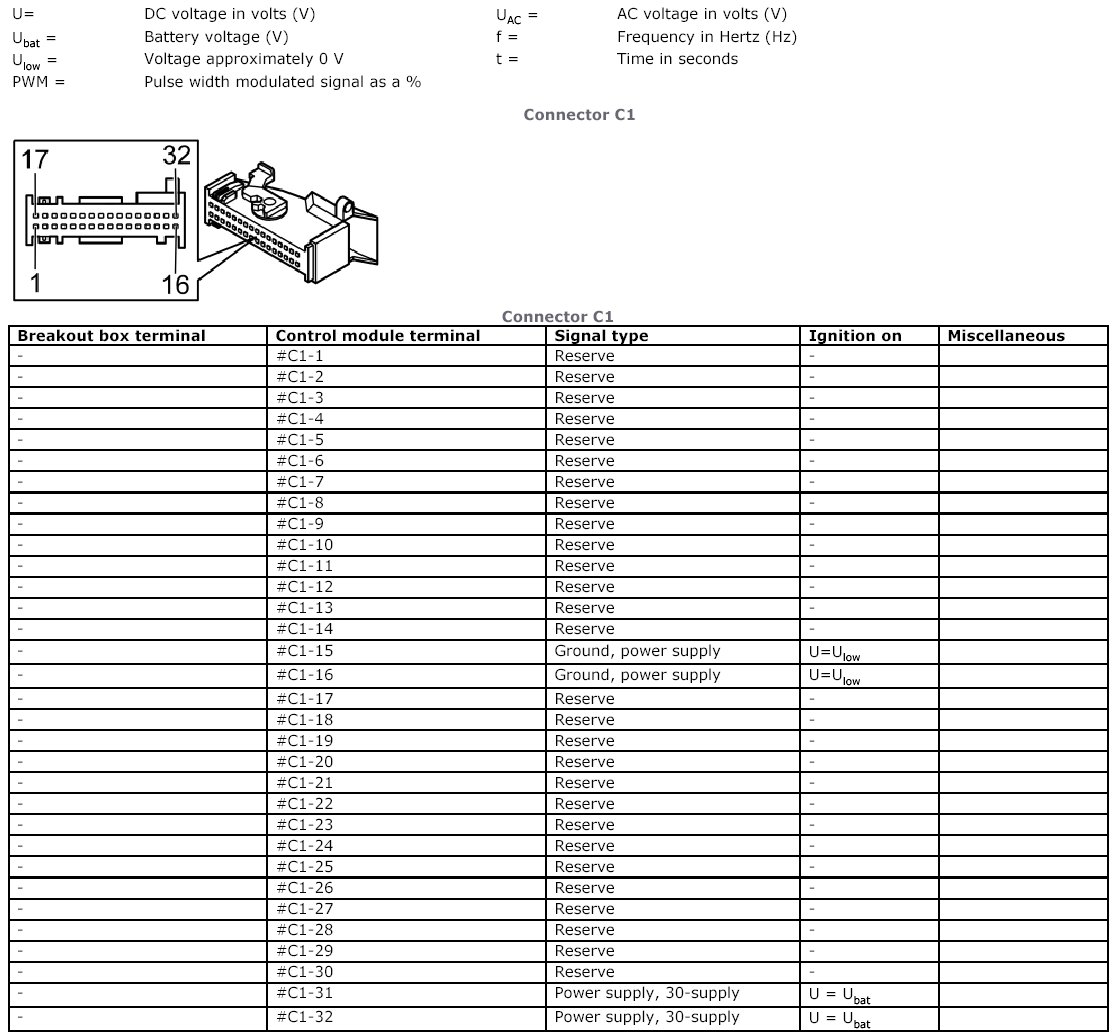

Connector C1:

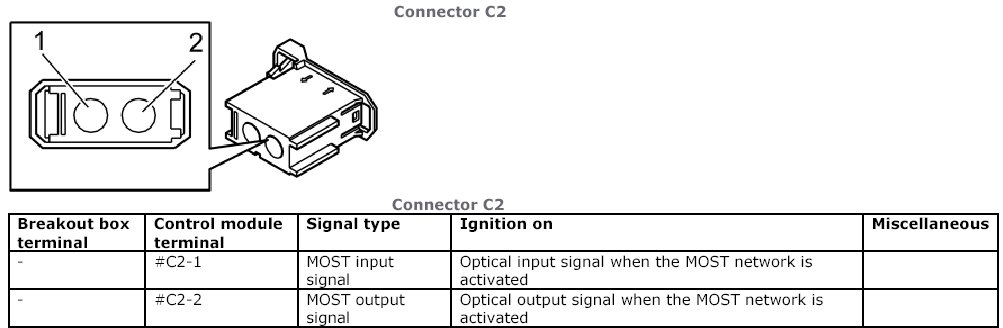

Connector C2:
