Signal Description, Multimedia Module (MMM)



Signal Description, Multimedia Module (MMM)

Signal Specification

General
All the values given below are between the respective terminal in column 1 and terminal #A5 in column 2 (power ground) unless otherwise stated in brackets after the table entry.

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings.

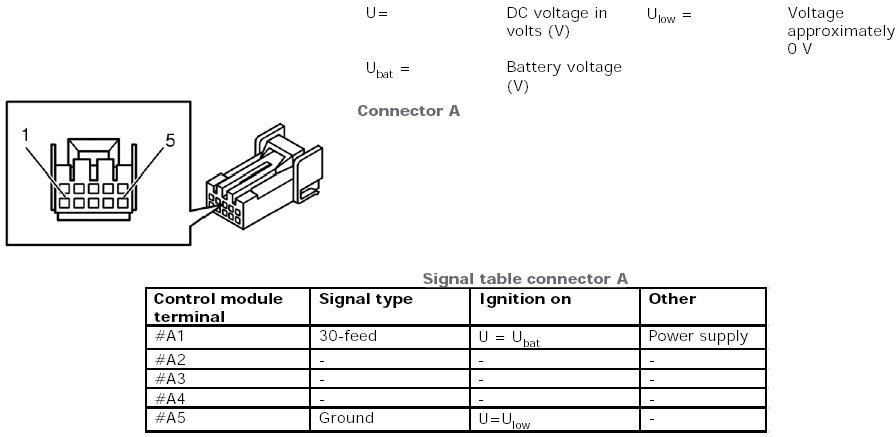

Connector A:

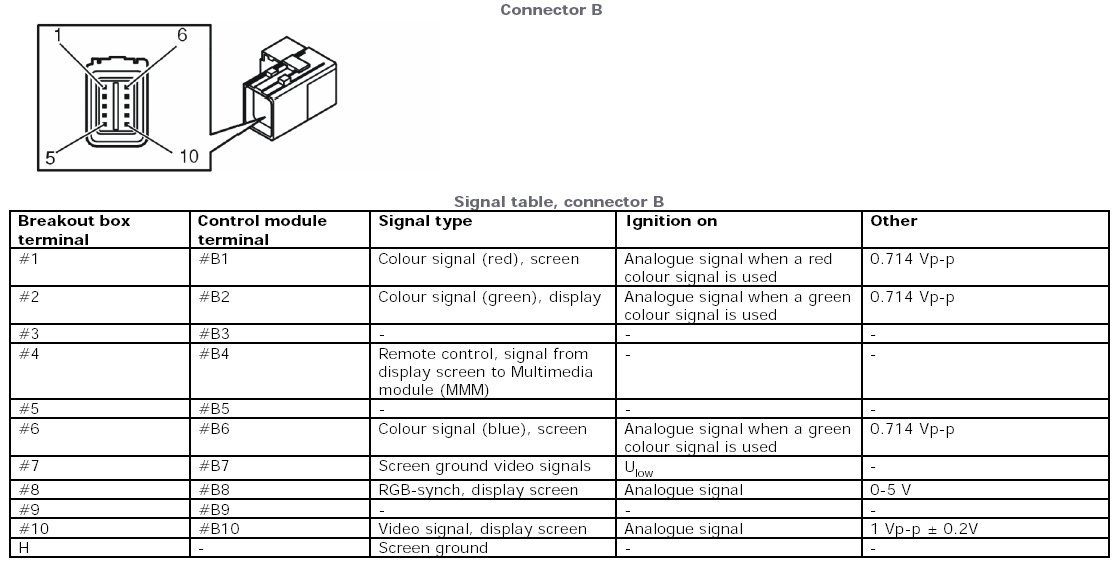

Connector B:

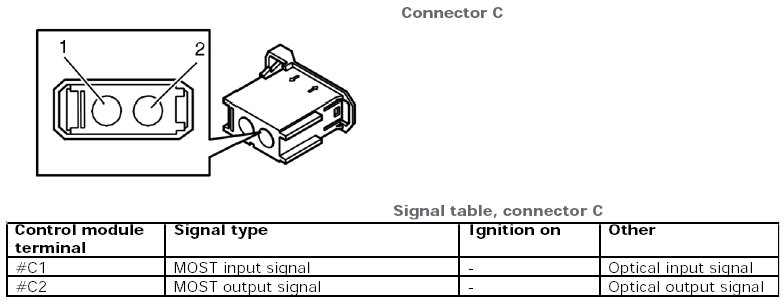

Connector C:




Connector D:

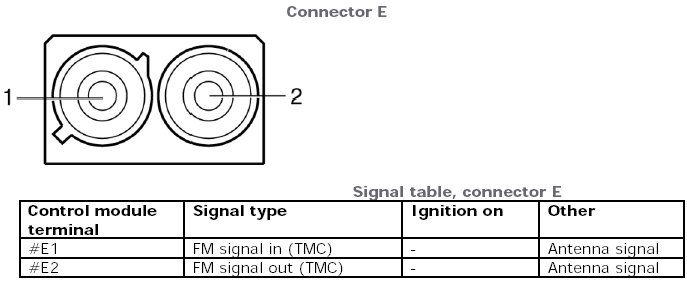

Connector E:
