Signal Description, Integrated Audio Module (IAM)

Signal Description, Integrated Audio Module (IAM)

Signal Specification

General
All the values given below are between the terminals stated in column 1 and terminal #A8 in column 2 (power ground). This applies unless otherwise indicated in brackets.

NOTE: It is important to connect the breakout box and check the ground connections before starting to measure.

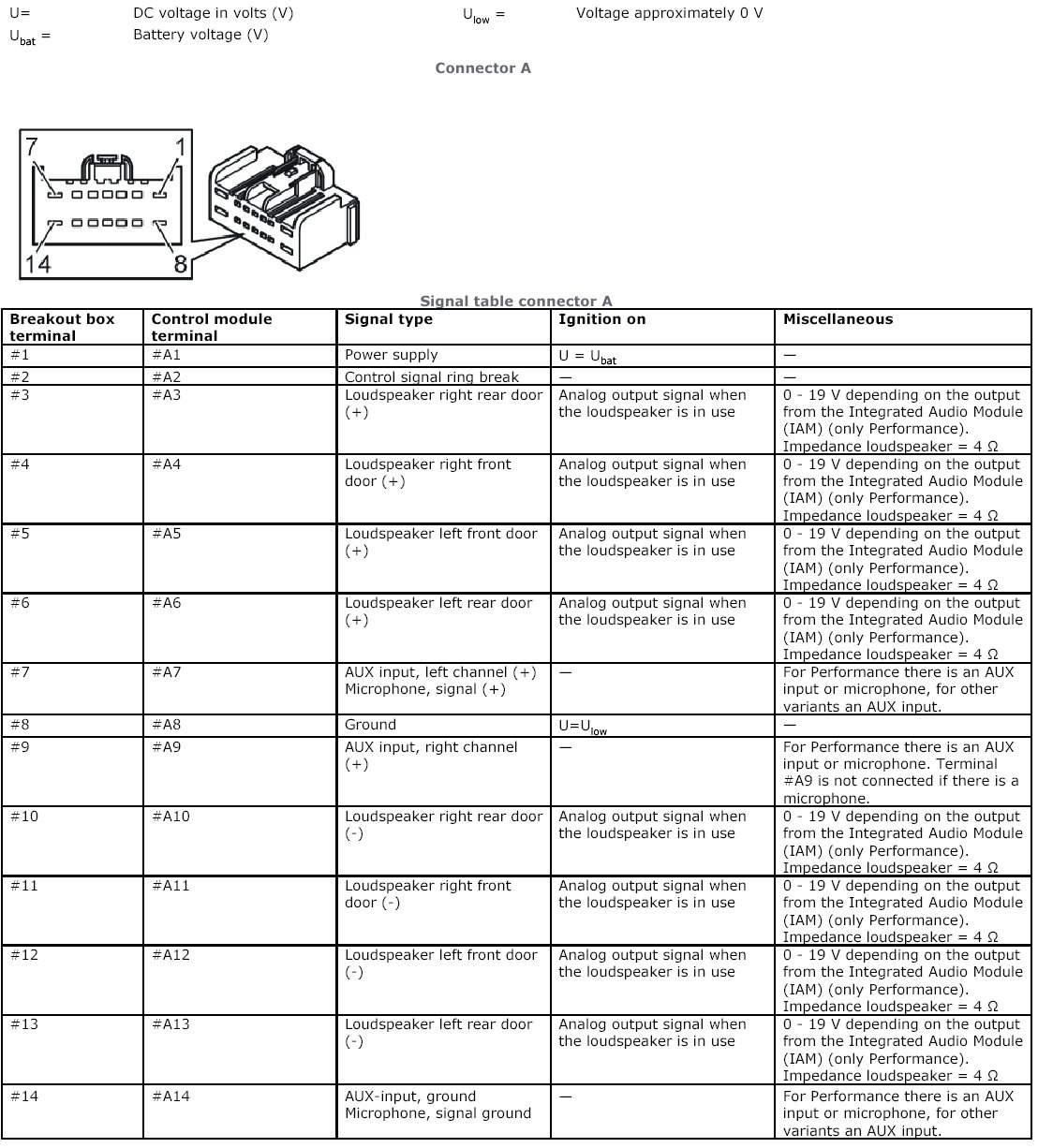

Connector A:

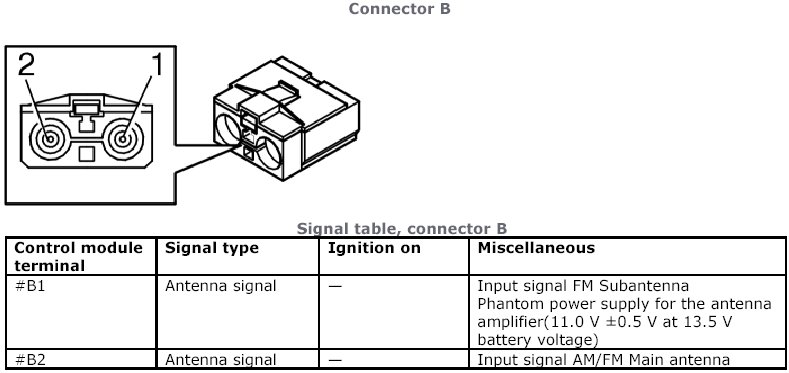

Connector B:

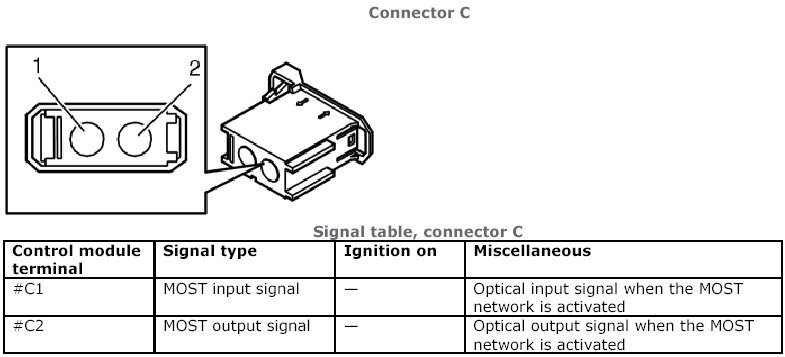

Connector C:

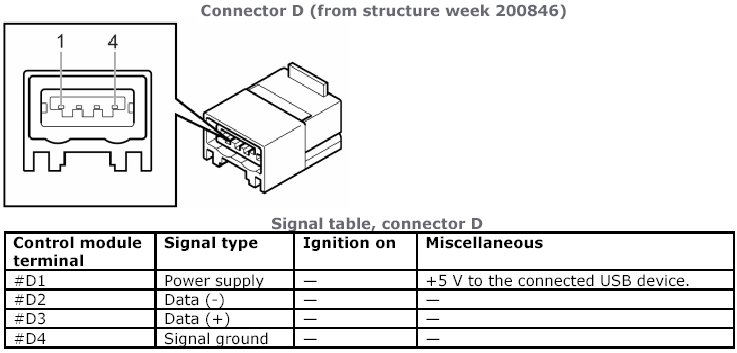

Connector D (From Structure Week 200846):
