Signal Specification

Signal Description, Central Electronic Module (CEM)

Signal Specification

General
All the values given below are between the connections in column 1 and connection #A28 in column 2 (power ground). This applies unless otherwise indicated in the last column.

NOTE: It is important to connect the breakout box and check the ground connections before starting to measure.

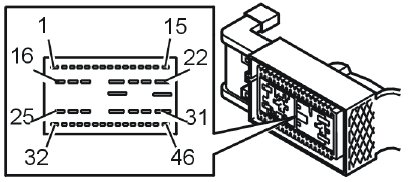

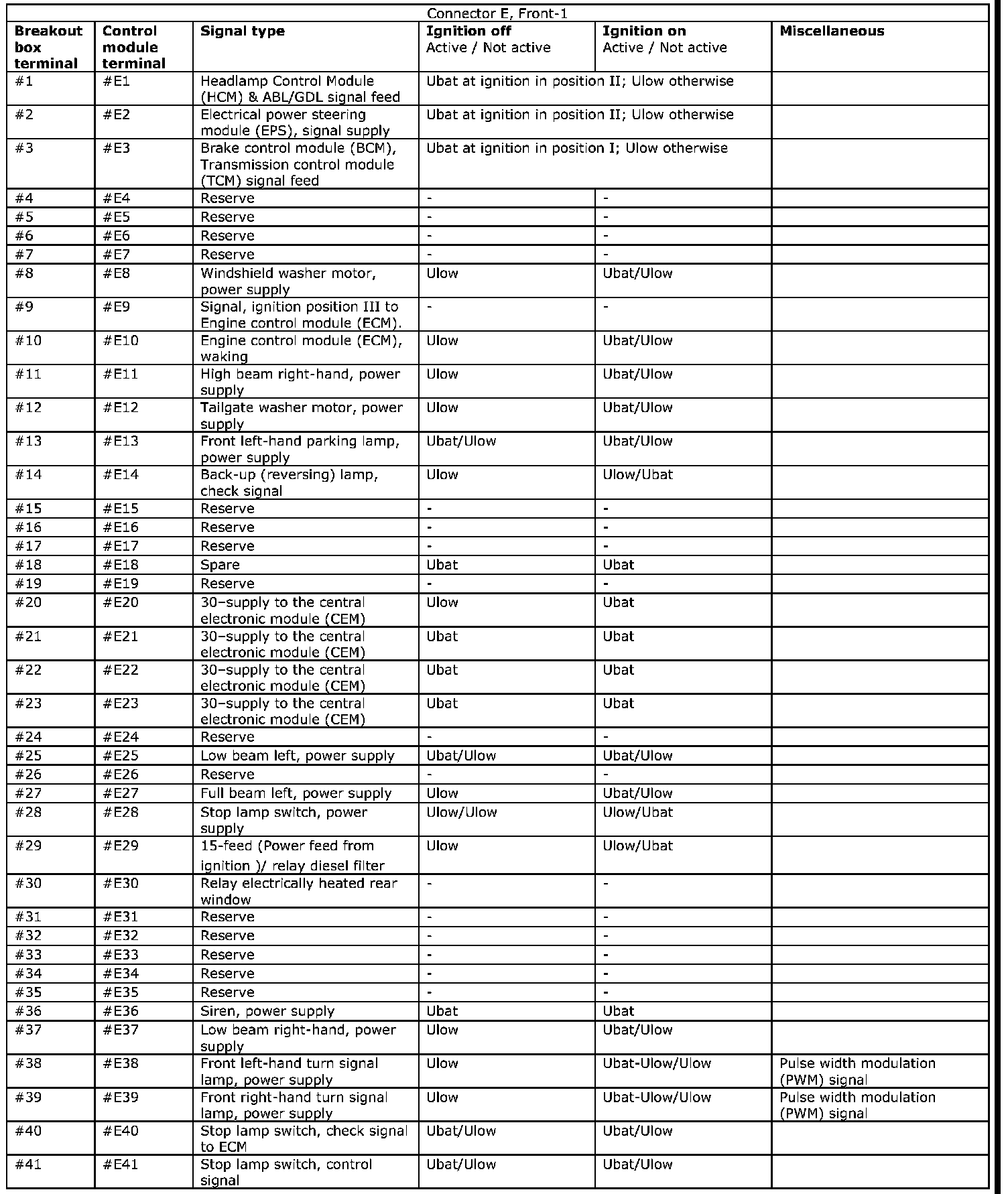

Connector E, Front 1:

Connector E, Front 1:

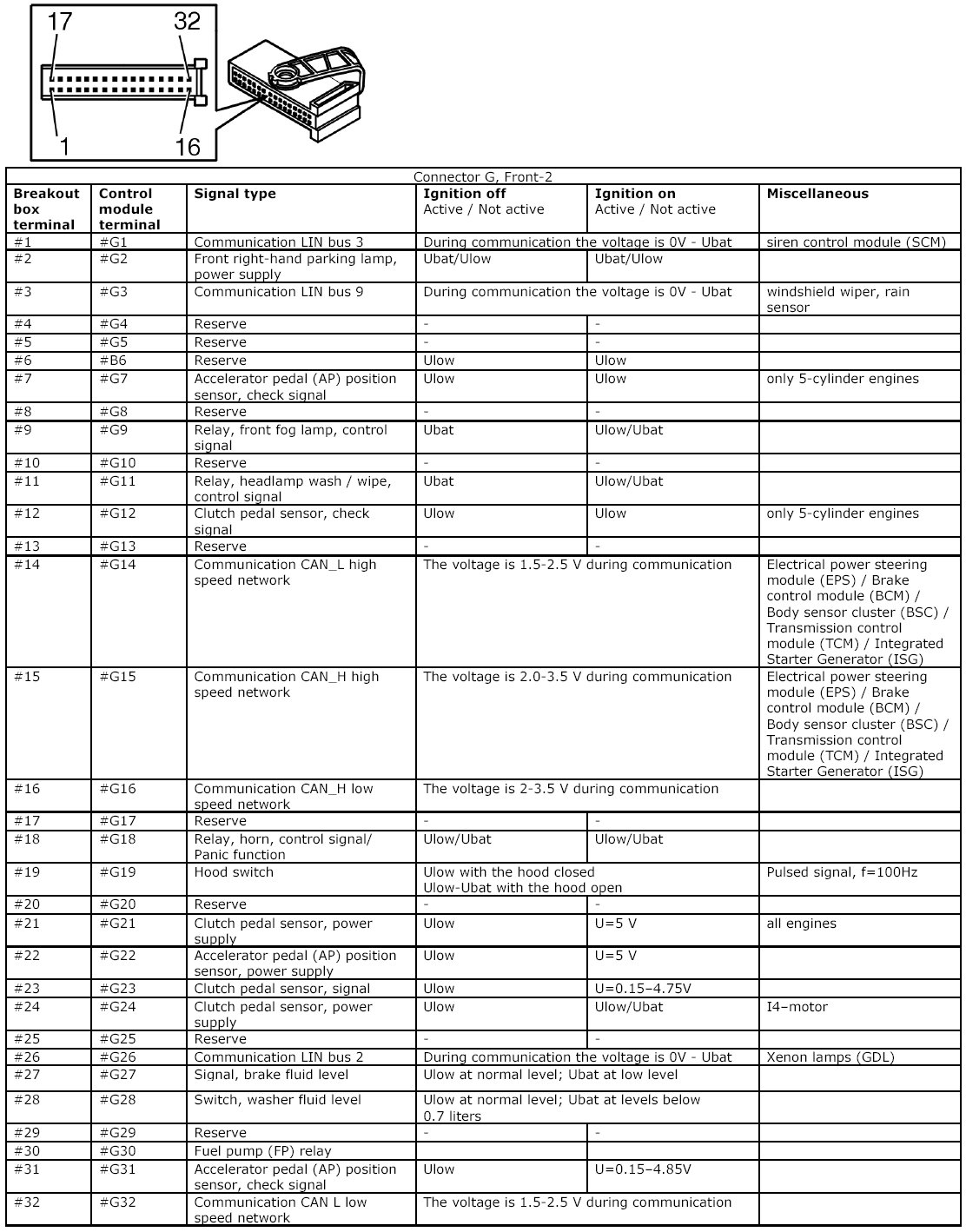

Connector G, Front 2:

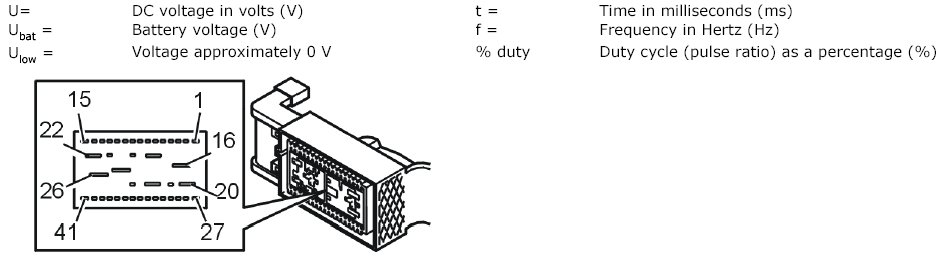

Connector A, Cockpit-1:

Connector A, Cockpit-1:

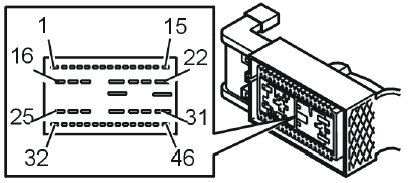

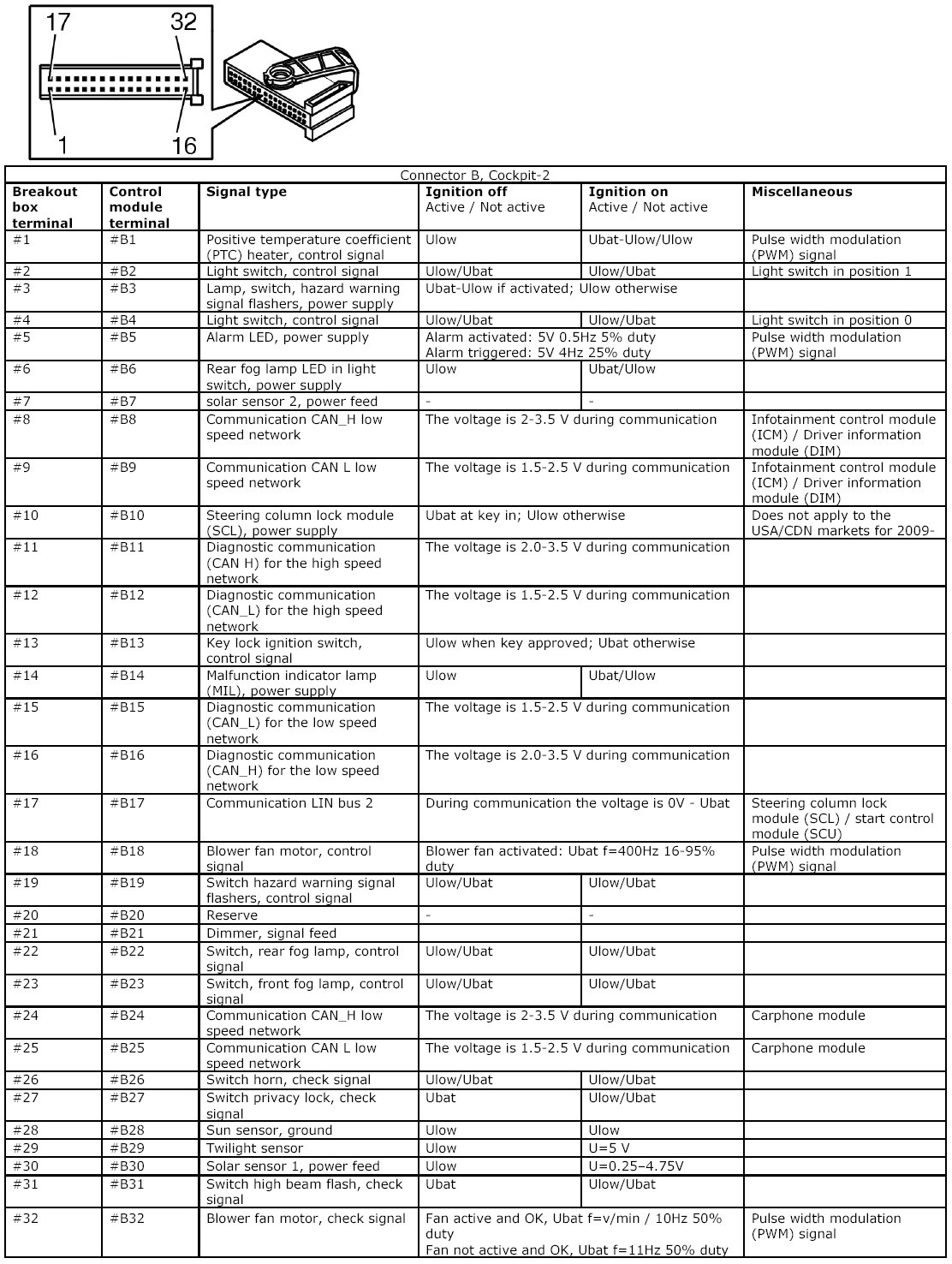

Connector B, Cockpit-2:

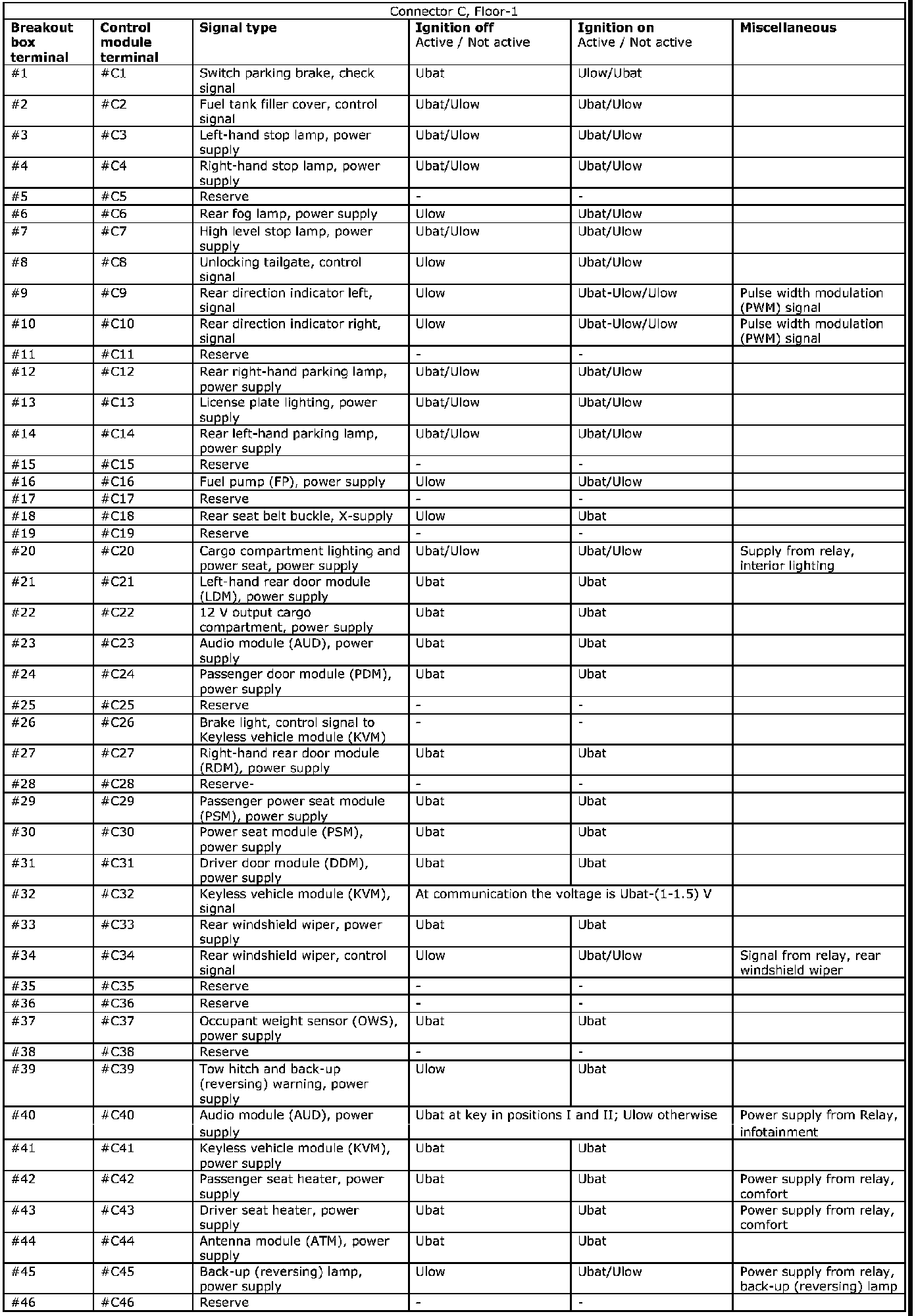

Connector C, Floor-1:

Connector C, Floor-1:

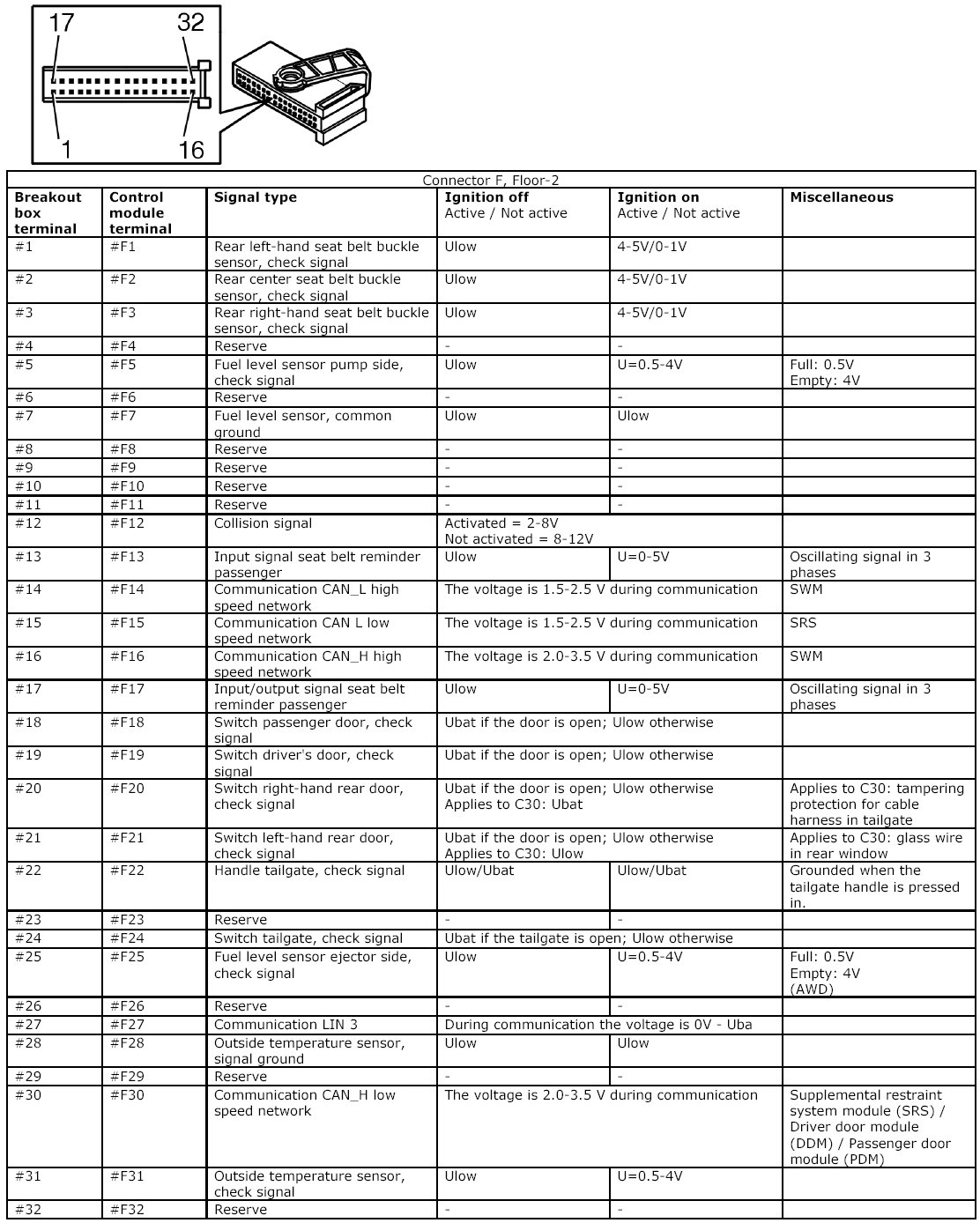

Connector F, Floor-2:

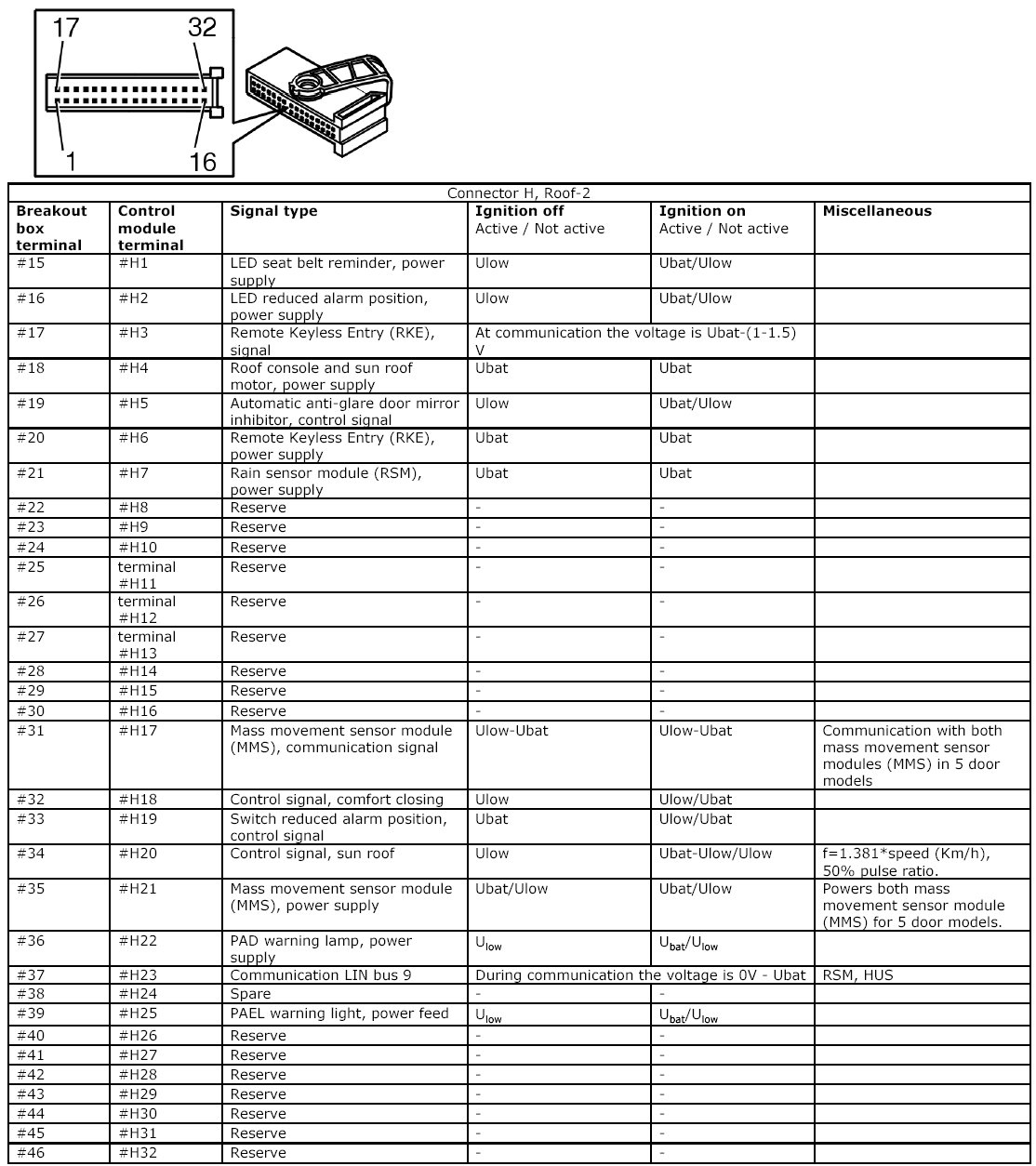

Connector H, Roof-2:

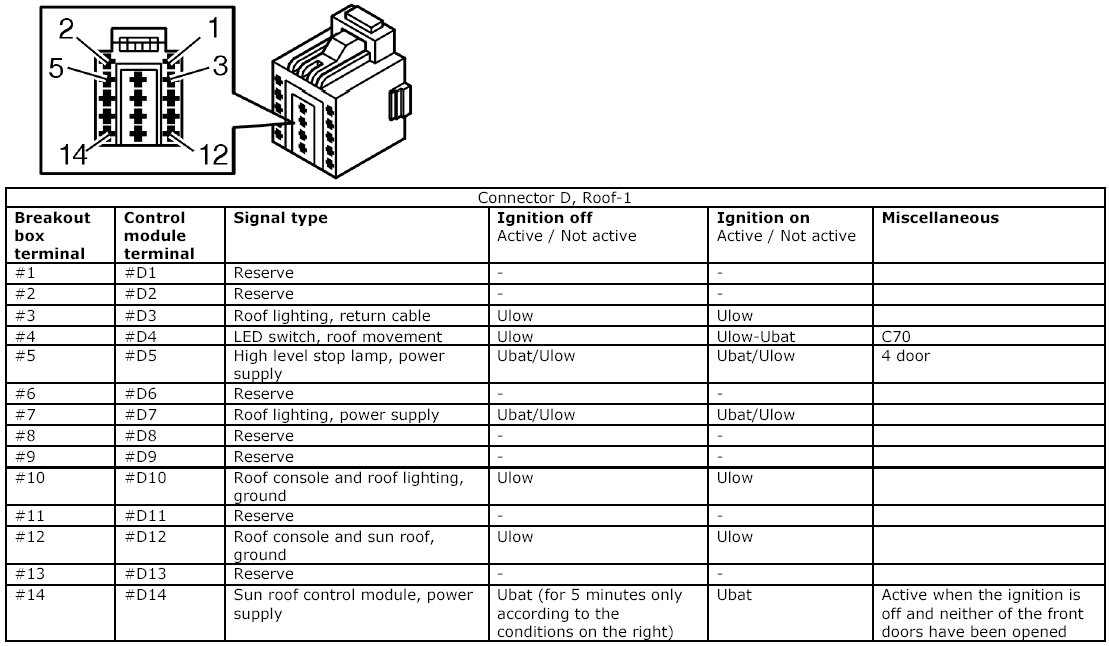

Connector D, Roof-1:
