Changes Introduced Up to and Including June 2008

Engine Management System, Turbo

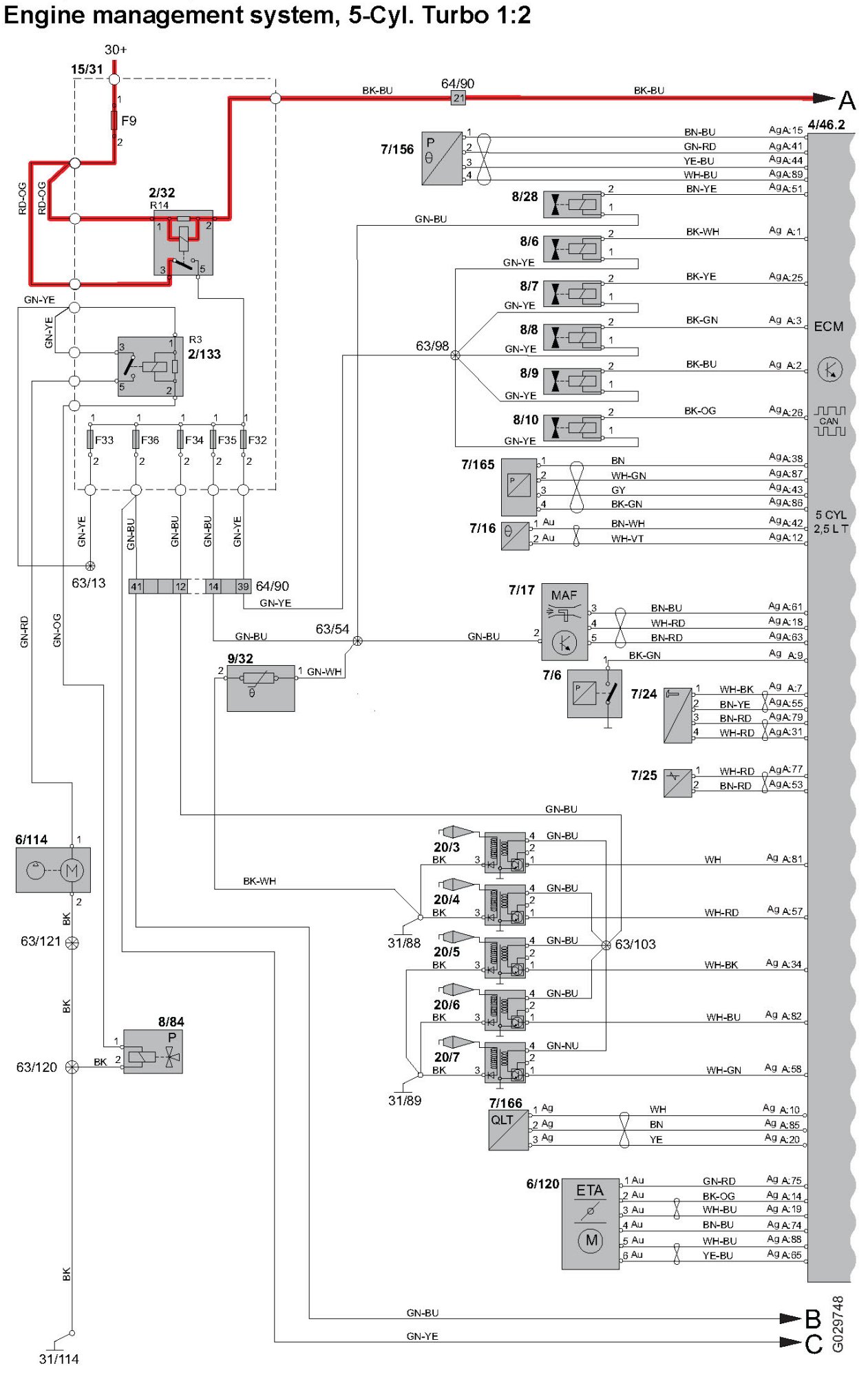

Engine Management System 1:2:

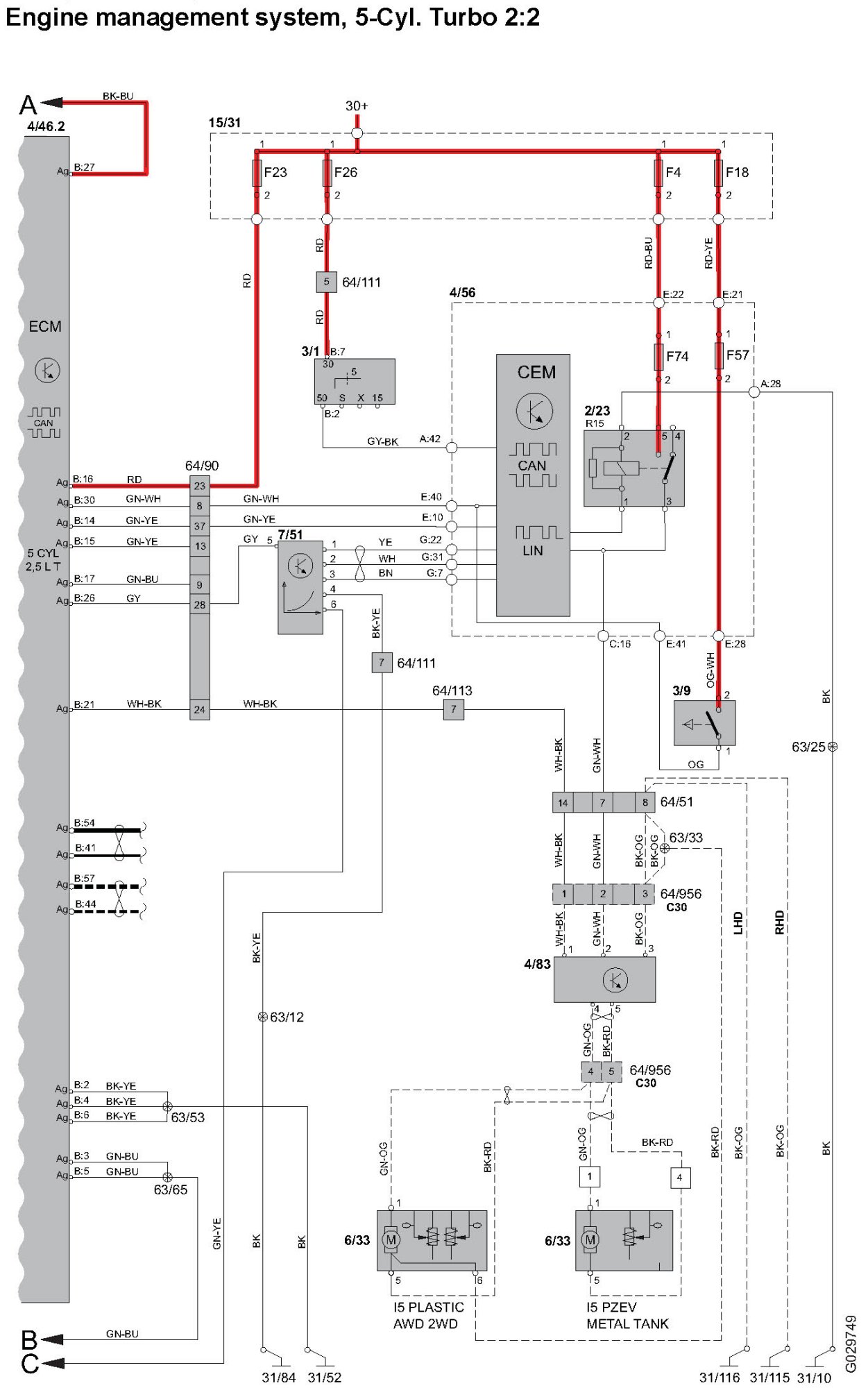

Engine Management System 2:2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components by Component Number
