Part 2

Navigation system, portable, Installation kit TMC (Continued)

Note! Make sure that the optic cables are not bent or stretched. They may not be bent with a radius less than 25 mm (1").

- Remove the two screws from the bottom of the media player.
- Pull out the media player and detach the connectors on the rear side.

Applies to cars with and without speaker grilles

- Press in the catch and disconnect the connector on the underneath of the GPS cradle.

- Disconnect the two green connectors on the cable for the cradle from each other. Follow the disconnected cable from the cradle, the connectors are inside the dashboard.
- Place the short cable to one side. A new cable is in the kit.

- Take cable harness A and TMC unit C from the kit and connect the larger green connectors to each other.

- Take the foam tape from the kit and remove the protective tape from it.

- Wrap the foam tape around the ferrite and the green connectors to prevent any rattling.

A

- Now take the gray connector on the joined cable harnesses and connect underneath the GPS cradle.

B

- Connect the two remaining small green connectors to each other.

A

- Carefully pry up and remove the catch in the receptacle housing on the cable terminal for the socket marked 1 in the contact to the media player. Use a thin pointed object.

B

- Carefully pry up the two small catches at the rear edge of the receptacle housing and carefully pull out the cable terminal.

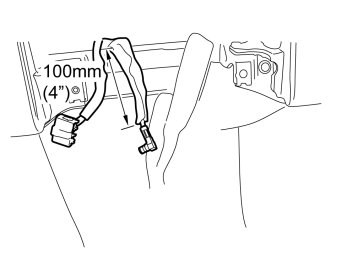

- Separate the two cables in the antenna cable harness for the media player from each other approximately 100 mm (4").

- Take the antenna cable B from the kit. Carefully pry up the catch and pull out the cable terminal from the receptacle housing.

- Take the newly removed receptacle housing and carefully push it into the loose cable terminal on the contact in the cable for the media player.

- Take the loose cable terminal in the antenna cable B and carefully secure the receptacle housing to the cables for the media player.

- Press the catch securely into the receptacle housing.

- Connect the previously disconnected cable terminal on the cable from the media player's receptacle housing to IN on TMC unit C.

- Connect the remaining end to antenna cable B to OUT on TMC unit C.

- Take the foam tape from the kit and remove the protective tape from it.

- Wrap foam tape around the TMC unit.

- Clamp the cable excess around the TMC unit using a cable tie from the kit. Ensure that there is enough excess to connect the antenna cable to the media player and the cable to the GPS cradle.

- Place the cable excess and TMC unit C in the space under the location for the media player.

A and B

- Connect the disconnected connectors to the media player.

Note! Space is confined at the media player and there are many cables so take care to ensure that it is positioned so that no cables are trapped or are at risk of being chafed.

- Install the media player and tighten using the two screws.

A and B

- Now position the cable harnesses from the GPS cradle and the hazard warning flasher in-between the two air ducts, when pushed into position.
- Secure the two small green connectors from the thin cable harness from the GPS cradle using a piece of butyl tape in a suitable position to prevent rattling.
- Connect the connector to the hazard warning flasher. Check between the ribs in the outlets so that the cables do not obstruct the air ducts.
- Carefully press the outlets into place.
