Part 1

Navigation system, portable, Installation kit TMC




















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Navigation system, portable, Installation kit TMC





Note! On cars being installed with the portable Navigation system and TMC kit, the short cable harness in the Navigation system kit (see image) must not be used. It must be replaced with cable harness A in the TMC kit.

Applies to all models




- Turn the ignition key to position 0.
- Disconnect the battery negative lead.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

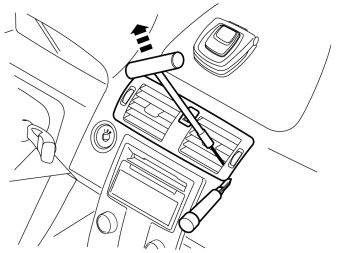

- Remove the ventilation outlet by carefully inserting special tool 9995919 between the ribs and carefully pulling up the four catches on the lower edge. Carefully pry using a weatherstrip tool.

Note! Pay particular care to the dashboard and the outlet ribs. These can easily be damaged as the outlet is mounted very firmly.

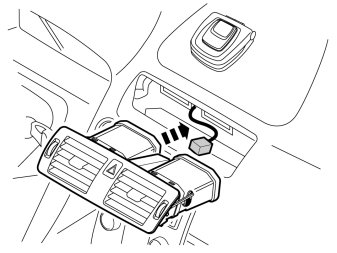

- Unplug the connector for the warning flashers and move the unit aside.




- Open the glovebox.
- Carefully pry off the panel inside the center console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
- Pull the panel away downwards.




- Remove the rubber mat and storage compartment.




- Detach the surround around the display and the media player by pressing in the catch at the edge of the media player cover. Use a small screwdriver. Carefully pry off the surround at the corner. Use a plastic weatherstrip tool.

Note! Do not damage the panel and dashboard.

- Repeat the operation on the other side.

Hint: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.

- Fold the surround backwards. Remove by pulling upwards.




- Press out the display module from the reverse of the center console. Use both hands and press straight back.
- Disconnect the two connectors. Put the display to one side.




- Carefully pry loose and remove the hand brake lever's panel.





Applies to cars with manual gearbox




- Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.




- Loosen the gearshift knob from the shift by pressing down the knob and turning it slight more than a 1/4 turn anticlockwise and pull it up.

Applies to all models




- Remove the two screws holding the center console at the rear edge.

Applies to the C70




- Remove the rear seat cushion by first pressing the outer edges of the cushion backwards and then by pulling them upwards so that the outer hooks release.




- Lift the cushion straight up in the middle so that the inner hooks release.




- Remove the rear cup holder from the rear tunnel compartment by prying at the leading edge and pressing in the catches, first at the leading edge and then on the sides.




- Remove the screws.




- Remove the rear tunnel compartment by pulling it upward (1) rearward (2) so that it releases from its catches.

Applies to all models




- Remove the two screws along the front edge of the tunnel console.

A and B




- Carefully pull up the lock catch with special tool 9995919. At the same time, slide the whole tunnel console backward so that the two rear screws in the center console's panel can be accessed.









- Remove the two screws.




- Remove the two screws holding the center console to the dashboard.
- Remove the connector on the reverse of the dashboard environment panel.
- Remove the center console's panel from the dashboard and tunnel console.




- Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.
