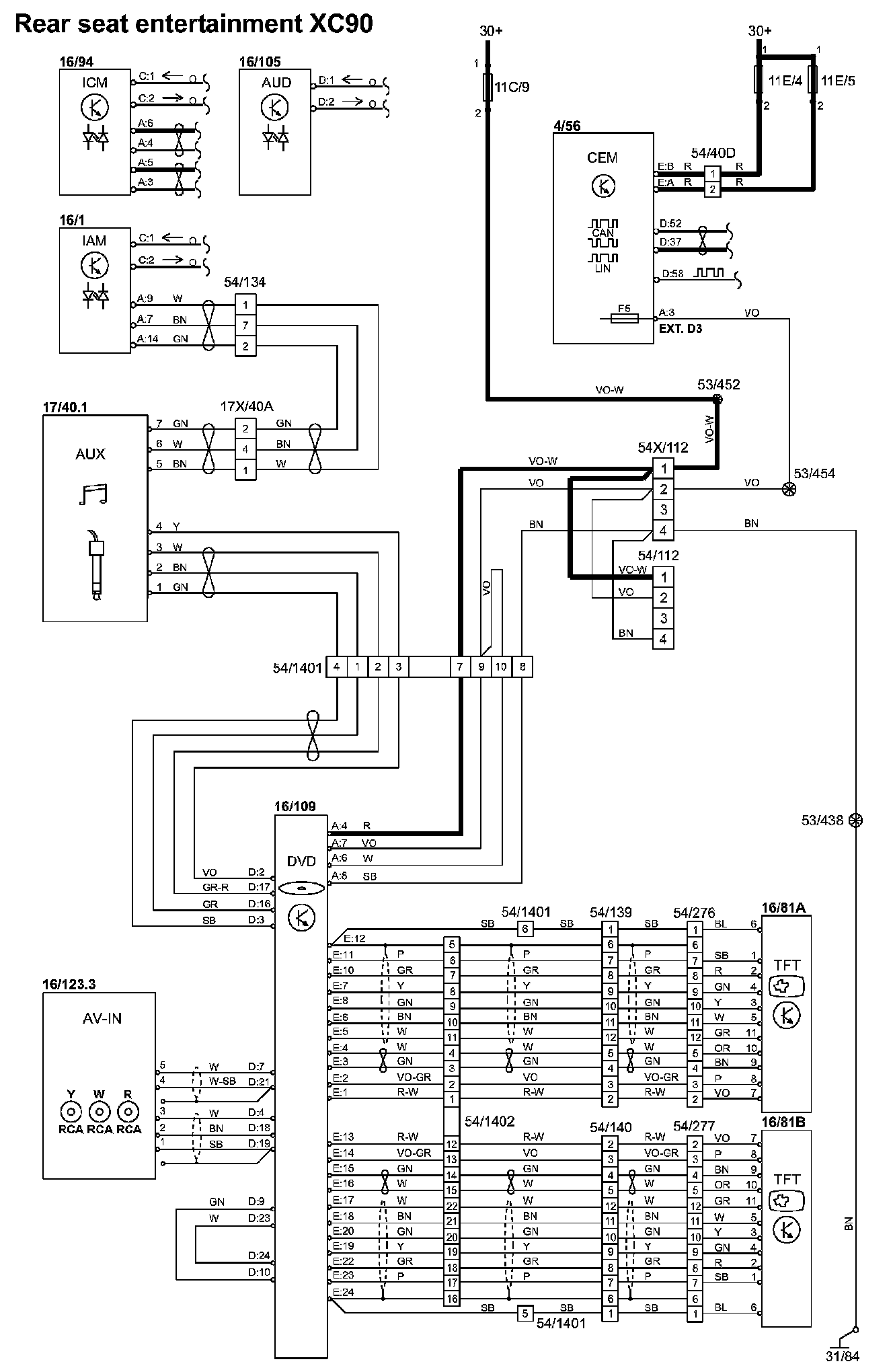

Rear Seat Entertainment

Rear Seat Entertainment

Rear Seat Entertainment - Other:

Rear Seat Entertainment - Other, Accessories:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
