Home >> Volvo >> 2008 >> V50 T5 AWD L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> System Diagram >> Changes Introduced Up to and Including April 2007 >> Rear Window Wiper/Washer

Rear Window Wiper/Washer

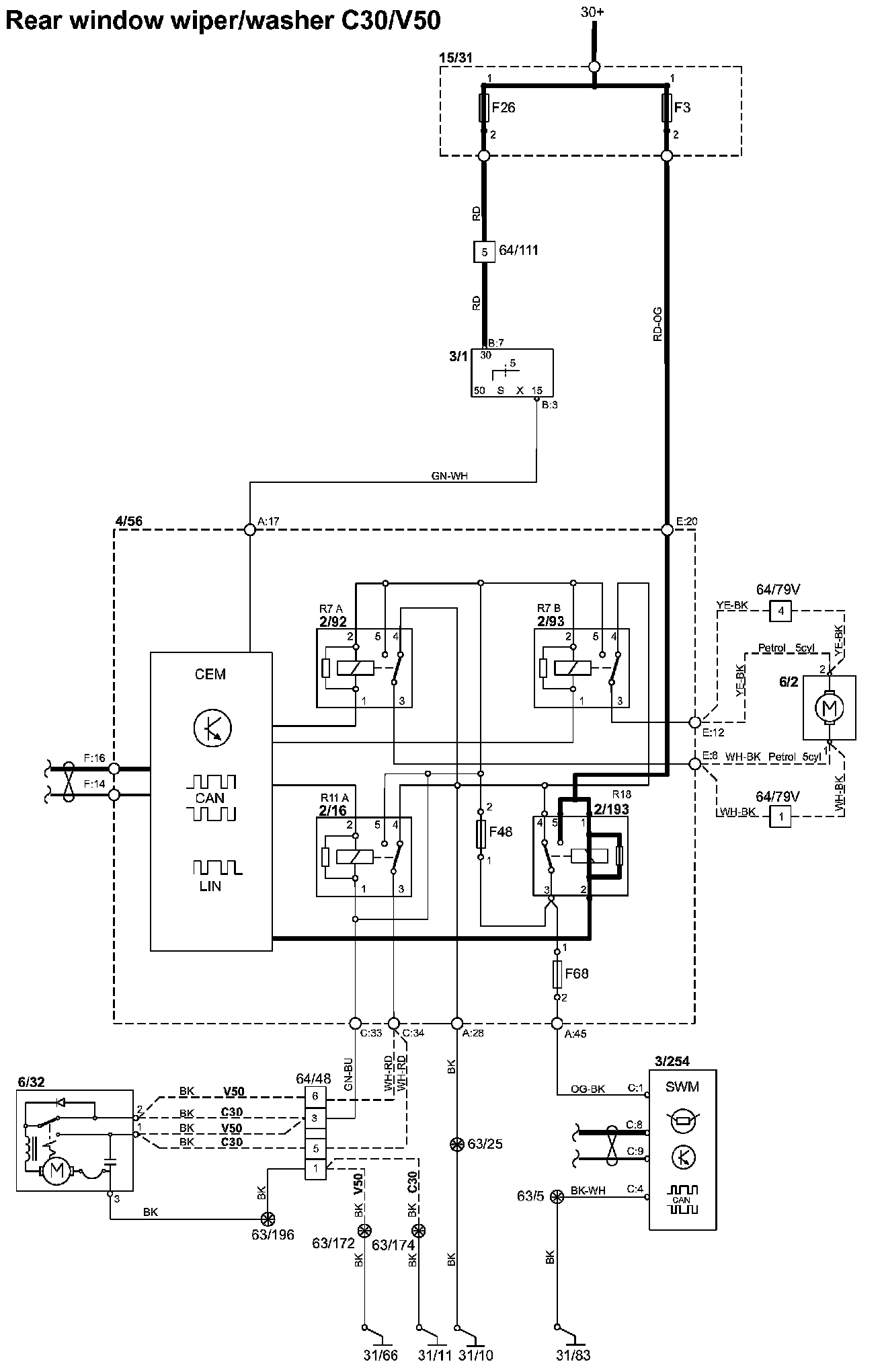

Rear Window Wiper/Washer C30/V50


Rear Window Wiper/Washer:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
