Wiper and Washer Systems: Adjustments

Wiper blade and wiper arm adjustment

Note! Some variation in the illustrations may occur, but the essential information is always correct.

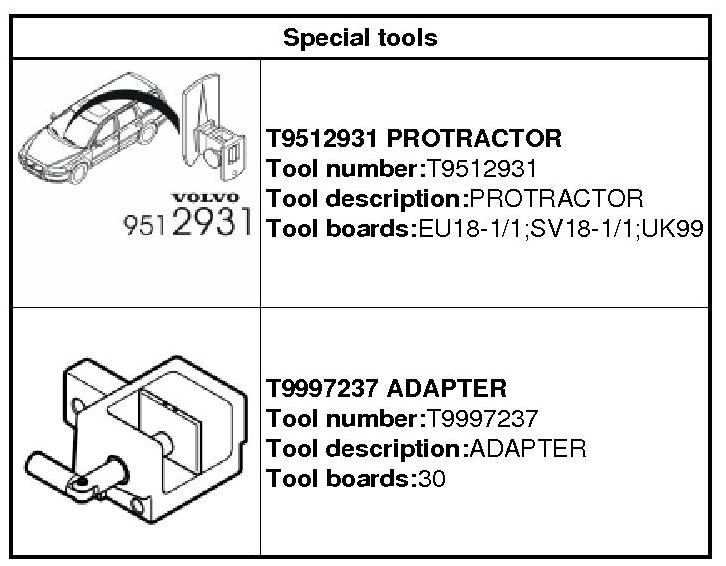

951 2931 Protractor 951 2931 Protractor
999 7237 Adapter 999 7237 Adapter





Note! Make sure that the wiper motor is in the parked position.

Remove the wiper blade.









Caution! Do not damage the wiper arm surface. Use tape to protect the wiper arm.

Note! It is important that the protractor lies against the window.

Correct angle:
- LHD - 5°.
- RHD + 5°.

To install, reverse the removal procedure
