Body - Wind Noise Near Small Window At Rear Door

Title Wind noise rear door

Ref No US21898.2.0 en-US

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 8311

Func Desc side door, complete

Status Released

Status Date 04-11-2012

Issue Date 03-26-2012

Reference VIDA





Attachment

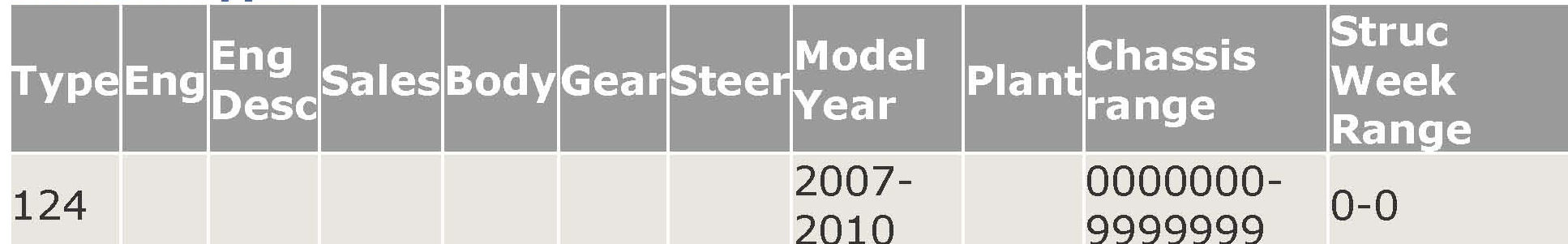

Vehicle Type

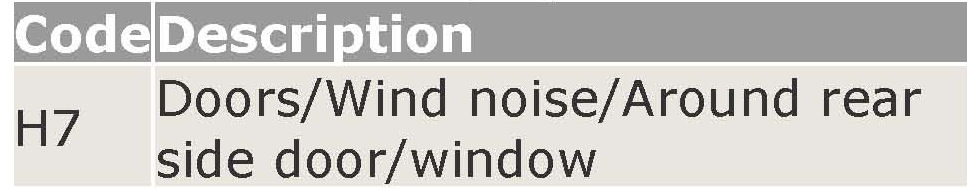

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes
Text

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code

Note!
If using a printed copy of this Technical Journal, first check for
the latest online version.

DESCRIPTION:

Windnoise may appear at the rear end of the rear door near the small
window.

SERVICE:

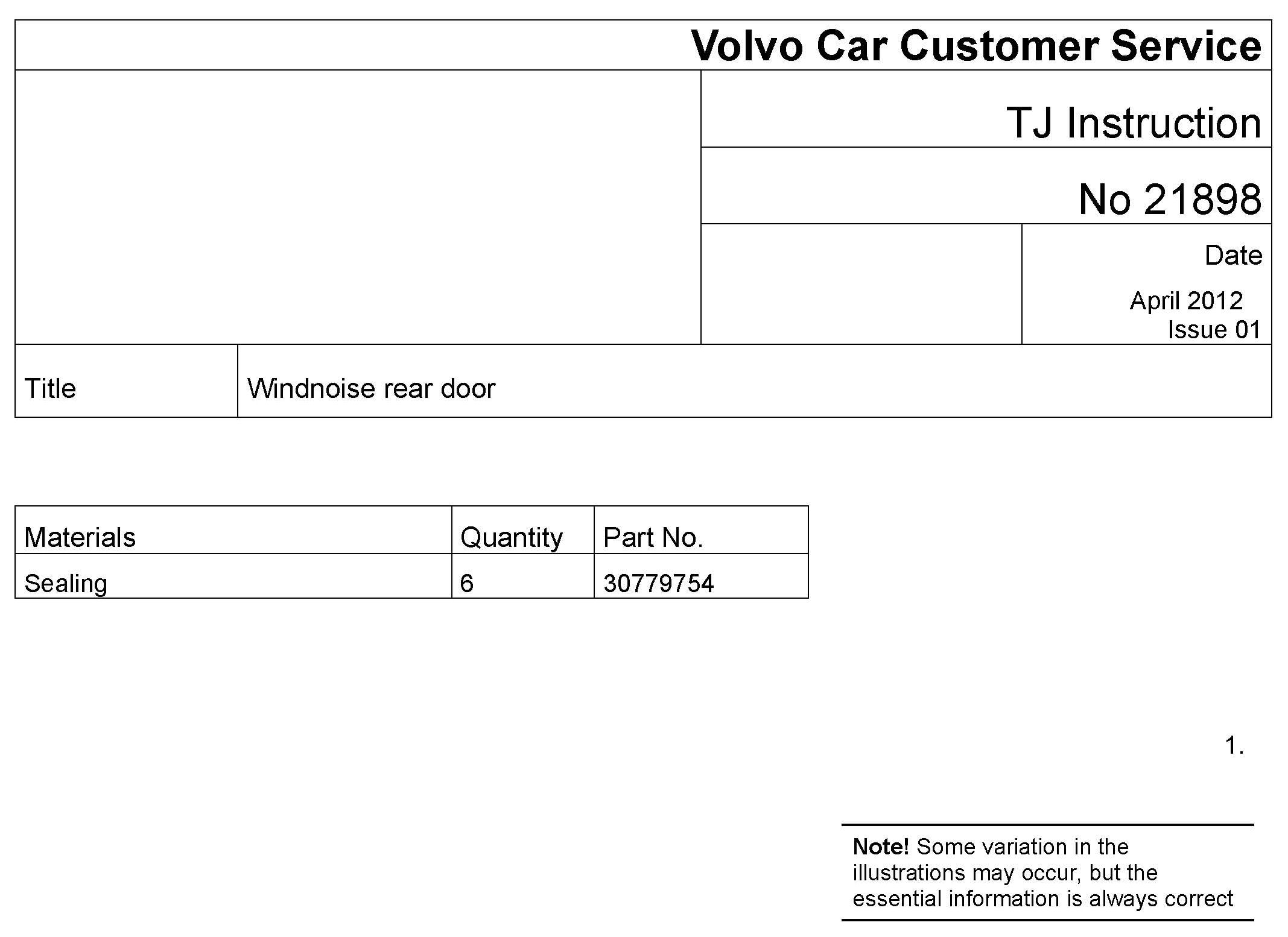

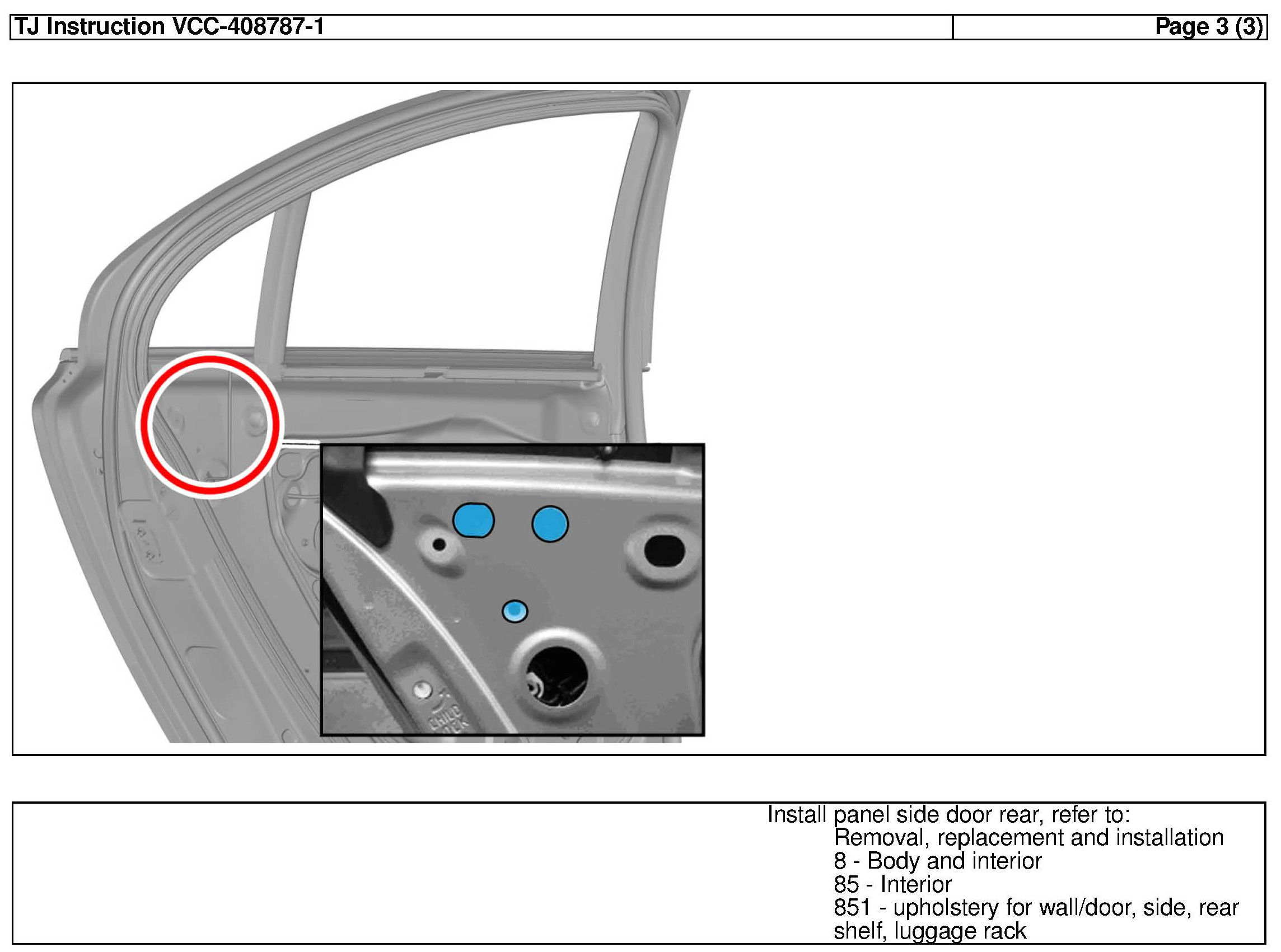

See attached repair instruction

VOLVO STANDARD TIMES GUIDE (VSTG) INFO:

Operation number *85122-2* - **Panel side door rear remove-install ** -
"See VSTG"
Operation number *99400-2* - **General Check/Adjust ** - "0.1 hours"

- Claims may be submitted under the new car warranty when there is a
documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.

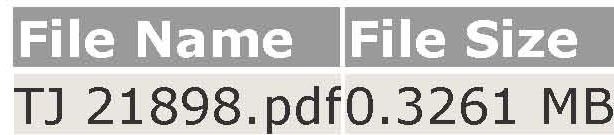

To view TJ attachment continue
