Drivetrain - Rear End Auxiliary Drive Bearing Noise
TIE Technical JournalTitle B6324S & E6304T Bearing nose from Rear End Auxiliary Drive (READ) gear
Ref No US 19079.1.4 en-GB
Issuer -
Partner 3 US7510 Volvo Cars North America
Func Group 2100
Func Desc engine
Status Released 2011-01-11
Status Date 2011-01-07
Reference VIDA, VSTG
Attachment

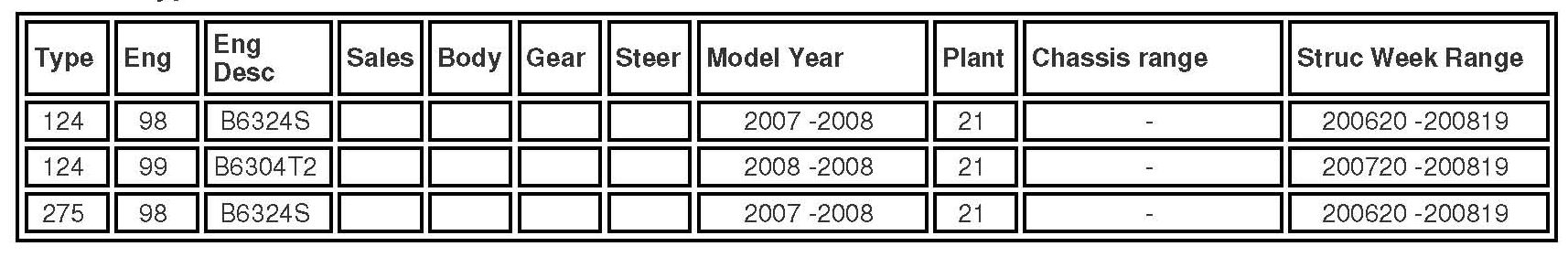

Vehicle Type
CSC
DTC
Text

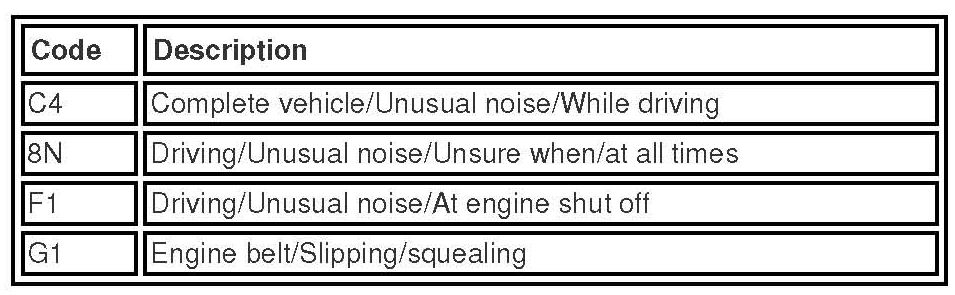

CSC=Customer Symptom Code
DTC=Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
NOTE!
THIS DOCUMENT SUPERSEDES THE PREVIOUS RETAILER TECHNICAL JOURNAL 19079 DATED 05-12-2008.
The labor operation code has changed and the procedure has been removed from this TJ since it can now be found in VIDA. PLEASE UPDATE YOUR FILES.
DESCRIPTION:
There may be a bearing noise from the Rear End Auxiliary Drive (READ) gear housing that is most noticeable around 1500 - 1800 rpm in neutral gear. This may be due to a faulty carrier bearing for the intermediate gear (idler shaft gear).
SERVICE:
Verify that the noise is actually coming from the gear housing using a stethoscope or the Chassis Ear toolkit. Replace the idler shaft gear set following the replacement procedure in VIDA.
If the vehicle you profiled is missing a procedure for removal profile a 2007 S80 B6324S AWD and follow these paths:
For removal:
INFORMATION
REPAIR
REMOVAL REPLACEMENT AND INSTALLATION
Engine with mountings and equipment
Engine
Transmission
Rear End Accessory Drive
It is undetermined when the missing procedures will be implemented into VIDA.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number 21505-2 - Transmission accessory drive rear replace - See VSTG
Operation number 99521-2 - Chassis kit remove-install (only if Chassis Ears are used for diagnosis) - 0.4 hrs
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.
