Final Drive

Final drive

Operation number: 46510-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Lower the rear subframe. Rear Suspension, Service Position

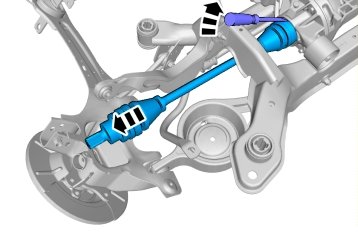

Detach the propeller shaft from the rear driver. Propeller Shaft

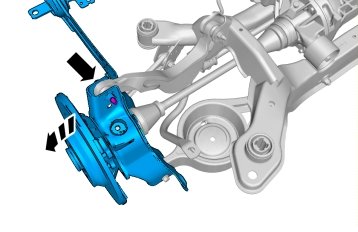

Torque: Upper arm rear to wheel knuckle, 110 Nm

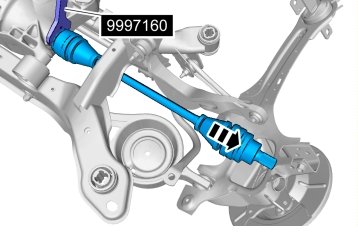

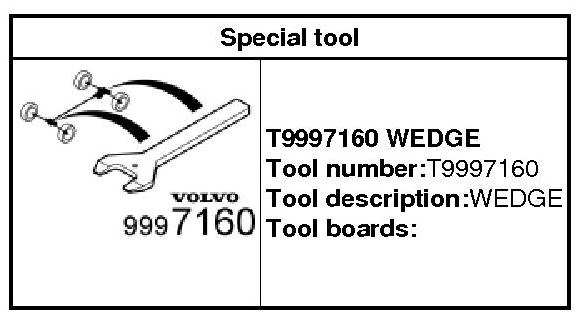

999 7160 Key 999 7160 Key

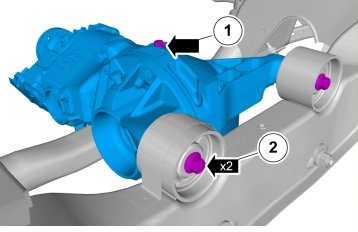

Torque: M12, 80 Nm

Installation

To install, reverse the removal procedure
