Changes Implemented Up to and Including April 2007

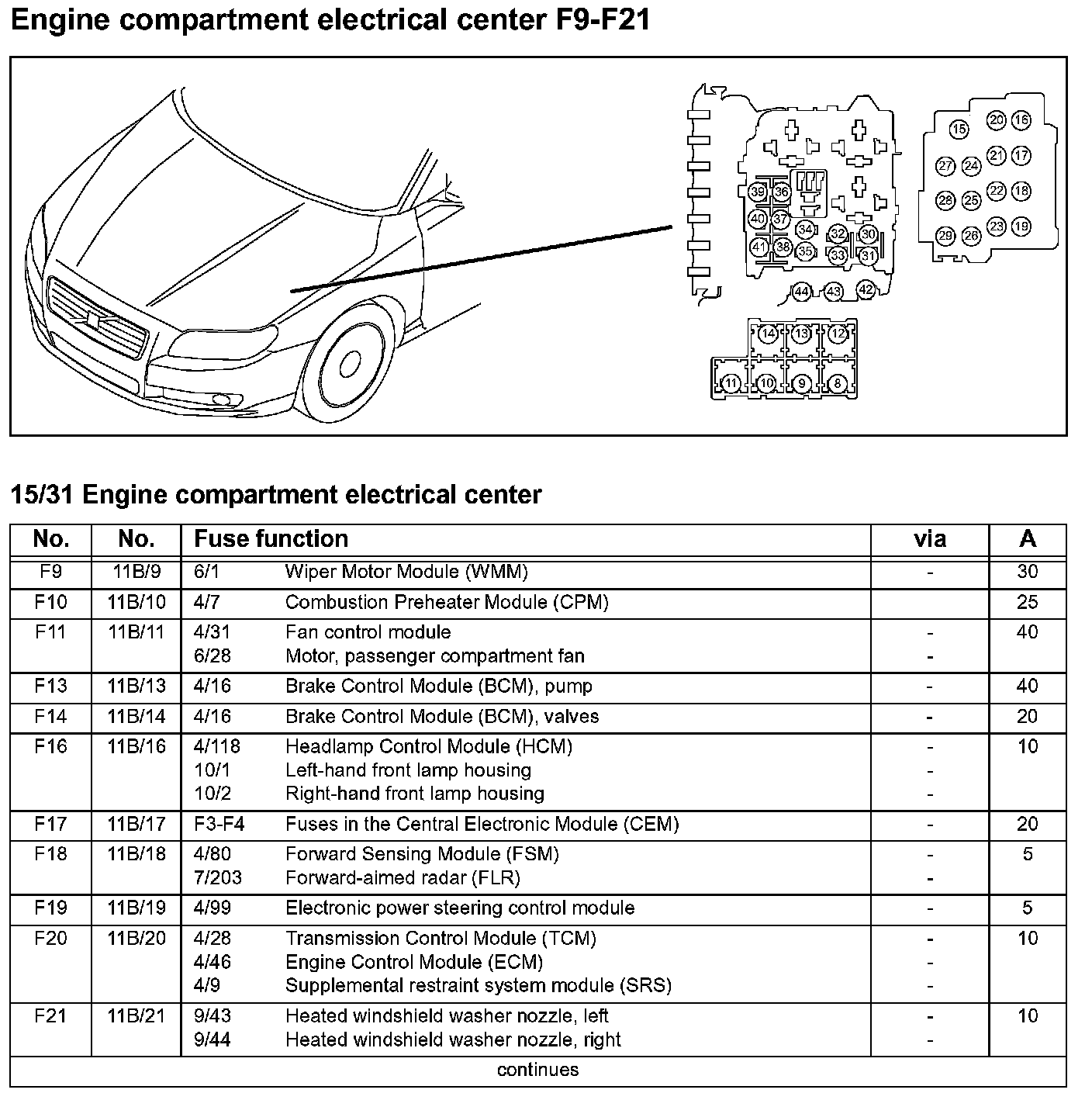

Engine Compartment Electrical Center F9-F21:

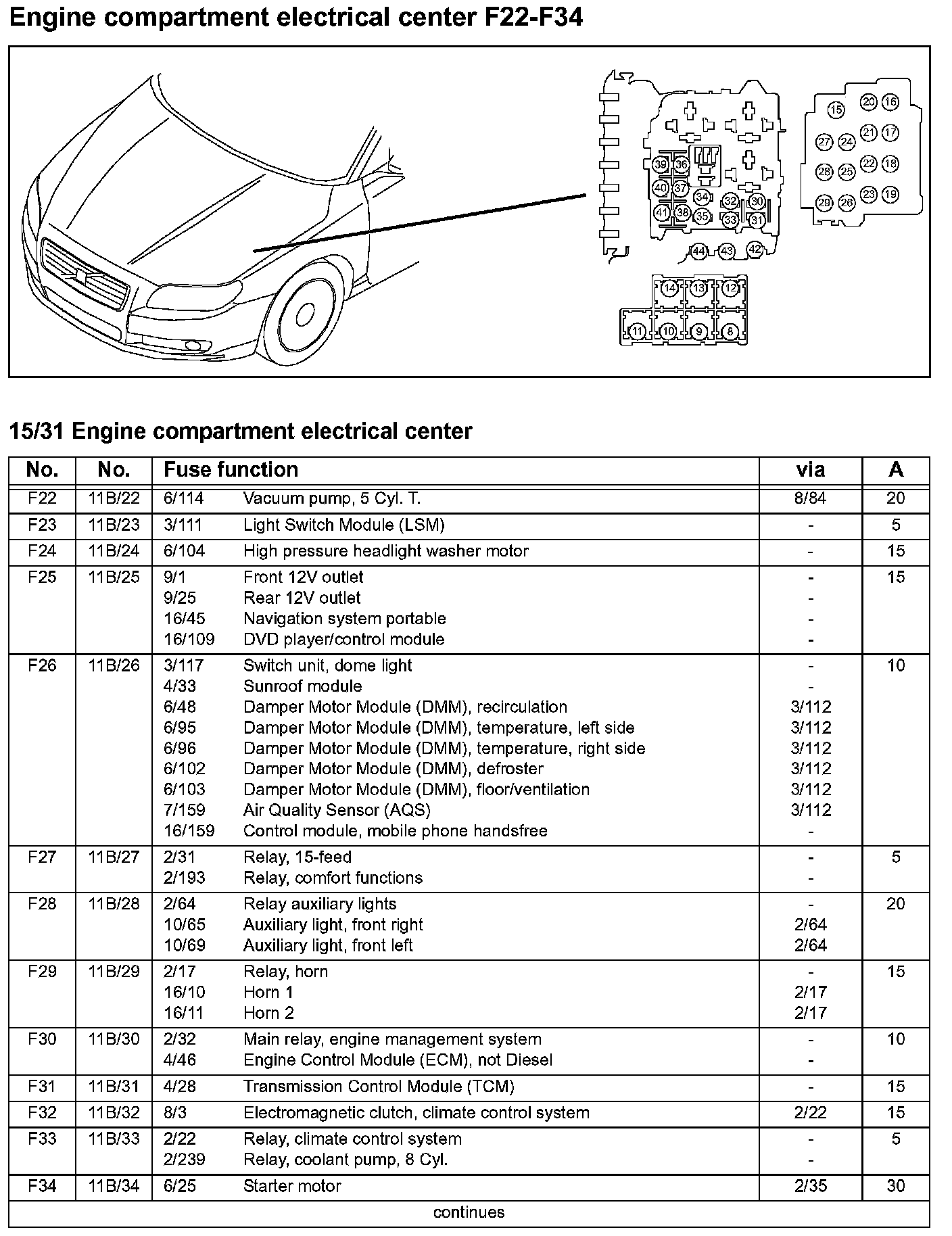

Engine Compartment Electrical Center F22-F34:

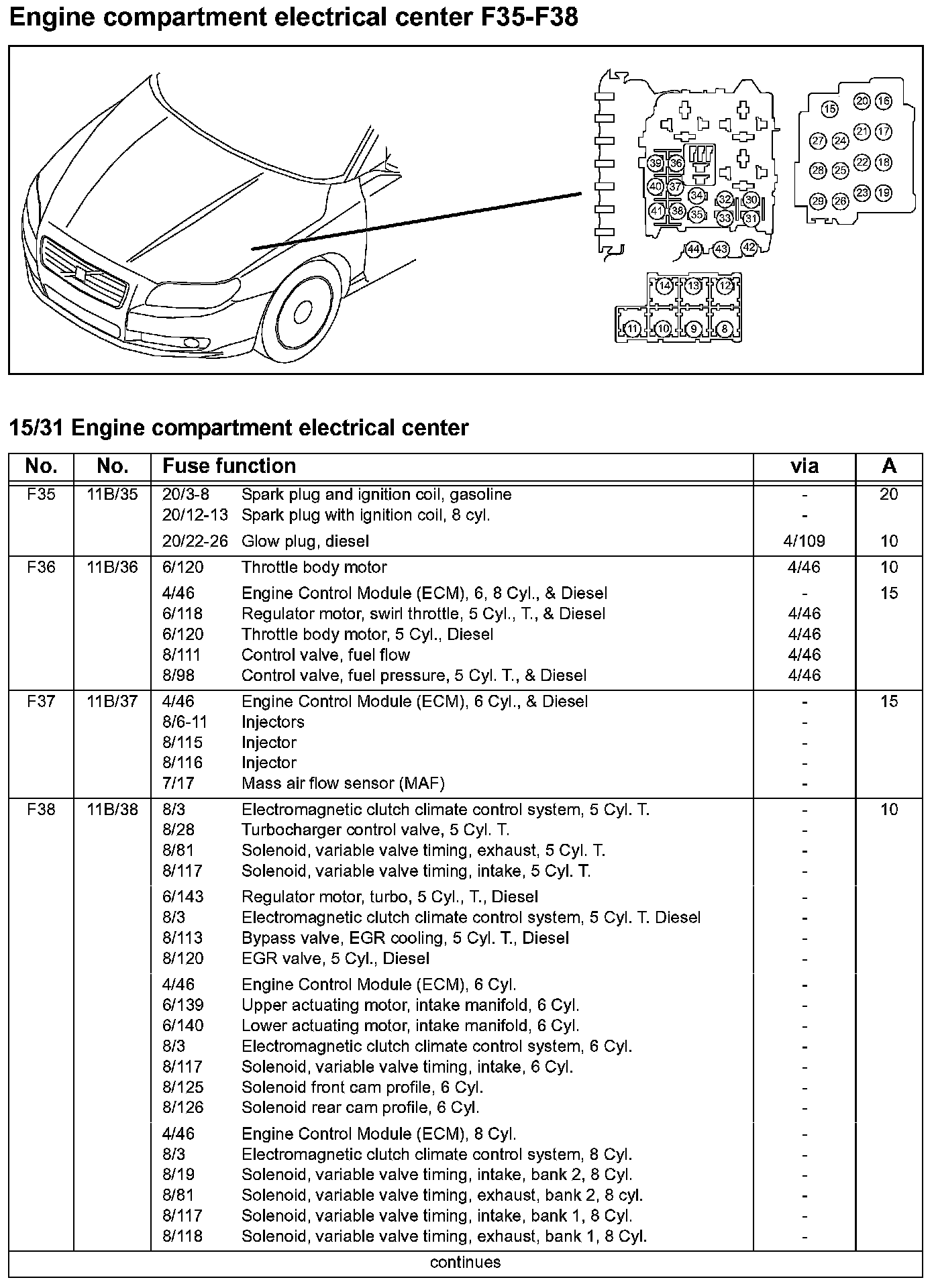

Engine Compartment Electrical Center F35-F38:

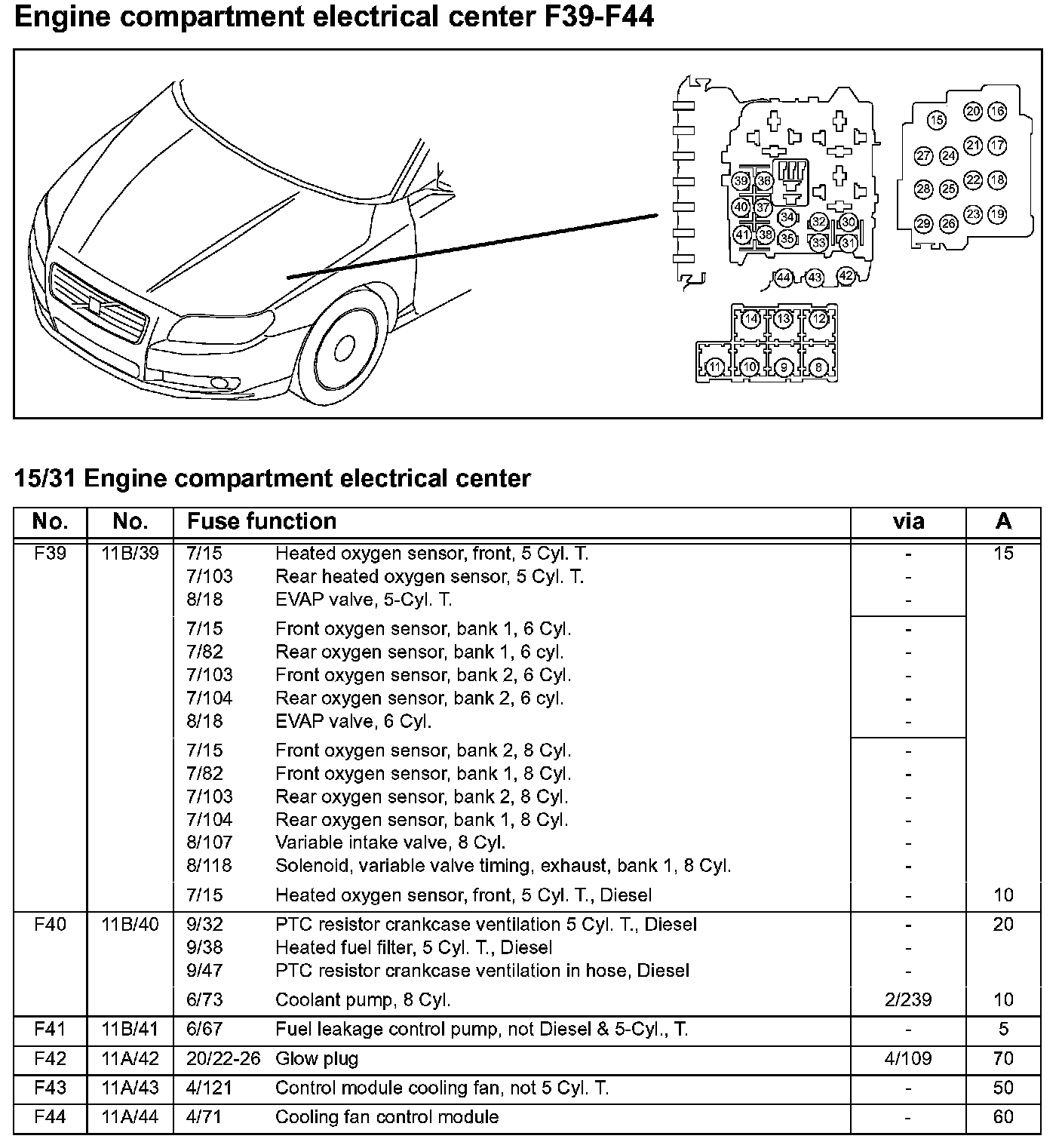

Engine Compartment Electrical Center F39-F44:
