Changes Implemented Up to and Including April 2007

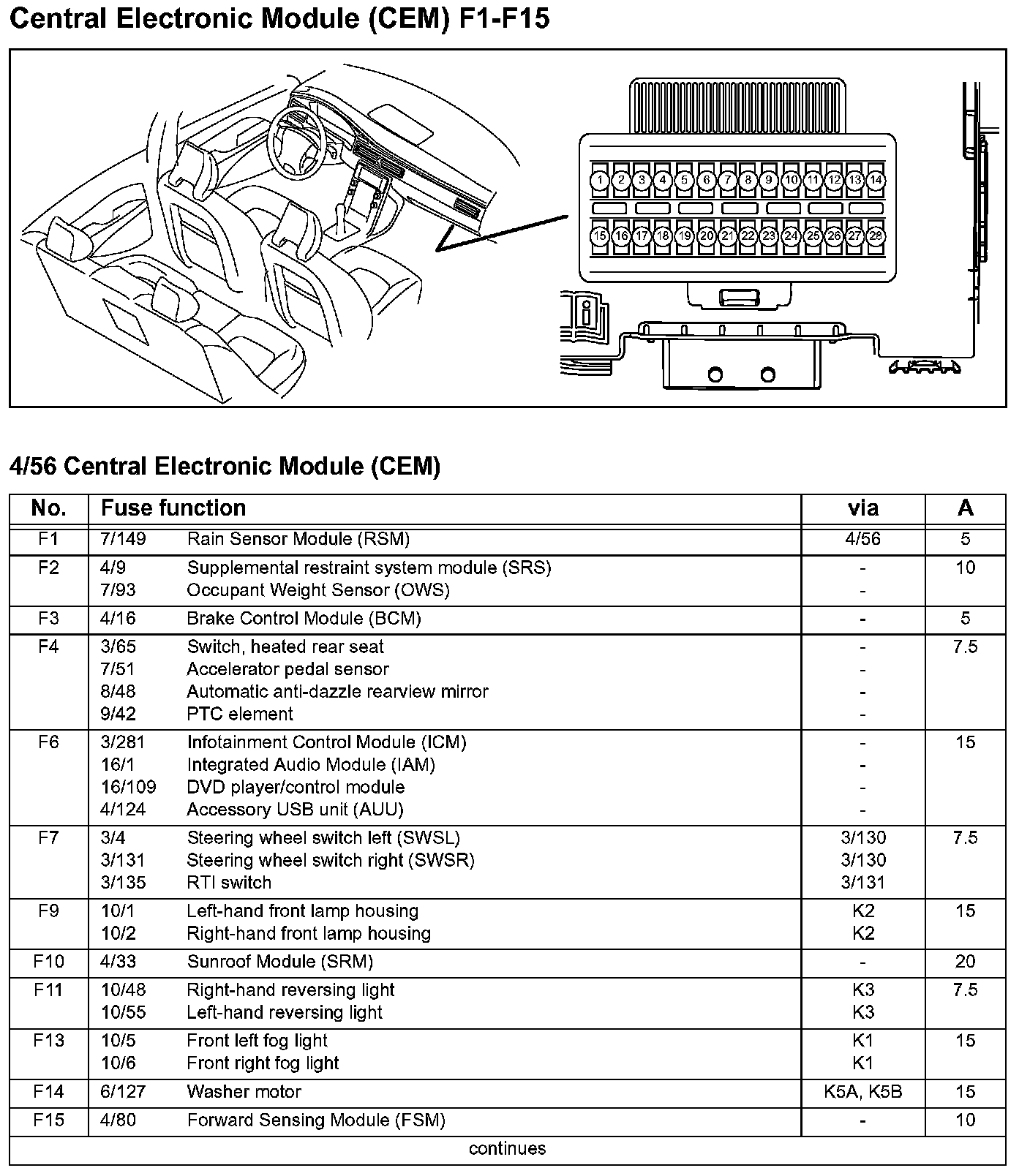

Central Electronic Module (CEM) F1-F15:

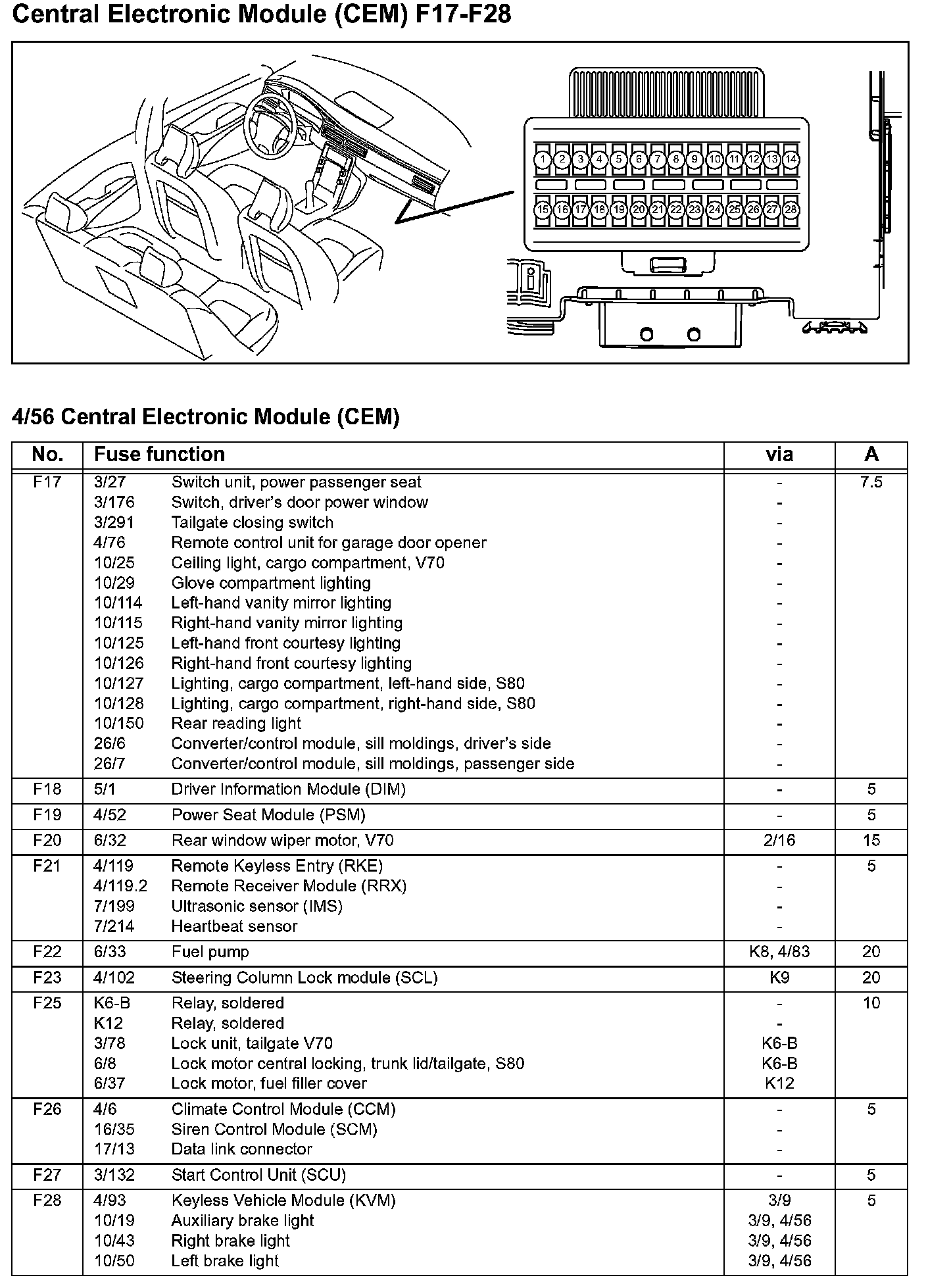

Central Elecrtronic Module(CEM) F17-F28:
