Alternator Pulley / Clutch: Service and Repair

Generator pulley, generator

Operation number: 32171-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the generator. Service and Repair

Note! The rotor shaft is left-hand threaded.




Applies to belt pulley with freewheel

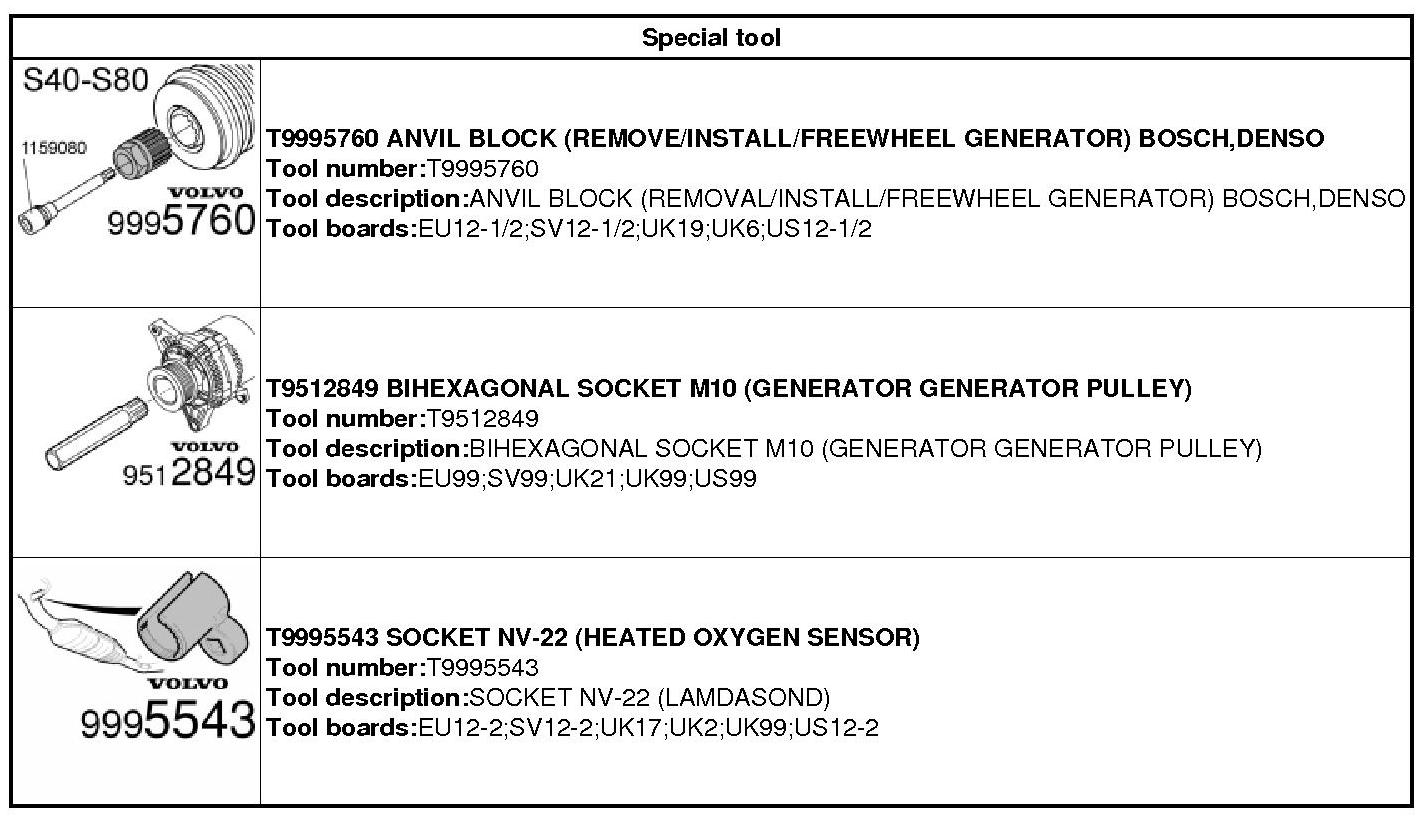

999 5760 Counterhold 999 5760 Counterhold

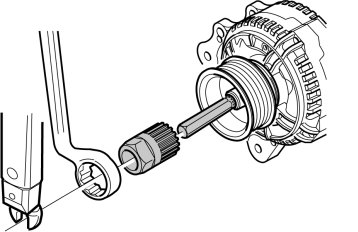

951 2849 Twelve tooth spanner M10 951 2849 Twelve Tooth Spanner M10.
Torque: M12, 80 Nm




Applies to belt pulley without freewheel

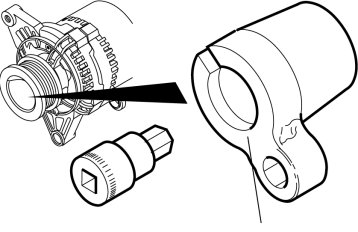

999 5543 SOCKET NV-22 HO2S 999 5543 Socket NV-22 HO2S.
Torque: M12, 80 Nm

Installation

To install, reverse the removal procedure
