Air Bag System - SRS Repair Kit Part Numbers

NO: 88-46
DATE: 3-22-2007
MODEL: S80
M. YEAR: 2007 -->
CHASSIS: N/A
SUBJECT: SRS Repair Kit Part Numbers
REFERENCE: VIDA Parts Catalog

DESCRIPTION:
The SRS (Supplemental Restraint System) Repair Kit information for S80 MY2007 in the VIDA Parts Catalog is not correct.





SERVICE:

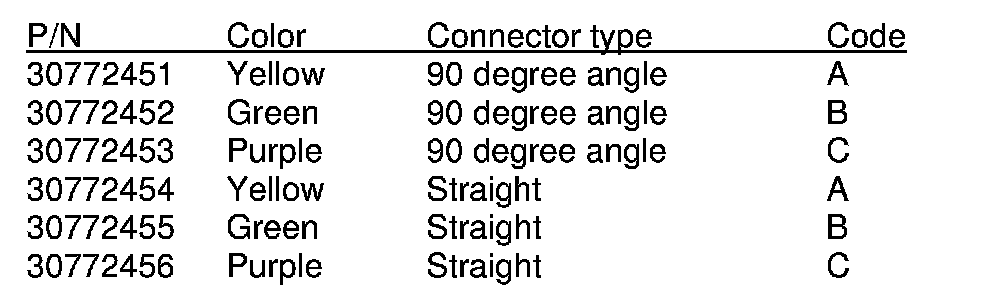

Part numbers to use:

The SRS repair kits comprise igniter connector, pigtail and splice sleeves (P/N 9130467). The existing VIDA Parts Catalog drawings may be used to determine the connector code (i.e. mechanical interface of the connector).
