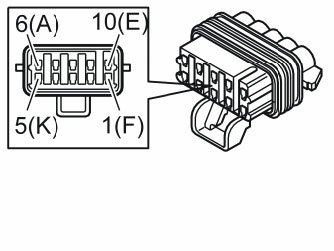

Pinout Values and Diagnostic Parameters

Signal Specification

General

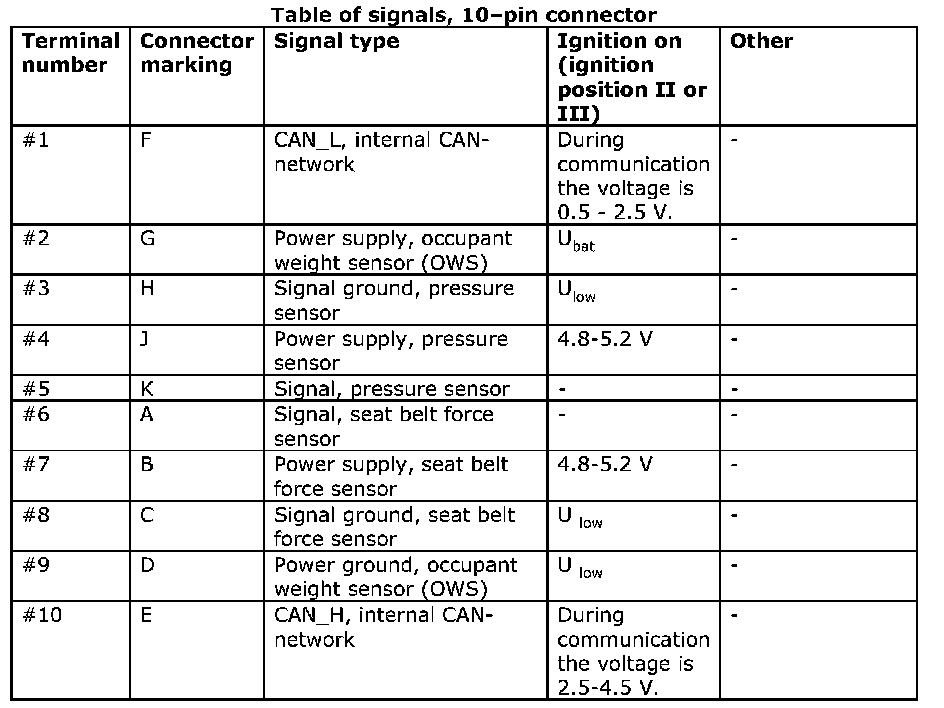

All values specified below are between the relevant terminal and terminal #9 (power ground).

U= DC voltage in volts (V)
U(bat) = Battery voltage (V)
U(low) = Voltage approximately 0 V
