Active On-Demand Coupling Module, TF-80SC, M66

Active On-Demand Coupling Module

Operation number: 46030-2

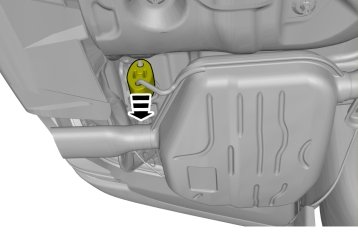

Removal

Note! Removal steps in this procedure may contain installation details.

















Warning! Be prepared to collect escaping fluid.

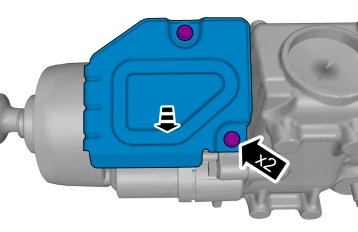

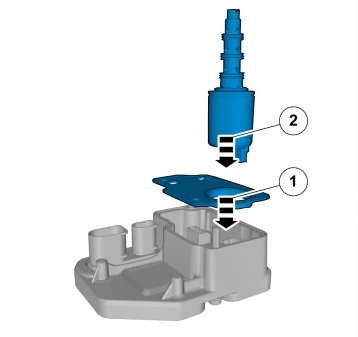

Torque: M5, 5 Nm

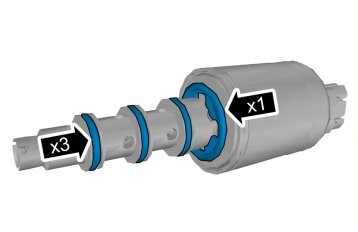

Caution! Only use the specified material to lubricate the seals.

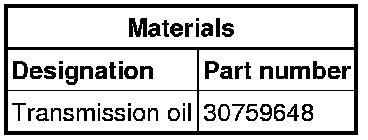

Use: Transmission oil, 30759648





Installation

To install, reverse the removal procedure.

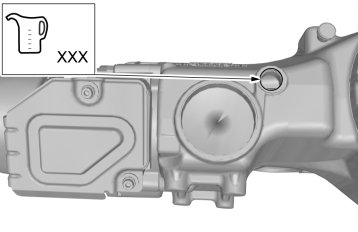

Follow the instructions regarding transmission lubricant Refer to: Lubrication transmission Specifications

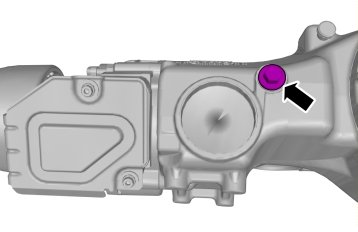

Torque: Oil filler plug, bevel gear, 35 Nm

Order and download appropriate software. Programming and Relearning
