Parking Brake Control Module: Service and Repair

Parking brake module

Operation number: 55105-2

Removal

Note! Removal steps in this procedure may contain installation details.





Remove left side side panel Refer to: Side panel loadspace Side Panel Loadspace

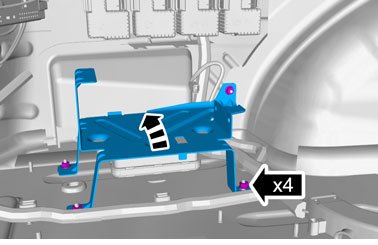

Torque: M6, 10 Nm





Warning! Make sure that new nuts are installed.

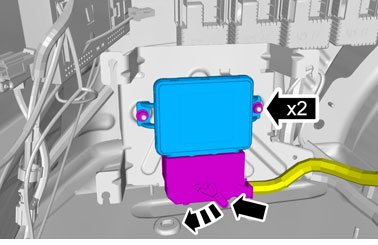

Note! Make sure that the component terminals are not bent or damaged.

Torque: Control module parking brake console, 7 Nm

Installation

To install, reverse the removal procedure.

Order and download appropriate software. Programming and Relearning
