Phone Module (PHM)

Phone Module (PHM)

Operation number: 39405-2

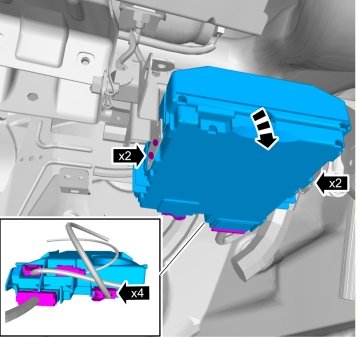

Removal

Note! Removal steps in this procedure may contain installation details.

Remove glove compartment. Glove Compartment





Caution! Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

Note! Make sure that the component terminals are not bent or damaged.

Note! Make sure that the optical connectors are clean and free of foreign material.

Torque: Bracket for phone module, 1,4 Nm

Installation

To install, reverse the removal procedure.

Vehicles with Volvo On Call

Perform Volvo on call, activation Refer to: Volvo On Call, activation Volvo On Call, Activation

Perform Volvo on call, reactivation Refer to: Volvo On Call, re-activation Volvo On Call, Re-Activation

Perform Volvo on call, deactivation (cancellation) Refer to: Volvo On Call, deactivation (canceling) Volvo On Call, Deactivation (Canceling)

All vehicles

Order and download appropriate software. Programming and Relearning
