Delivery And Return Line, Power Steering

Delivery and return line, Power steering

Operation number: 64515-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.





Drain the power steering fluid reservoir:

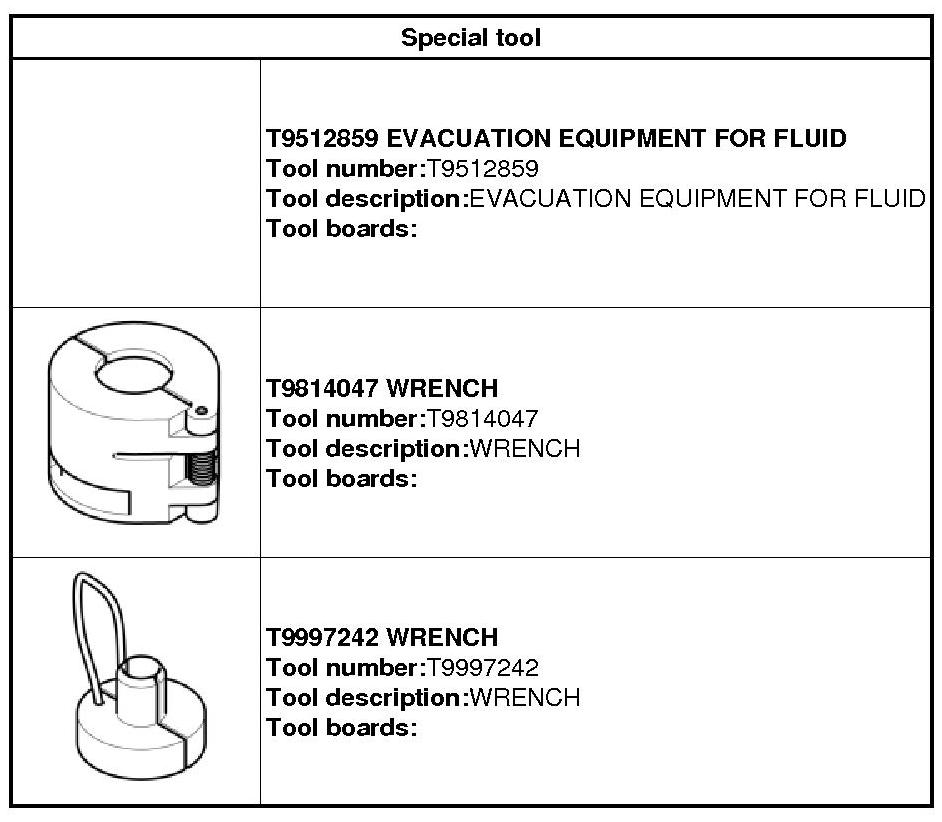

Draw up the fluid from the reservoir. 951 2859 Fluid evacuation equipment 951 2859 Fluid Evacuation Equipment

Remove the front wheels. Service and Repair

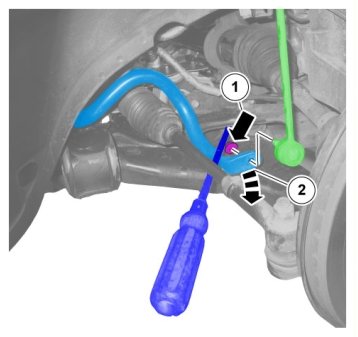

Torque: Front stabilizer bar link to stabilizer bar, 60 Nm

















Warning! Be prepared to collect escaping fluids.

Caution! Make sure that all openings are sealed.

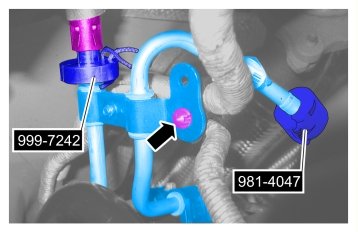

- 981 4047 Wrench 981 4047 Wrench
- 999 7242 Wrench 999 7242 Wrench

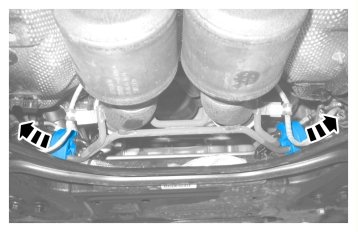

Caution! Take extra care not to damage the clamps.





Warning! Be prepared to collect escaping fluids.

Caution! Make sure that all openings are sealed.

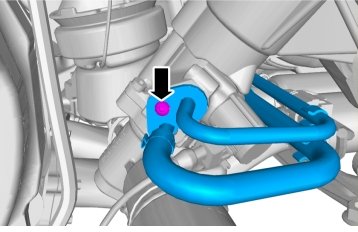

Torque: Pressure line to steering gear, 20 Nm

Installation

Install in reverse order.

Fill and bleed the power steering system. Service and Repair
