Home >> Volvo >> 2008 >> S80 AWD L6-3.0L Turbo VIN 99 B6304T2 >> Repair and Diagnosis >> Locations >> Component Locations >> Control Module Overview >> Changes Implemented Up to and Including September 2007

Changes Implemented Up to and Including September 2007

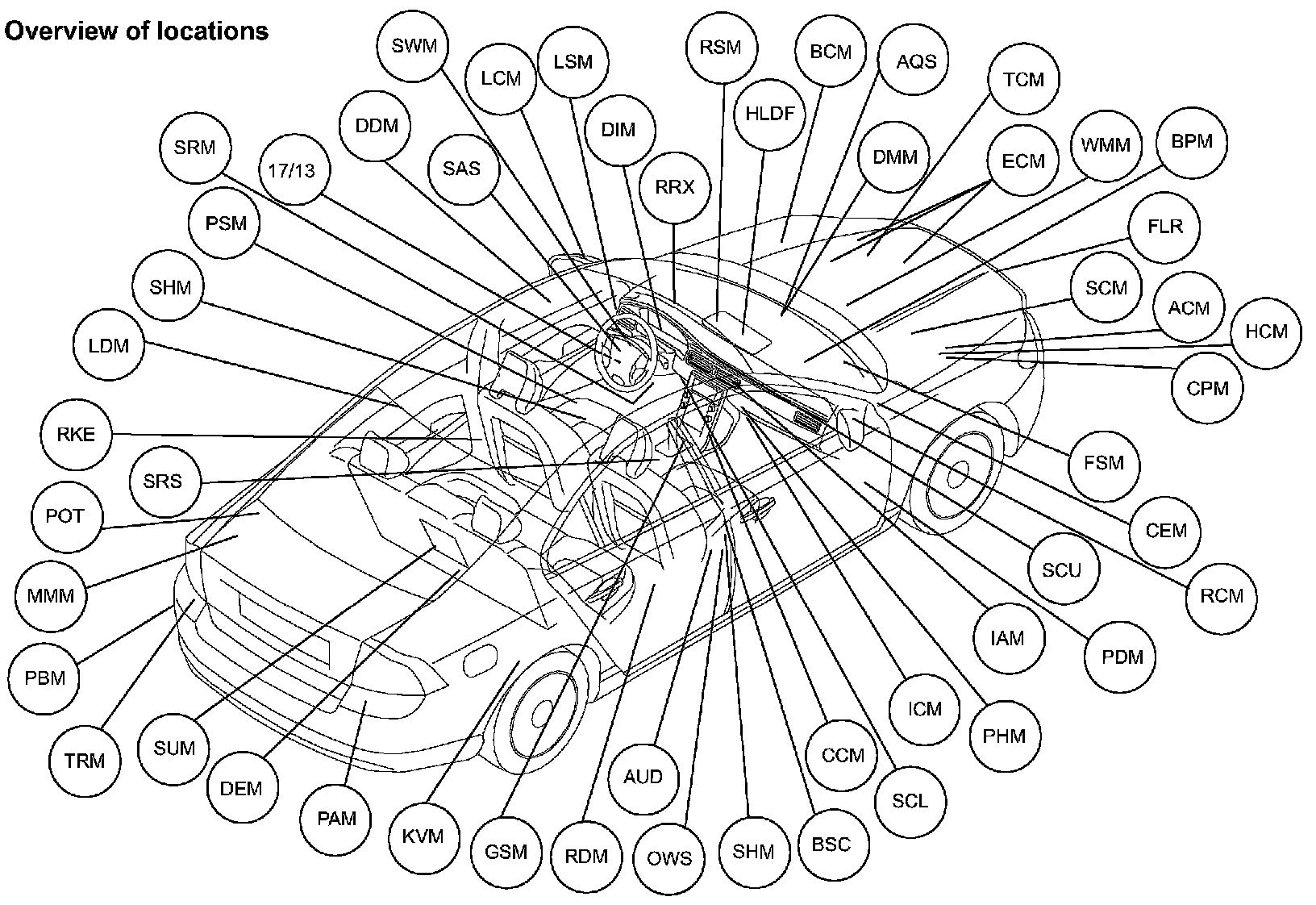

Overview Of Locations:

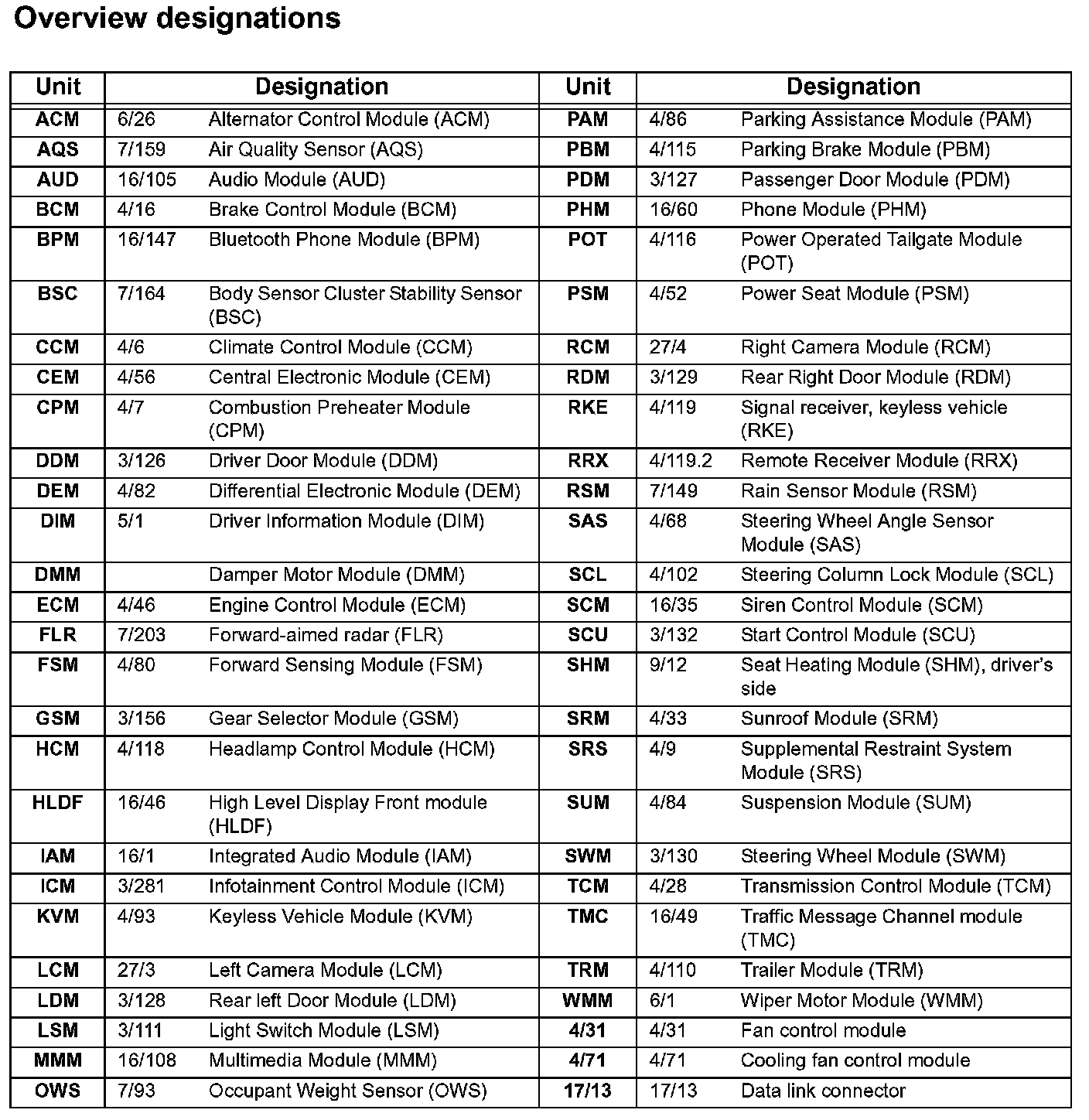

Overview Designations:
