Tail Lamp: Locations

Location of components, tail lamp.

Note! Some variation in the illustrations may occur, but the essential information is always correct.

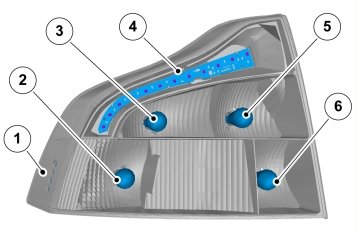

Location Of Components, Tail Lamp:

1. Side position lamps (home safe)
2. Brake light
3. Turn signal lamps
4. Rear lamp (home safe)
5. Reversing lamp
6. Rear fog light

Note! A fog tail lamp bulb is only used in one of the tail lamps. In the left tail lamp on left-hand drive cars and in the right on right-hand drive cars.
