Housing Assembly HVAC: Service and Repair

Climate control unit

Operation number: 87322

Removal

Note! Removal steps in this procedure may contain installation details.

Drain AC compressor. Service and Repair

Remove the expansion valve. Service and Repair

Remove side door front Refer to: Front door Service and Repair

Remove the dashboard. Refer to: Dashboard Dashboard

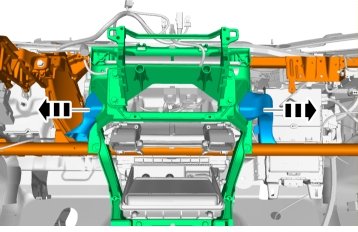

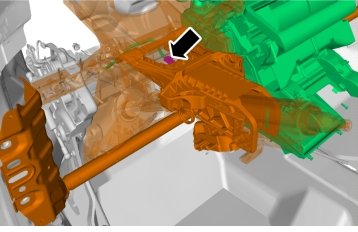

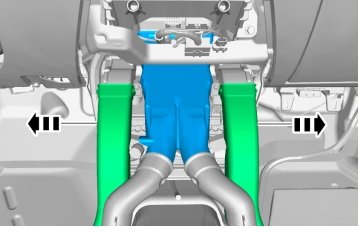

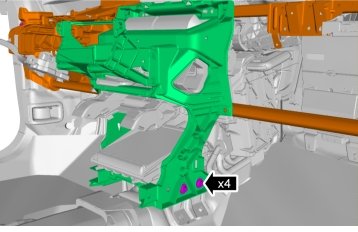

Torque: M8, 24 Nm

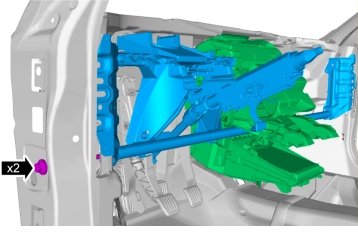

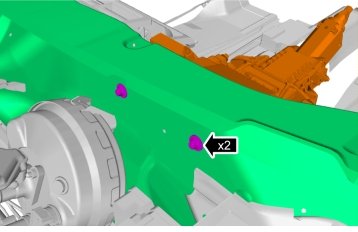

Torque: M6, 10 Nm

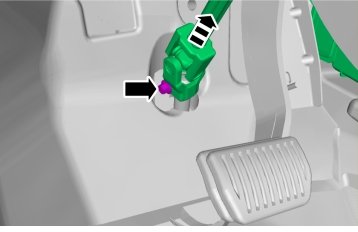

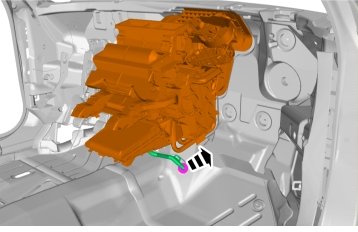

Torque: M8, 24 Nm

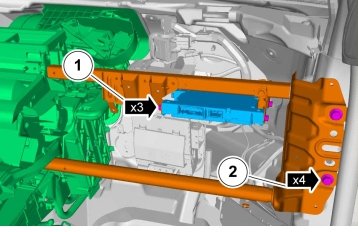

1. Torque: M6, 10 Nm

2. Torque: M10, 50 Nm

Remove the engine control module (ECM). Engine Control Module (ECM)

Remove the wiper mechanism, windscreen. Wiper Mechanism, Windshield, L.H.D.




Torque: M6, 10 Nm




Torque: M10, 50 Nm









Installation

To install, reverse the removal procedure.

Fill refrigerant. Refrigerant, Filling
