Condenser to Connector Block Line

Condenser To Connector Block Line

Operation number: 87465-2

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Removal

NOTE: Removal steps in this procedure may contain installation details.

Drain the refrigerant from the air conditioning system.

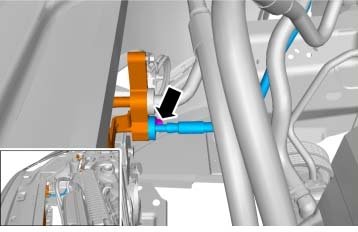

Torque: M8, 24 Nm

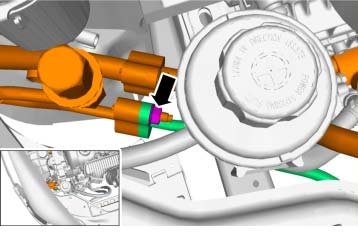

Torque: M8, 24 Nm

Installation

Change and lubricate the O-rings with compressor oil.

To install, reverse the removal procedure

Vacuum pump the air conditioning system.

Fill the air conditioning system with refrigerant.

Leak-trace the air conditioning system.

Carry out a performance test on the climate control system.
