A/C - Compressor Harness Retainer Missing
NO.: 37-44DATE: 10-24-2007
MODEL:
S80 (07-) ch. 045802 - 059228 W/S16 (engine code 98 and 99)
XC70 (08-) ch. 000328 - 006288 W/S16 (engine code 98 and 99)
SUBJECT:
CPS Plus Engine Harness P- clamp
REFERENCE:
DESCRIPTION:
On vehicles equipped With the S16 engine, the clamp holding the cable to the AC compressor bracket may be incorrectly assembled or missing

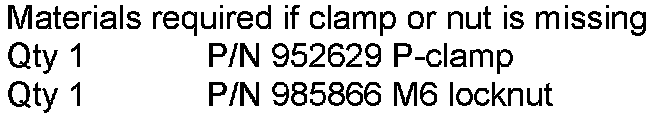

Materials required if clamp or nut is missing
SERVICE: If the vehicle is Within the chassis limitations in the header, please check and, if necessary, correct the cable fixation as part of the CPS or just prior to customer delivery.
CHECK METHOD

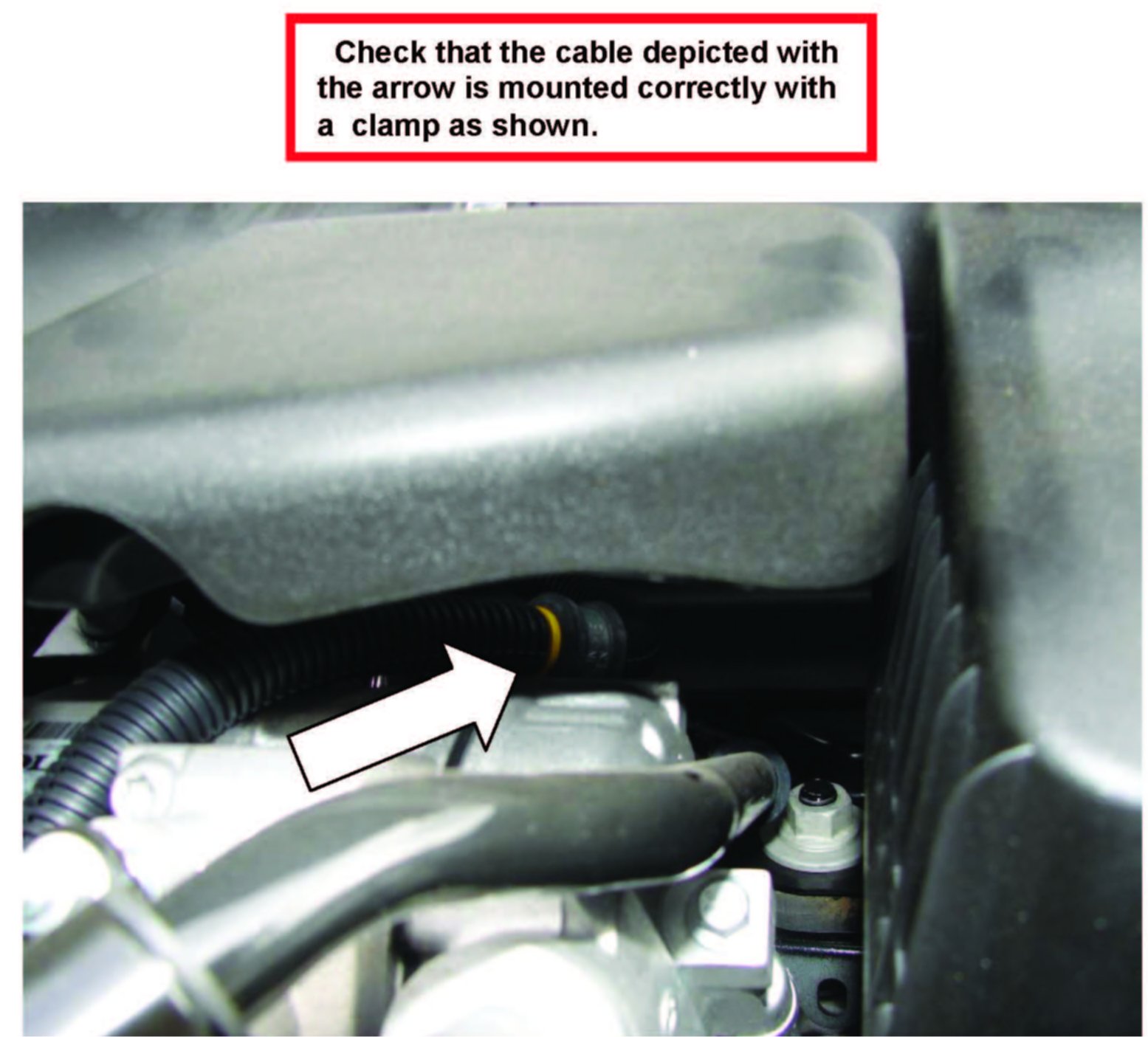

Check that the cable depicted with the arrow is mounted correctly with a clamp as shown.

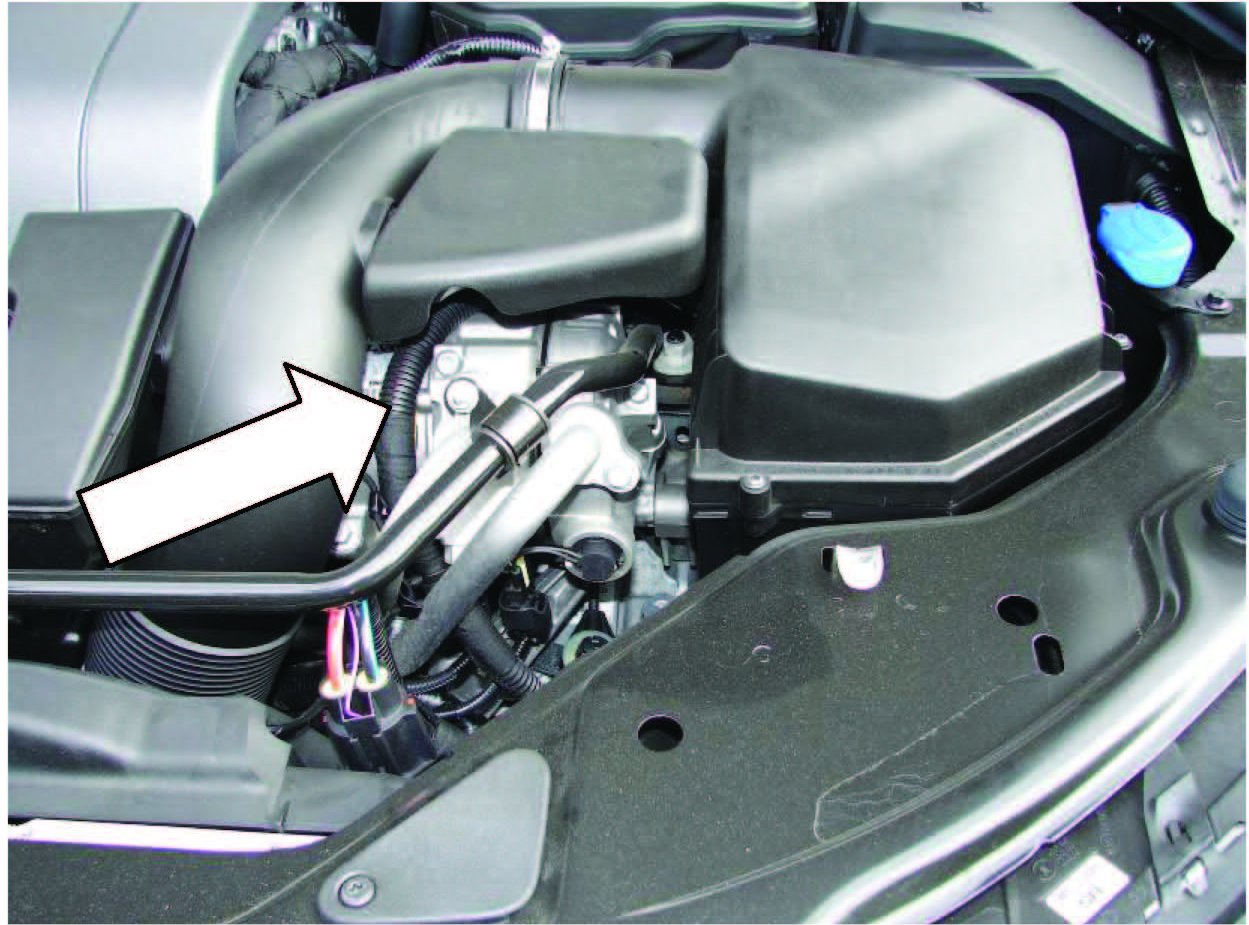

If the clamp is loose or missing install the necessary parts as shown.

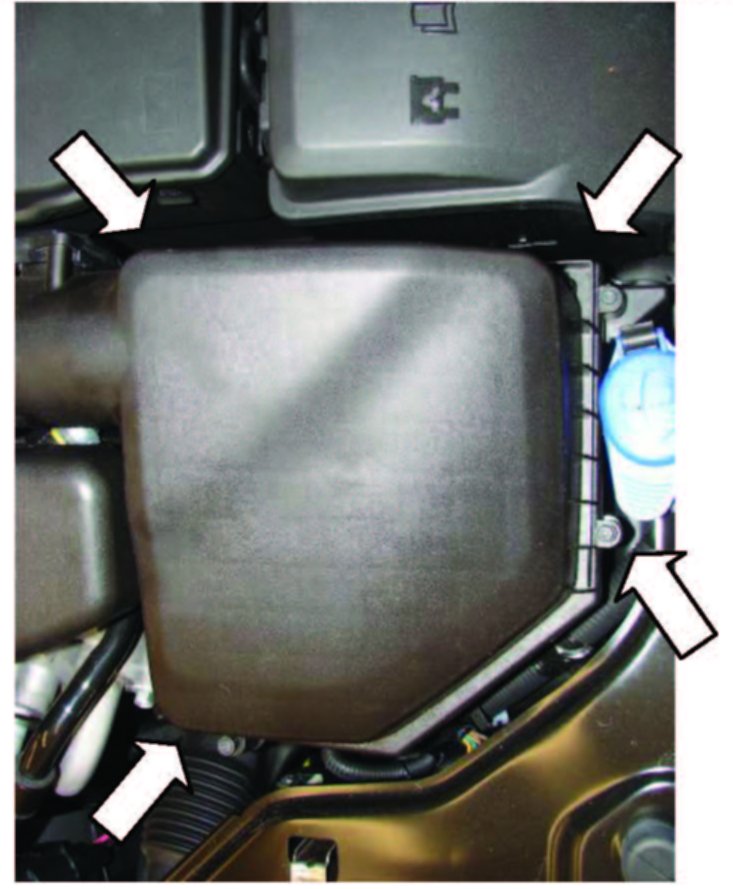

Remove 4 screws for air filter cover.
Gently lift the cover to access the cable and clamp on the AC compressor

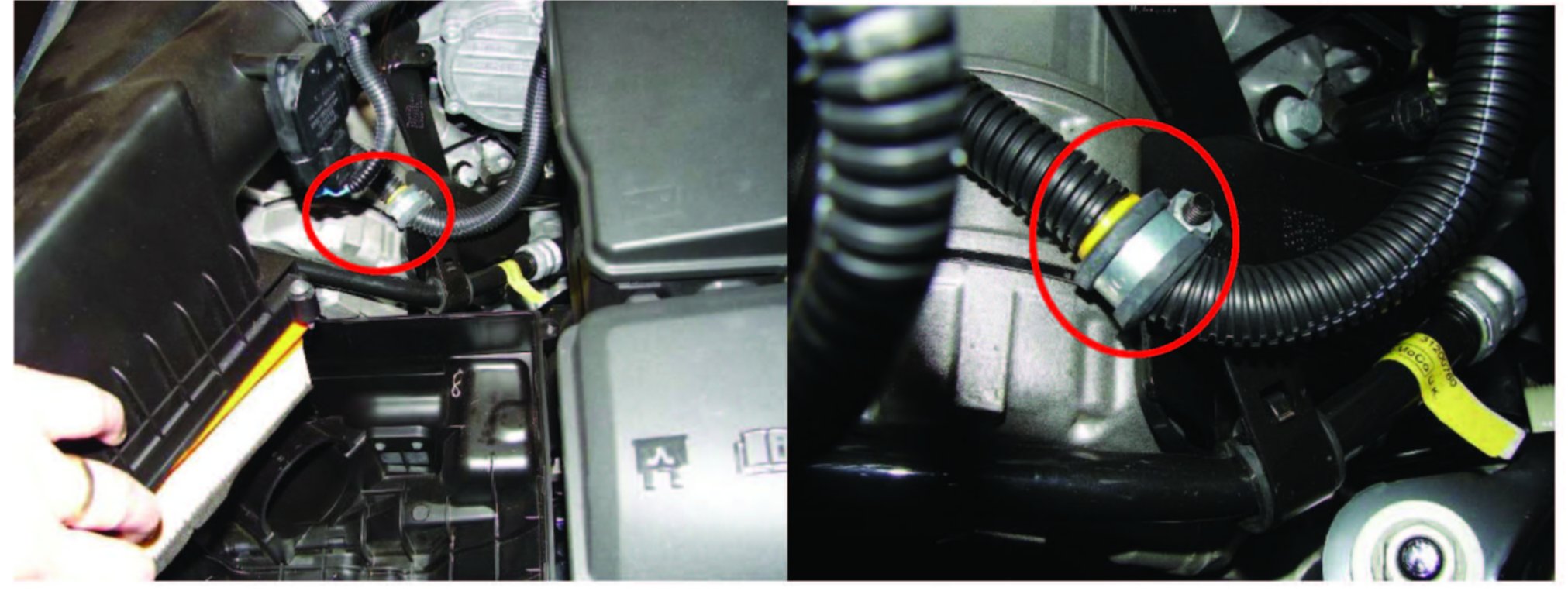

Install or tighten clamp as necessary at the yellow ring on the cable harness Tightening torque for M6 stud - 10 Nm (7.4 lb/ft)

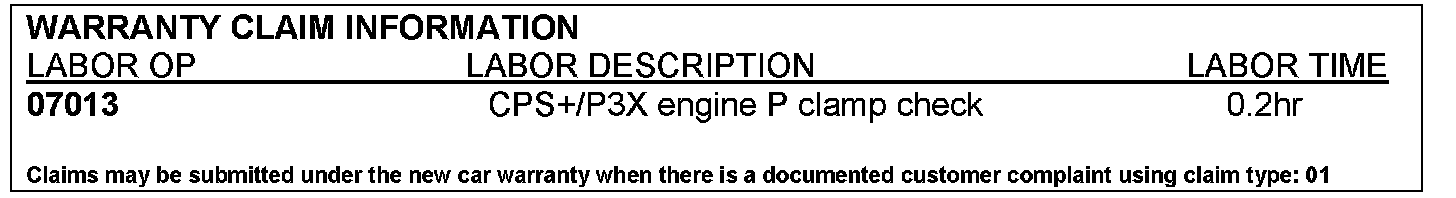

Warranty Claim Information
