Engine - Oil Leaks From Camshaft End Plugs
NO: 21-28DATE: 5-5-2008

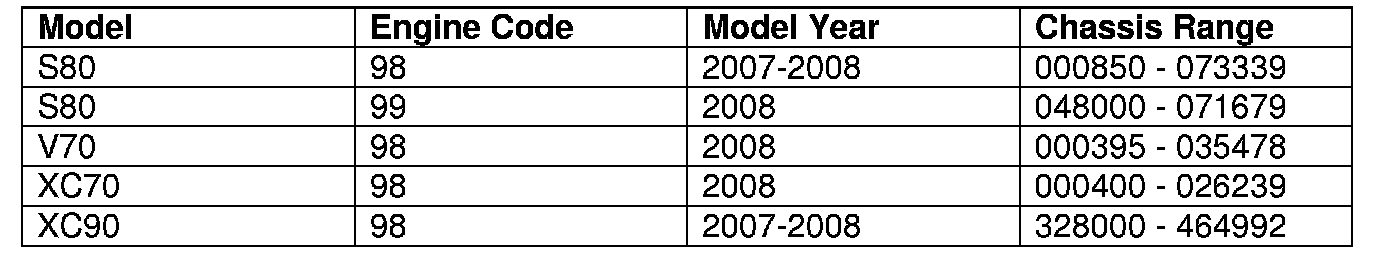

MODEL: see chart below
YEAR: see chart below
SUBJECT:
Camshaft plug installation
REFERENCE: VIDA
Note!
If using a printed version of this TNN, first check for the latest online version.
The upper chassis number limitations above are very rough. Check the engine number mentioned instead.
Description:
Camshaft end plugs falling out resulting in oil leakage and possible low oil level warning. This can occur with either the intake or exhaust cam plug.
To mitigate the problem the cleaning process as well as a new camshaft plug was introduced in engine plant at engine number - 04010816353.
Note:
The first 6 digits in the engine number indicate production date (format ddmmyy (0401O8xxxxx) and the last 5 digits is the serial number for that day.
This means that:
06120716354 is before brake point (December 12, 2007)
05010816353 is after brake point (January 5, 2008)
Service:
Install updated cam plug with sealant. Follow procedure on pages below.
1. Remove upper torque rod

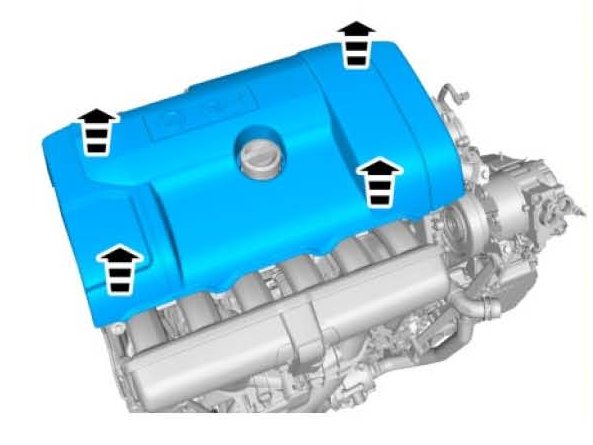

Remove the engine cover.
Remove upper torque rod
Refer to VIDA for torque rod removal.
^ Engine with mountings and equipment.
^ Engine
^ Engine mounting Upper torque rod
Note:
For S80, V70 and XC7O the right engine insulator must also be removed, see VIDA.
^ Engine with mountings and equipment
^ Engine
^ Engine mounting
^ Engine support
^ Insulator, right
Note:

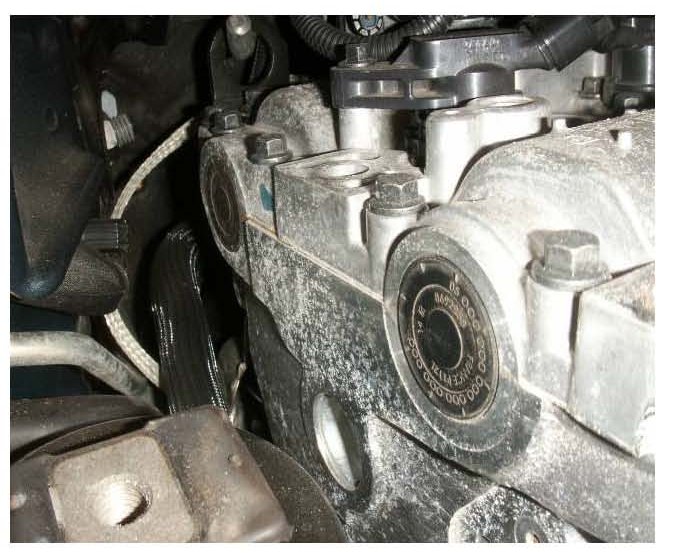

At this point the camshaft plugs will be exposed as in the picture but there should be no need to remove any since the repair addresses missing plugs
2. Cleaning:
Note!
Ensure that the component is clean and free from foreign materials and lubricant.

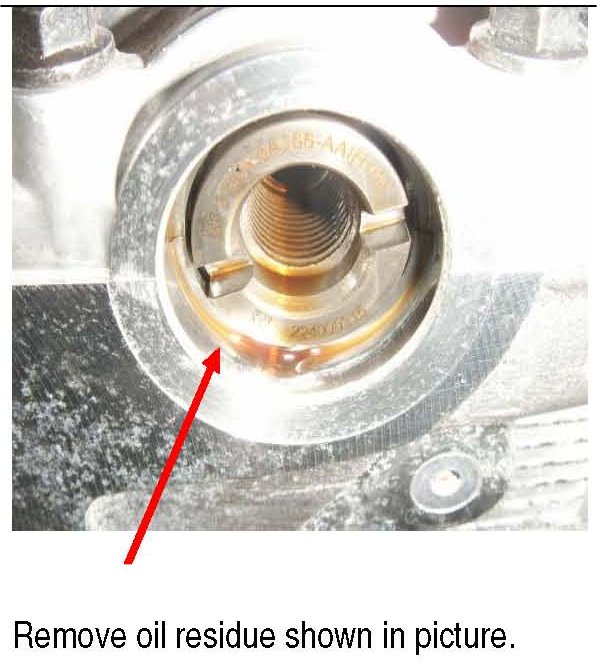

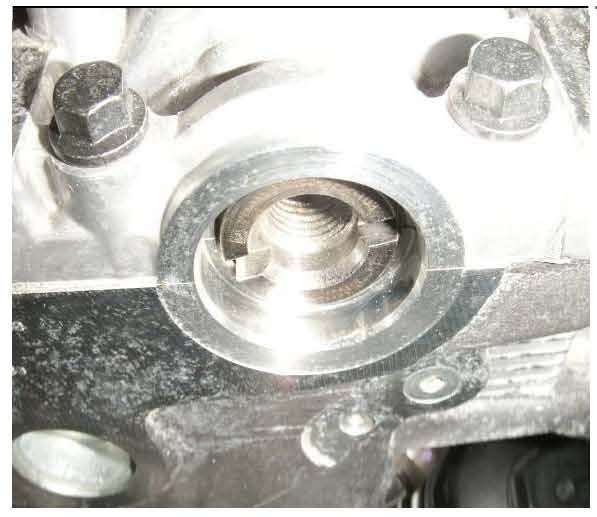

Clean the mating surface for the camshaft plug. Use: Cleaner, 1161828.
Wipe dry using a lint free cloth.
Clean again. Use: Isopropanol, 1161721. Blow dry with compressed air.
3. Applying sealant:

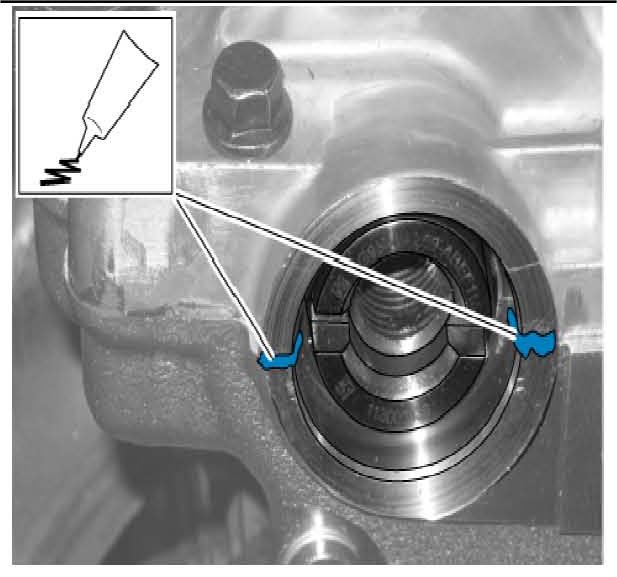

Apply the sealant in the joint between the cylinder head and valve cover.
Use: Chemical gasket, 1161059.
4. Installation:
Caution!
Do not push the plug in with your fingers as this can deform the plug. Install the sealing plug, see:
Removal, replacement and installation
Engine with mountings and equipment
Engine
Transmission
NOTE:

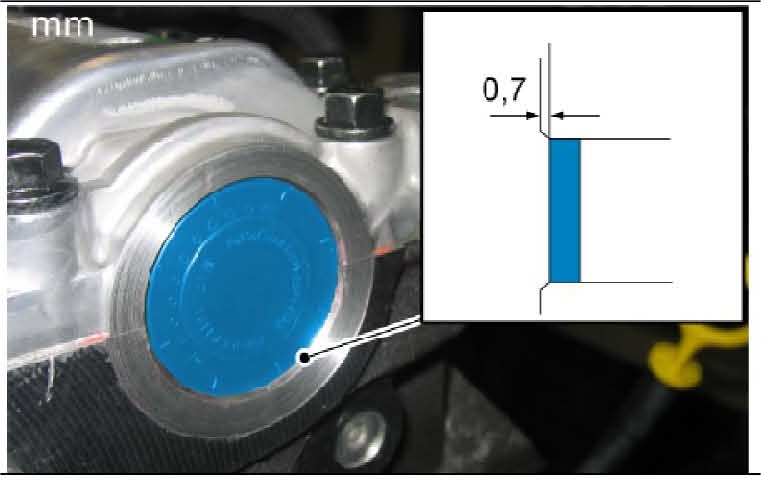

Carefully press or tap the cam plug in a further 0.7mm (.027in) so the inner edge of the bevel is exposed. Use: Ring, 9997140.
Reinstall engine bracket and upper torque rod.
Make sure engine oil level is at the full mark.

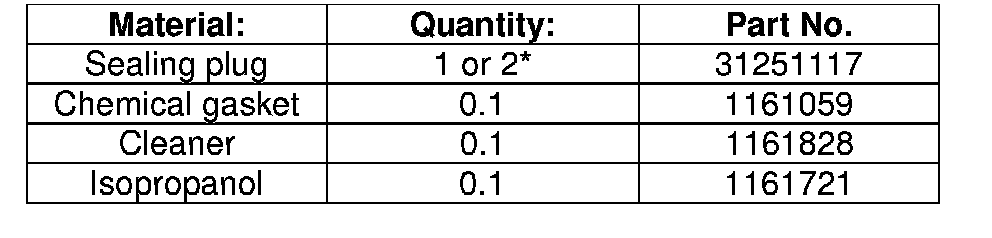

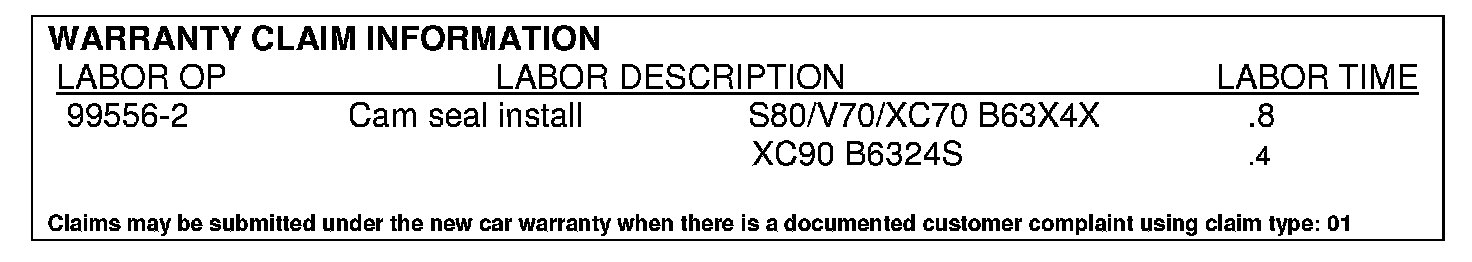

Warranty Claim Information
