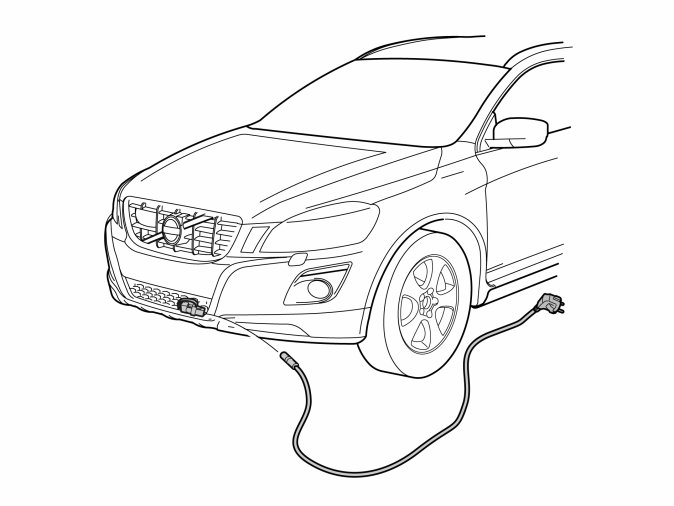

Electric engine heater, 110 V, 6-cyl





































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Electric engine heater, 110 V, 6-cyl

Applies to the S80

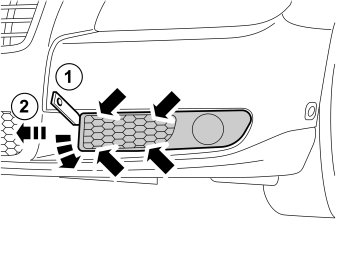

- Remove the left-hand cover panel under left-hand headlamp by first carefully prizing loose the right-hand end face until the four clips on the inside release, following which, pull it out to the right.

Note! Do not damage the paintwork.




- Remove the engine splash guard.




- Drill out the marked hexagonal surface and cut/file until it is level at the edges.

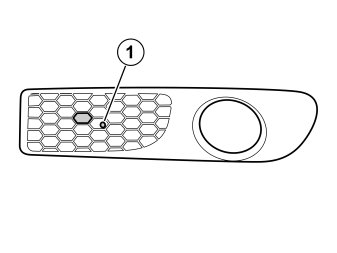

- Drill a - 8.5 mm (21/64 ") diameter hole in the hexagonal surface (1) approximately as illustrated.

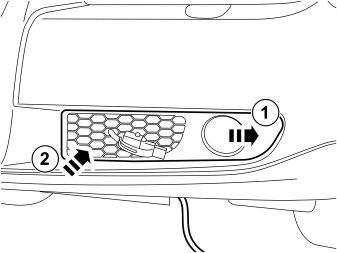

Illustration A, B, C and D

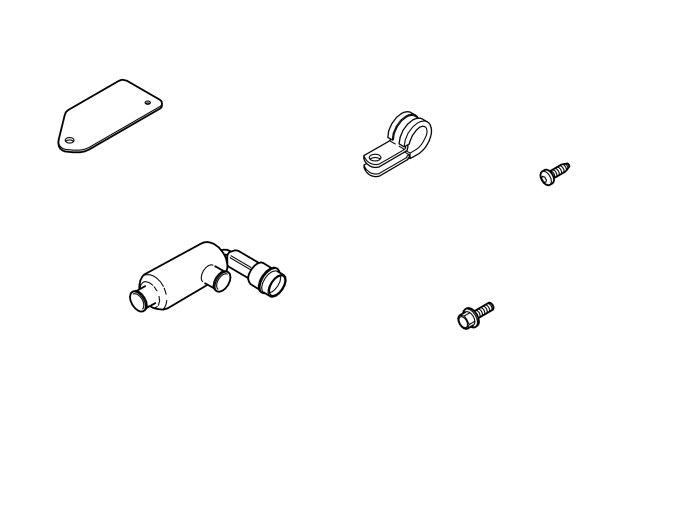

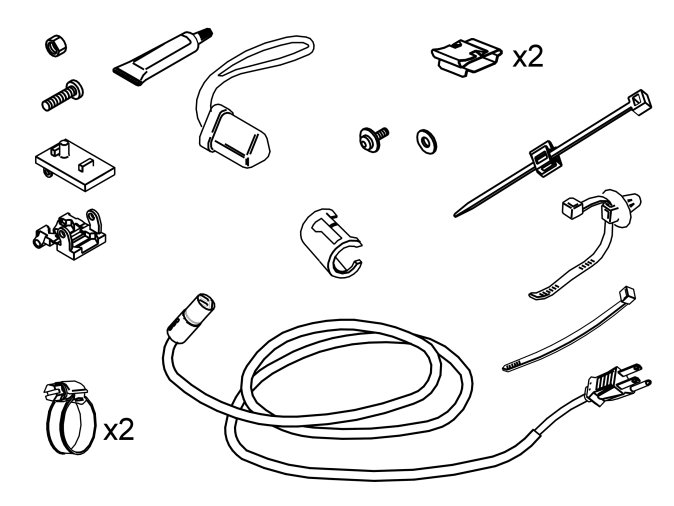

- Take the front engine block heater socket's components from the kit and assemble the front engine block heater socket as illustrated.


















Illustrations A and B
- Secure the front engine block heater socket's connector into the panel.










Illustrations A, B and C
- Route the front engine block heater socket's cable on the inside of the strut, over/inside the left-hand front corner of the subframe and let it hang down as illustrated.













- Press in the panel with the connector in its location.

Applies to the V70




- Remove the engine splash guard.

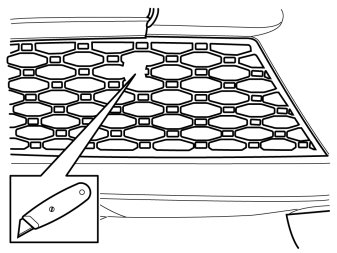

- Take a sharp knife. Cut off the grille section as illustrated.

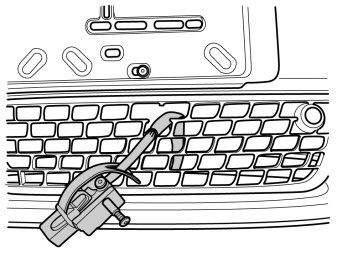

Illustration A, B, C and D

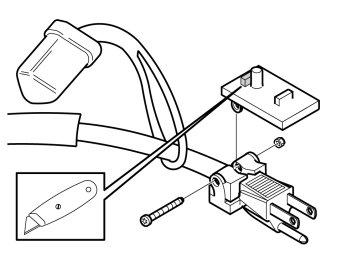

- Take the front engine block heater socket's components from the kit and assemble the front engine block heater socket as illustrated.

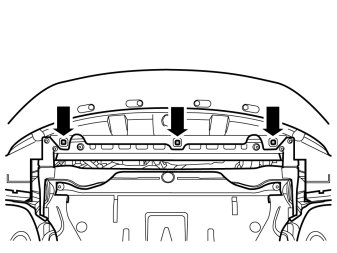

- Disconnect the three clips from the air baffle. Pull the air baffle downwards slightly to facilitate access.

Illustrations A and B

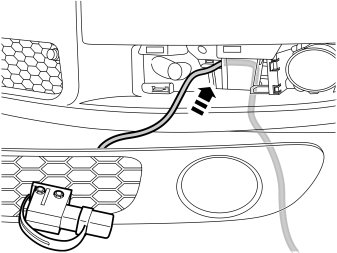

- Route the front engine block heater socket's cable on the inside of the strut, over/inside the left-hand front corner of the subframe and let it hang down as illustrated.

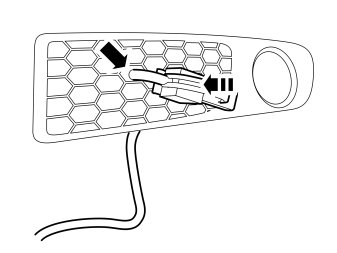

- Press the connector into place.




- Install the front engine block heater socket in the hole below, centre it in the hole. Tighten in the connector using a Torx screw (L=40 mm) and the mounting plate from the kit.

Applies to the XC70




- Remove the engine splash guard.

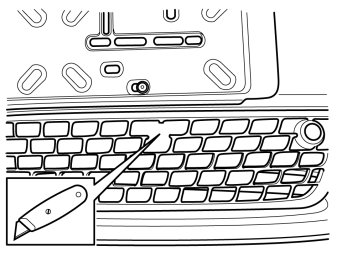

- Take a sharp knife. Cut off the grille section as illustrated.

Illustration A, B, C and D
















- Take the front engine block heater socket's components from the kit and assemble the front engine block heater socket as illustrated.

Illustration E




- Cut off the small lug on the rear mounting plate.








- Disconnect the three clips from the air baffle. Pull the air baffle downwards slightly to facilitate access.
