Changes Implemented Up to and Including September 2007

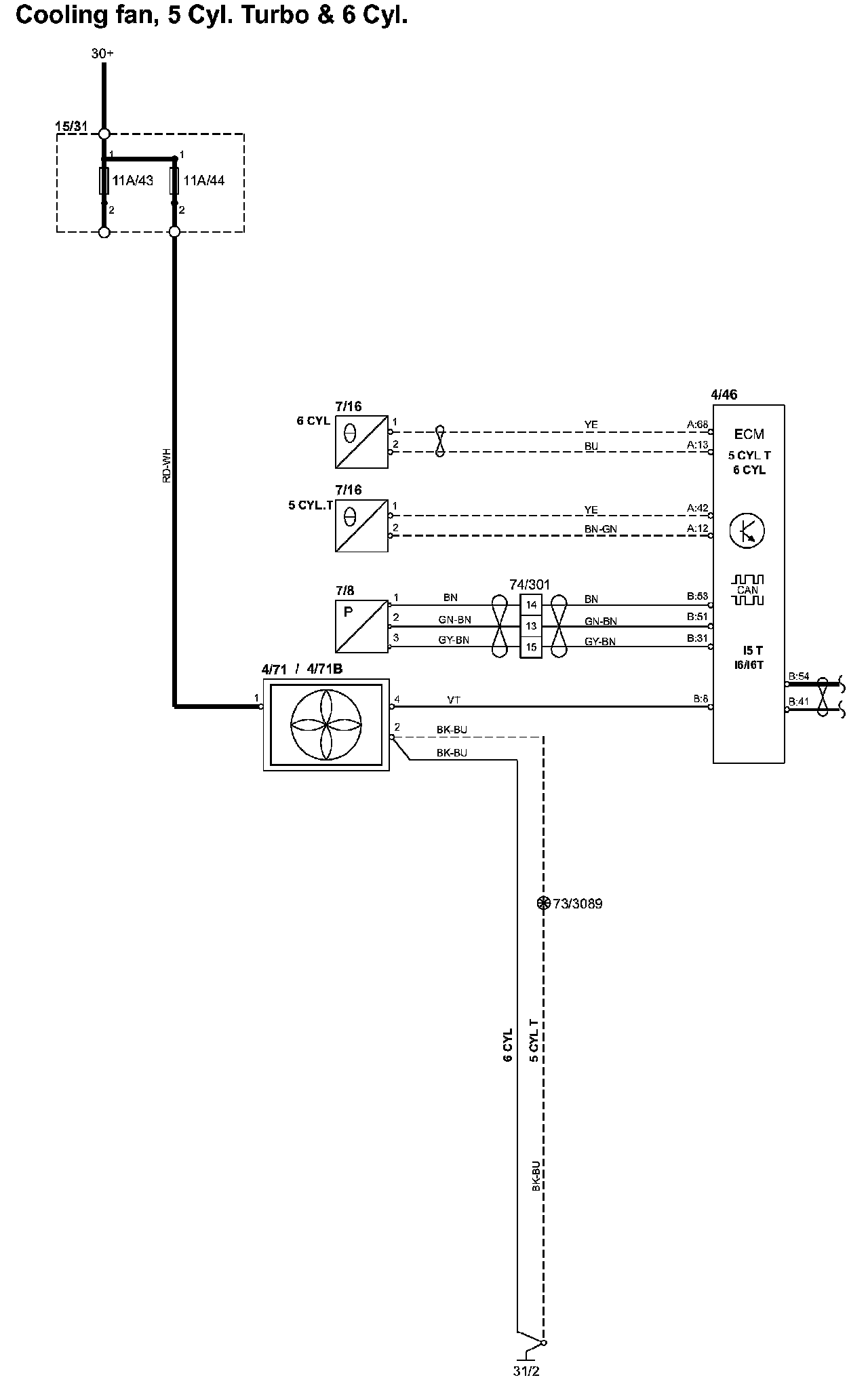

Cooling Fan


Cooling Fan:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
