Home >> Volvo >> 2008 >> S80 AWD L6-3.0L Turbo VIN 99 B6304T2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Supply >> Changes Implemented Up to and Including September 2007

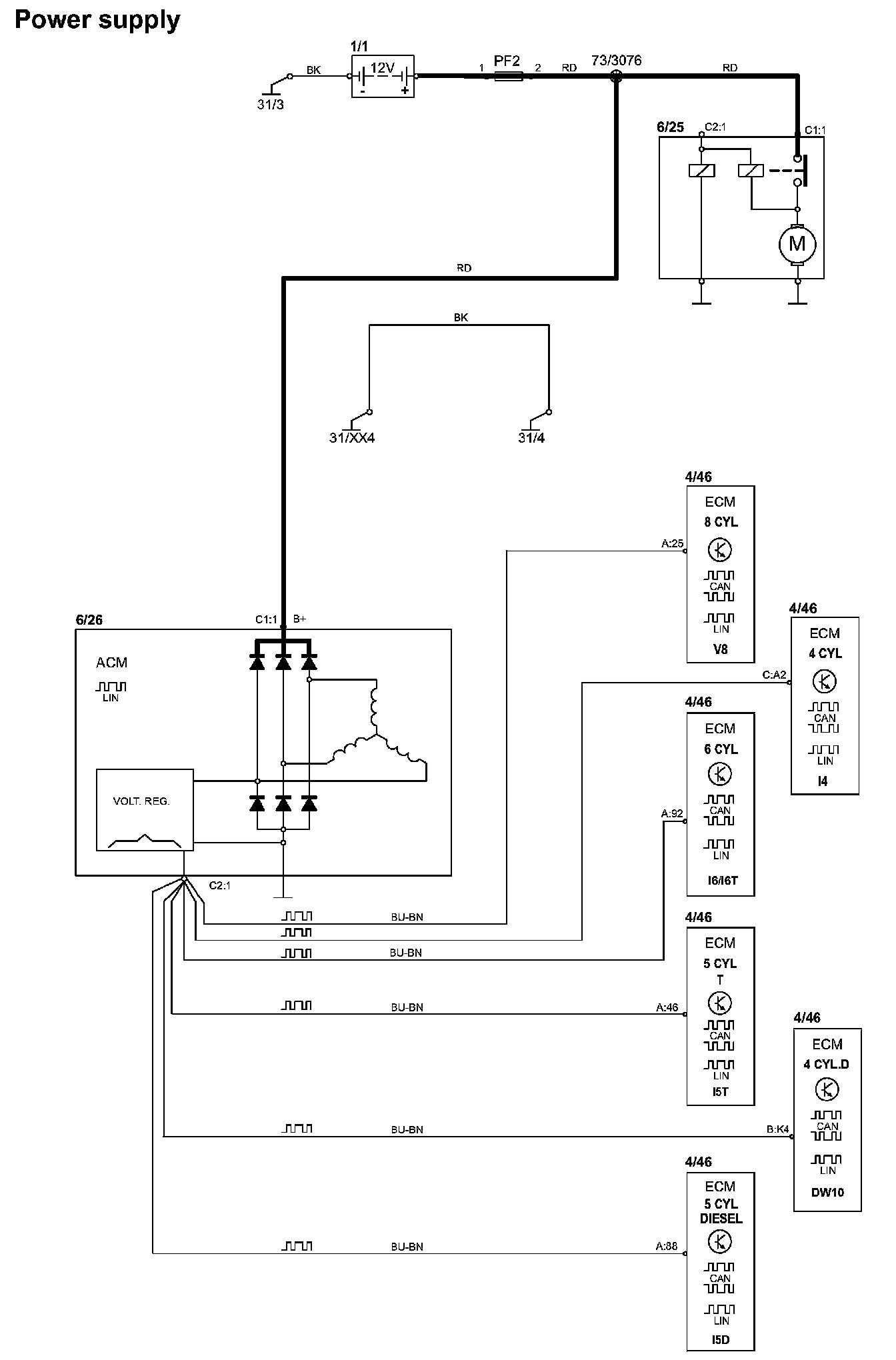

Changes Implemented Up to and Including September 2007



Power Supply


Power Supply:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
